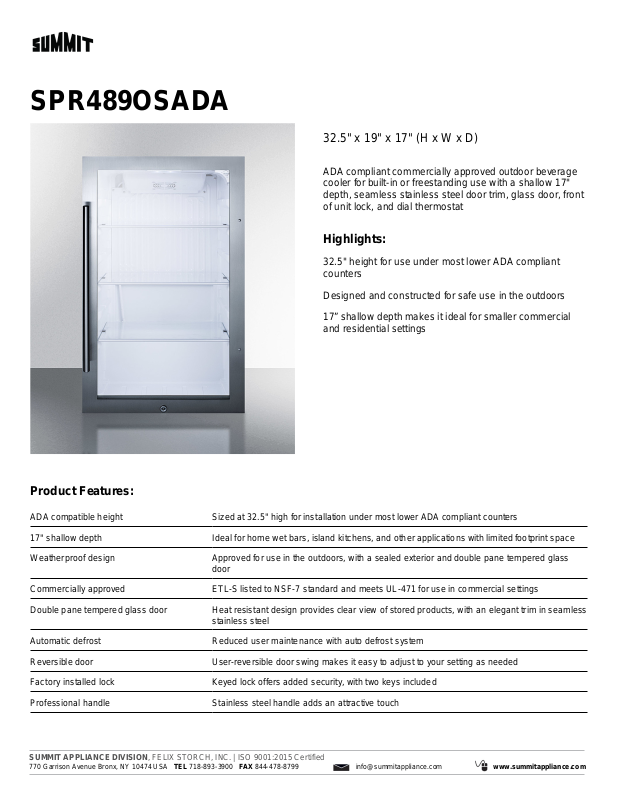

Page 1
SPR489OSADA
32.5" x 19" x 17" (H x W x D)
ADA compliant commercially approved outdoor beverage
cooler for built-in or freestanding use with a shallow 17"
depth, seamless stainless steel door trim, glass door, front
of unit lock, and dial thermostat
Highlights:
32.5" height for use under most lower ADA compliant
counters
Designed and constructed for safe use in the outdoors
17” shallow depth makes it ideal for smaller commercial
and residential settings
Product Features:
ADA compatible height Sized at 32.5" high for installation under most lower ADA compliant counters
17" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space
Weatherproof design Approved for use in the outdoors, with a sealed exterior and double pane tempered glass
door
Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Double pane tempered glass door Heat resistant design provides clear view of stored products, with an elegant trim in seamless
stainless steel
Automatic defrost Reduced user maintenance with auto defrost system
Reversible door User-reversible door swing makes it easy to adjust to your setting as needed
Factory installed lock Keyed lock offers added security, with two keys included
Professional handle Stainless steel handle adds an attractive touch
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SPR489OSADA Specifications:
Overview
Height of Cabinet 32.5" (83 cm)
Width 19.0" (48 cm)
Depth 17.0" (43 cm)
Depth with Handle 18.63" (47 cm)
Depth with door at 90° 34.75" (88 cm)
Capacity 3.13 cu.ft. (89 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 285.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 70.0 lbs. (32 kg)
Shipping Weight 75.0 lbs. (34 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 50ºF
Dimensions
Interior Height 29.0" (74 cm)
Interior Width 16.0" (41 cm)
Interior Depth 12.75" (32 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 6.25" (16 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
