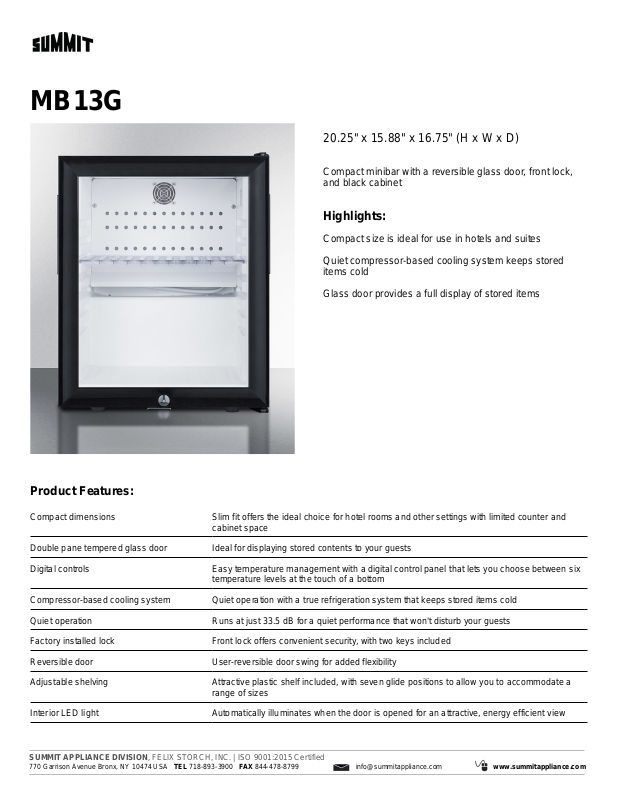

Page 1
MB13G
20.25" x 15.88" x 16.75" (H x W x D)
Compact minibar with a reversible glass door, front lock,
and black cabinet
Highlights:
Compact size is ideal for use in hotels and suites
Quiet compressor-based cooling system keeps stored
items cold
Glass door provides a full display of stored items
Product Features:
Compact dimensions Slim fit offers the ideal choice for hotel rooms and other settings with limited counter and
cabinet space
Double pane tempered glass door Ideal for displaying stored contents to your guests
Digital controls Easy temperature management with a digital control panel that lets you choose between six
temperature levels at the touch of a bottom
Compressor-based cooling system Quiet operation with a true refrigeration system that keeps stored items cold
Quiet operation Runs at just 33.5 dB for a quiet performance that won't disturb your guests
Factory installed lock Front lock offers convenient security, with two keys included
Reversible door User-reversible door swing for added flexibility
Adjustable shelving Attractive plastic shelf included, with seven glide positions to allow you to accommodate a
range of sizes
Interior LED light Automatically illuminates when the door is opened for an attractive, energy efficient view
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
MB13G Specifications:
Overview
Height of Cabinet 20.25" (51 cm)
Width 15.88" (40 cm)
Depth 16.75" (43 cm)
Depth with door at 90° 31.5" (80 cm)
Capacity 0.9 cu.ft. (25 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical
Safety
Energy Usage/Year 259.0kWh/year
Amps 0.4
Voltage/Frequency 115 V AC/60 Hz
Weight 36.0 lbs. (16 kg)
Shipping Weight 40.0 lbs. (18 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Plastic
Shelf Qty 1
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 106.0
Low Side PSI 55.0
Interior Light Yes
Dimensions
Interior Height 15.88" (40 cm)
Interior Width 12.25" (31 cm)
Interior Depth 8.5" (22 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 12.25" (31 cm)
ETL-C
Compressor Step Depth 1.5" (4 cm)
