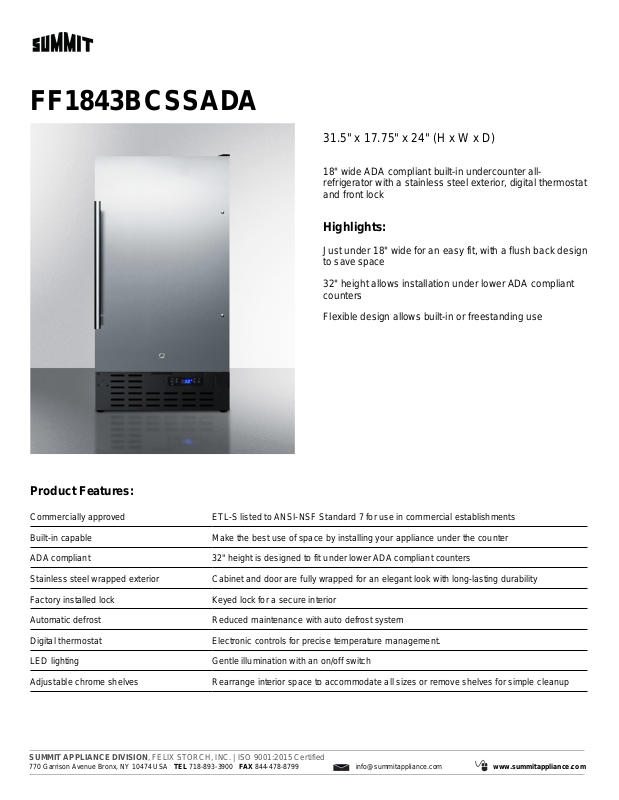

Page 1
FF1843BCSSADA
31.5" x 17.75" x 24" (H x W x D)
18" wide ADA compliant built-in undercounter allrefrigerator with a stainless steel exterior, digital thermostat
and front lock
Highlights:
Just under 18" wide for an easy fit, with a flush back design
to save space
32" height allows installation under lower ADA compliant
counters
Flexible design allows built-in or freestanding use
Product Features:
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Built-in capable Make the best use of space by installing your appliance under the counter
ADA compliant 32" height is designed to fit under lower ADA compliant counters
Stainless steel wrapped exterior Cabinet and door are fully wrapped for an elegant look with long-lasting durability
Factory installed lock Keyed lock for a secure interior
Automatic defrost Reduced maintenance with auto defrost system
Digital thermostat Electronic controls for precise temperature management.
LED lighting Gentle illumination with an on/off switch
Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
FF1843BCSSADA Specifications:
Overview
Height of Cabinet 31.5" (80 cm)
Width 17.75" (45 cm)
Width with Door Open 18.5" (47 cm)
Depth 24.0" (61 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 23.5" (60 cm)
ETL-C
Exterior
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
