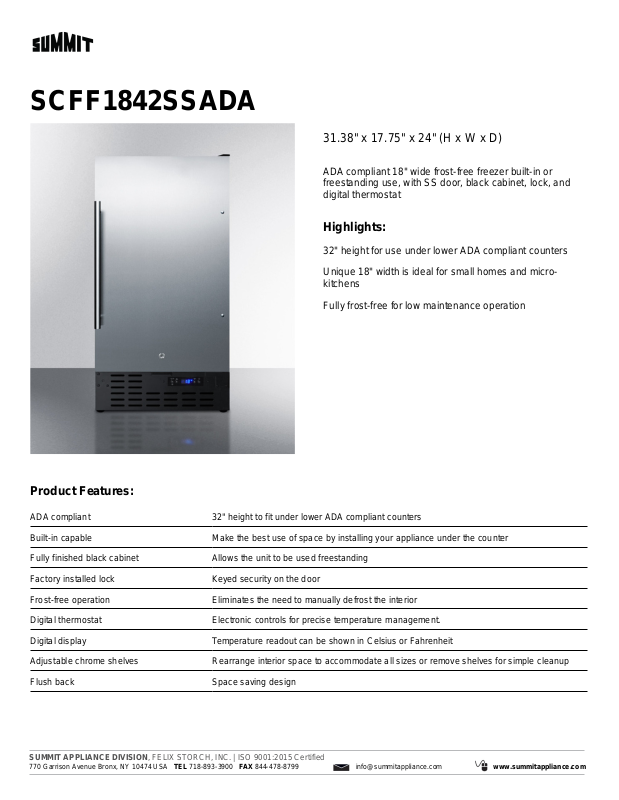

Page 1
SCFF1842SSADA
31.38" x 17.75" x 24" (H x W x D)
ADA compliant 18" wide frost-free freezer built-in or
freestanding use, with SS door, black cabinet, lock, and
digital thermostat
Highlights:
32" height for use under lower ADA compliant counters
Unique 18" width is ideal for small homes and micro-
kitchens
Fully frost-free for low maintenance operation
Product Features:
ADA compliant 32" height to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
Fully finished black cabinet Allows the unit to be used freestanding
Factory installed lock Keyed security on the door
Frost-free operation Eliminates the need to manually defrost the interior
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back Space saving design
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SCFF1842SSADA Specifications:
Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 24.0" (61 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical
Safety
Energy Usage/Year 378.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and
Refrigerant Type R134a
Refrigerant Amount 3.9 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 4
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
ETL-C
Exterior
Compressor Step Depth 4.5" (11 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
