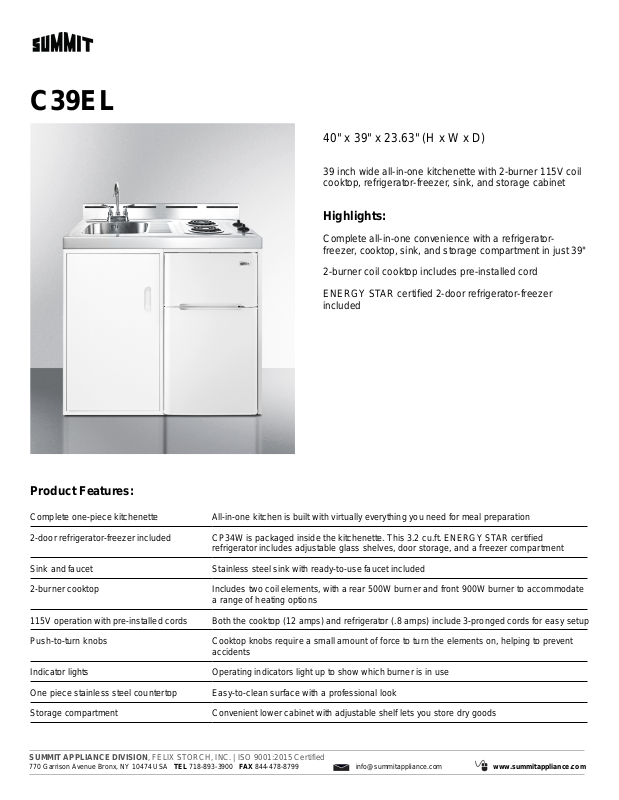

Page 1
C39EL
40" x 39" x 23.63" (H x W x D)
39 inch wide all-in-one kitchenette with 2-burner 115V coil
cooktop, refrigerator-freezer, sink, and storage cabinet
Highlights:
Complete all-in-one convenience with a refrigeratorfreezer, cooktop, sink, and storage compartment in just 39"
2-burner coil cooktop includes pre-installed cord
ENERGY STAR certified 2-door refrigerator-freezer
included
Product Features:
Complete one-piece kitchenette All-in-one kitchen is built with virtually everything you need for meal preparation
2-door refrigerator-freezer included CP34W is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified
refrigerator includes adjustable glass shelves, door storage, and a freezer compartment
Sink and faucet Stainless steel sink with ready-to-use faucet included
2-burner cooktop Includes two coil elements, with a rear 500W burner and front 900W burner to accommodate
a range of heating options
115V operation with pre-installed cords Both the cooktop (12 amps) and refrigerator (.8 amps) include 3-pronged cords for easy setup
Push-to-turn knobs Cooktop knobs require a small amount of force to turn the elements on, helping to prevent
accidents
Indicator lights Operating indicators light up to show which burner is in use
One piece stainless steel countertop Easy-to-clean surface with a professional look
Storage compartment Convenient lower cabinet with adjustable shelf lets you store dry goods
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
C39EL Specifications:
Overview
Height of Cabinet 40.0" (102 cm)
Width 39.0" (99 cm)
Depth 23.63" (60 cm)
Depth with door at 90° 41.38" (105 cm)
Capacity 2.93 cu.ft. (83 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical
Safety
Amps 14.0
Voltage/Frequency 115 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Kitchenette
Refrigerator Included CP34W
Refrigerator Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 1
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.16 oz.
High Side PSI 250.0
Low Side PSI 88.0
Cooking Type Coil Cooktop
Number of Burners 2
Cooktop Controls Dial
Sink Height 7.25" (18 cm)
Sink Width 12.0" (30 cm)
ETL-C
Sink Depth 12.0" (30 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
