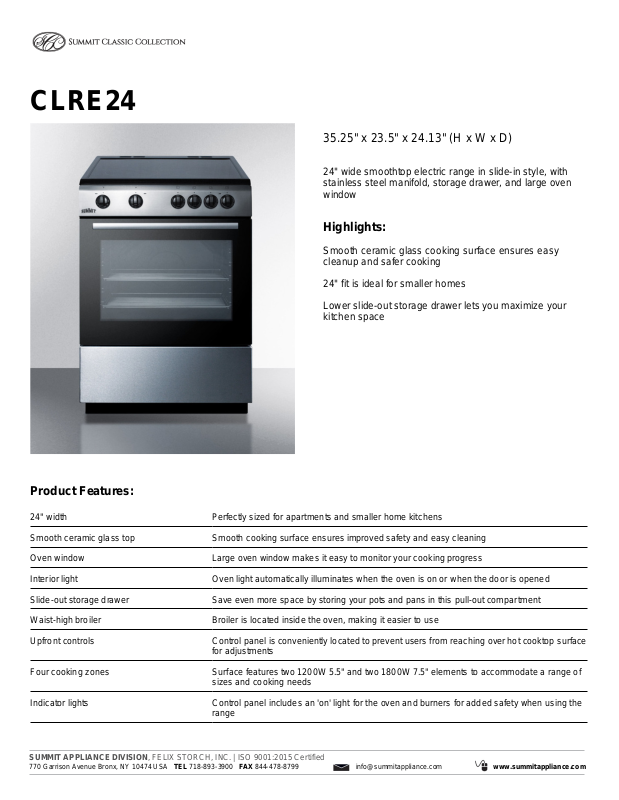

Page 1
CLRE24
35.25" x 23.5" x 24.13" (H x W x D)
24" wide smoothtop electric range in slide-in style, with
stainless steel manifold, storage drawer, and large oven
window
Highlights:
Smooth ceramic glass cooking surface ensures easy
cleanup and safer cooking
24" fit is ideal for smaller homes
Lower slide-out storage drawer lets you maximize your
kitchen space
Product Features:
24" width Perfectly sized for apartments and smaller home kitchens
Smooth ceramic glass top Smooth cooking surface ensures improved safety and easy cleaning
Oven window Large oven window makes it easy to monitor your cooking progress
Interior light Oven light automatically illuminates when the oven is on or when the door is opened
Slide-out storage drawer Save even more space by storing your pots and pans in this pull-out compartment
Waist-high broiler Broiler is located inside the oven, making it easier to use
Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface
for adjustments
Four cooking zones Surface features two 1200W 5.5" and two 1800W 7.5" elements to accommodate a range of
sizes and cooking needs
Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the
range
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
CLRE24 Specifications:
Overview
Height of Cabinet 35.25" (90 cm)
Width 23.5" (60 cm)
Depth 24.13" (61 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 41.25" (105 cm)
Door Black/SS
Cabinet Black
US Electrical Safety UL
Amps 40.0
Voltage/Frequency 220 V AC/60 Hz
Weight 135.0 lbs. (61 kg)
Shipping Weight 140.0 lbs. (64 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Range
Oven Capacity 2.4 cu.ft. (68 L)
Cooktop Surface Glass
Element Type Glasstop
Number of Elements 4
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 1800.0
Element #3 Size 5.5" (14 cm)
Element #3 Wattage 1200.0
Element #4 Size 7.0" (18 cm)
Element #4 Wattage 1800.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 18.5" (47 cm)
Oven Interior Depth 17.25" (44 cm)
Power Source 220V
Storage Compartment Yes
Broiler Location Inside Oven
