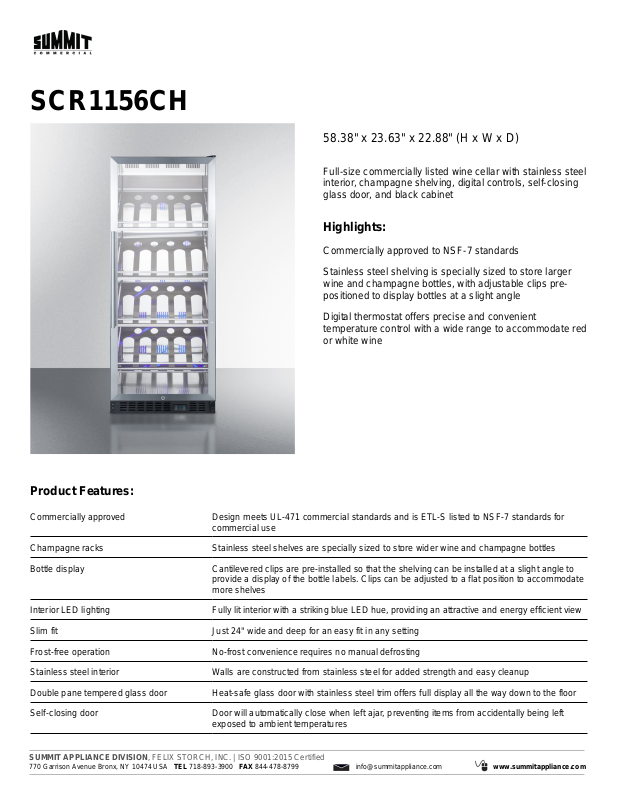

SCR1156CH
58.38" x 23.63" x 22.88" (H x W x D)
Full-size commercially listed wine cellar with stainless steel
interior, champagne shelving, digital controls, self-closing
glass door, and black cabinet
Highlights:
Commercially approved to NSF-7 standards
Stainless steel shelving is specially sized to store larger
wine and champagne bottles, with adjustable clips prepositioned to display bottles at a slight angle
Digital thermostat offers precise and convenient
temperature control with a wide range to accommodate red
or white wine
Product Features:
Commercially approved Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for
commercial use
Champagne racks Stainless steel shelves are specially sized to store wider wine and champagne bottles
Bottle display Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to
provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate
more shelves
Interior LED lighting Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Slim fit Just 24" wide and deep for an easy fit in any setting
Frost-free operation No-frost convenience requires no manual defrosting
Stainless steel interior Walls are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Self-closing door Door will automatically close when left ajar, preventing items from accidentally being left
exposed to ambient temperatures
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SCR1156CH Specifications:
Overview
Height of Cabinet 58.38" (148 cm)
Width 23.63" (60 cm)
Depth 22.88" (58 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 64.38" (164 cm)
Capacity 11.0 cu.ft. (311 L)
Bottles 25 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 200.0 lbs. (91 kg)
Shipping Weight 220.0 lbs. (100 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Shelf Type Steel
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and
Refrigerant Type R600a
Refrigerant Amount 1.66 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 50.0" (127 cm)
Interior Width 1 20.0" (51 cm)
Interior Depth 1 16.5" (42 cm)
Temperature Range 36 to 68ºF
ETL-C
Exterior
Interior Height 2 4.75" (12 cm)
Interior Width 2 20.0" (51 cm)
Interior Depth 2 4.5" (11 cm)
