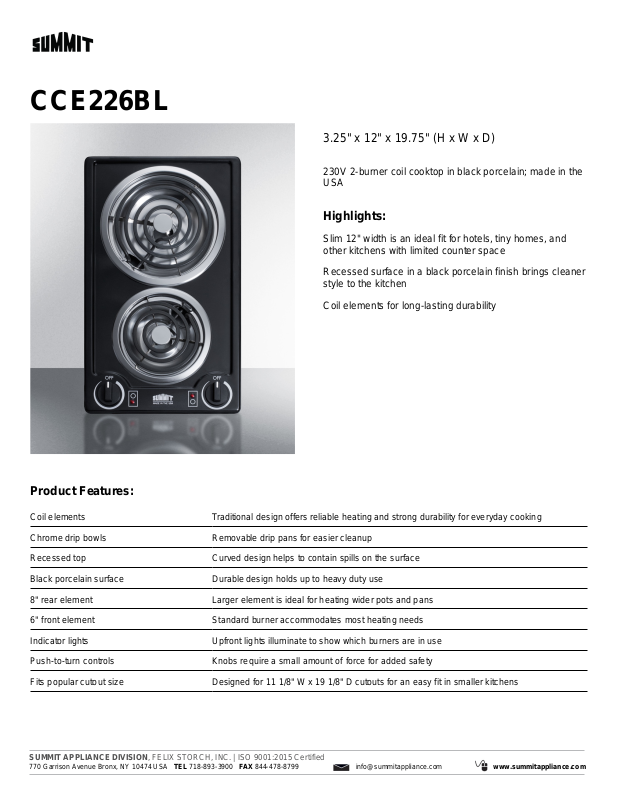

Page 1
CCE226BL
3.25" x 12" x 19.75" (H x W x D)
230V 2-burner coil cooktop in black porcelain; made in the
USA
Highlights:
Slim 12" width is an ideal fit for hotels, tiny homes, and
other kitchens with limited counter space
Recessed surface in a black porcelain finish brings cleaner
style to the kitchen
Coil elements for long-lasting durability
Product Features:
Coil elements Traditional design offers reliable heating and strong durability for everyday cooking
Chrome drip bowls Removable drip pans for easier cleanup
Recessed top Curved design helps to contain spills on the surface
Black porcelain surface Durable design holds up to heavy duty use
8" rear element Larger element is ideal for heating wider pots and pans
6" front element Standard burner accommodates most heating needs
Indicator lights Upfront lights illuminate to show which burners are in use
Push-to-turn controls Knobs require a small amount of force for added safety
Fits popular cutout size Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
CCE226BL Specifications:
Overview
Height of Cabinet 3.25" (8 cm)
Width 12.0" (30 cm)
Depth 19.75" (50 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 7.0
Voltage/Frequency 230 V AC/60 Hz
Weight 14.0 lbs. (6 kg)
Shipping Weight 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
Electric Cooktop
Surface Porcelain
Element Type Coils
Number of Elements 2
controls Dial
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 11.13" (28 cm)
Countertop Cutout Depth 19.13" (49 cm)
Power Source 230V
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
