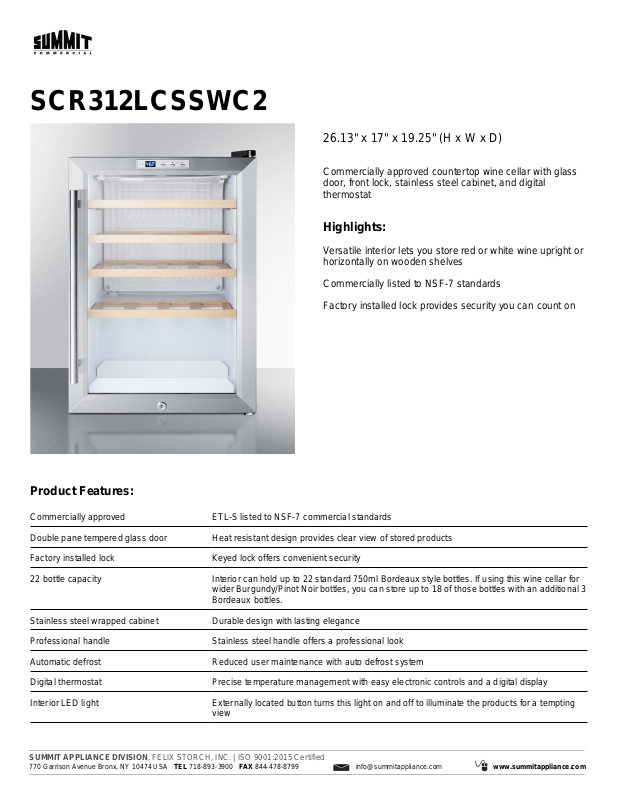

Page 1
SCR312LCSSWC2
26.13" x 17" x 19.25" (H x W x D)
Commercially approved countertop wine cellar with glass
door, front lock, stainless steel cabinet, and digital
thermostat
Highlights:
Versatile interior lets you store red or white wine upright or
horizontally on wooden shelves
Commercially listed to NSF-7 standards
Factory installed lock provides security you can count on
Product Features:
Commercially approved ETL-S listed to NSF-7 commercial standards
Double pane tempered glass door Heat resistant design provides clear view of stored products
Factory installed lock Keyed lock offers convenient security
22 bottle capacity Interior can hold up to 22 standard 750ml Bordeaux style bottles. If using this wine cellar for
wider Burgundy/Pinot Noir bottles, you can store up to 18 of those bottles with an additional 3
Bordeaux bottles.
Stainless steel wrapped cabinet Durable design with lasting elegance
Professional handle Stainless steel handle offers a professional look
Automatic defrost Reduced user maintenance with auto defrost system
Digital thermostat Precise temperature management with easy electronic controls and a digital display
Interior LED light Externally located button turns this light on and off to illuminate the products for a tempting
view
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SCR312LCSSWC2 Specifications:
Overview
Height of Cabinet 25.5" (65 cm)
Height to Hinge Cap 26.13" (66 cm)
Width 17.0" (43 cm)
Depth 19.25" (49 cm)
Depth with Handle 21.0" (53 cm)
Depth with door at 90° 35.25" (90 cm)
Capacity 2.5 cu.ft. (71 L)
Bottles 22 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Shipping Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 1.82 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 1 20.25" (51 cm)
Interior Width 1 13.5" (34 cm)
Interior Depth 1 14.75" (37 cm)
Compressor Step Height 7.5" (19 cm)
ETL-C
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 5.25" (13 cm)
Temperature Range 40º to 72ºF
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
