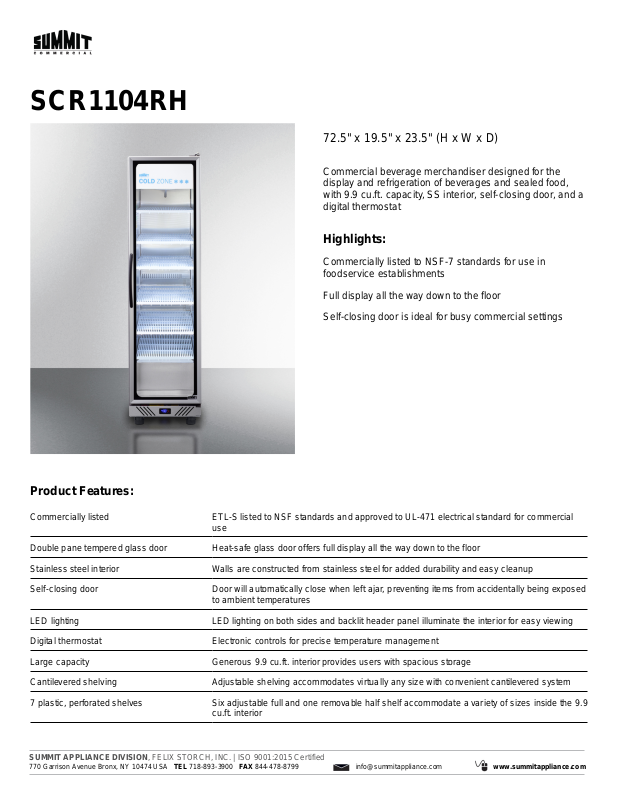

Page 1
SCR1104RH
72.5" x 19.5" x 23.5" (H x W x D)
Commercial beverage merchandiser designed for the
display and refrigeration of beverages and sealed food,
with 9.9 cu.ft. capacity, SS interior, self-closing door, and a
digital thermostat
Highlights:
Commercially listed to NSF-7 standards for use in
foodservice establishments
Full display all the way down to the floor
Self-closing door is ideal for busy commercial settings
Product Features:
Commercially listed ETL-S listed to NSF standards and approved to UL-471 electrical standard for commercial
use
Double pane tempered glass door Heat-safe glass door offers full display all the way down to the floor
Stainless steel interior Walls are constructed from stainless steel for added durability and easy cleanup
Self-closing door Door will automatically close when left ajar, preventing items from accidentally being exposed
to ambient temperatures
LED lighting LED lighting on both sides and backlit header panel illuminate the interior for easy viewing
Digital thermostat Electronic controls for precise temperature management
Large capacity Generous 9.9 cu.ft. interior provides users with spacious storage
Cantilevered shelving Adjustable shelving accommodates virtually any size with convenient cantilevered system
7 plastic, perforated shelves Six adjustable full and one removable half shelf accommodate a variety of sizes inside the 9.9
cu.ft. interior
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SCR1104RH Specifications:
Overview
Height of Cabinet 71.75" (182 cm)
Height to Hinge Cap 72.5" (184 cm)
Width 19.5" (50 cm)
Depth 23.5" (60 cm)
Depth with Handle 26.0" (66 cm)
Depth with door at 90° 41.5" (105 cm)
Capacity 9.9 cu.ft. (280 L)
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Amps 2.6
Voltage/Frequency 115 V AC/60 Hz
Weight 165.0 lbs. (75 kg)
Shipping Weight 175.0 lbs. (79 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076133
Refrigerator Features
Door Swing RHD
Reversible No
Shelf Type Plastic
Shelf Qty 7
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 1.58oz.
High Side PSI 245.0
Low Side PSI 130.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36°F to 43°F
Dimensions
Interior Height 57.0" (145 cm)
ETL-C
Interior Width 16.38" (42 cm)
Interior Depth 15.0" (38 cm)
Compressor Step Height 9.0" (23 cm)
Compressor Step Width 16.38" (42 cm)
Compressor Step Depth 9.0" (23 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
