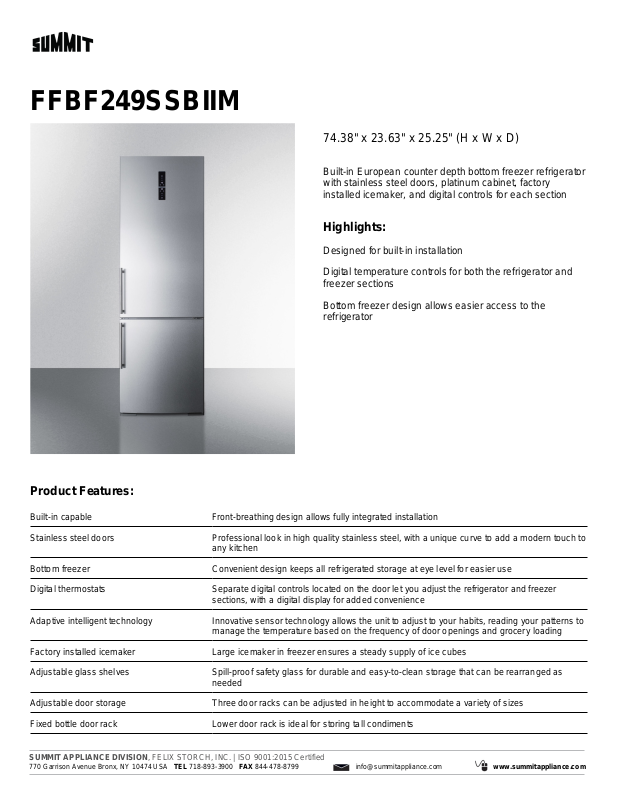

Page 1
FFBF249SSBIIM
74.38" x 23.63" x 25.25" (H x W x D)
Built-in European counter depth bottom freezer refrigerator
with stainless steel doors, platinum cabinet, factory
installed icemaker, and digital controls for each section
Highlights:
Designed for built-in installation
Digital temperature controls for both the refrigerator and
freezer sections
Bottom freezer design allows easier access to the
refrigerator
Product Features:
Built-in capable Front-breathing design allows fully integrated installation
Stainless steel doors Professional look in high quality stainless steel, with a unique curve to add a modern touch to
any kitchen
Bottom freezer Convenient design keeps all refrigerated storage at eye level for easier use
Digital thermostats Separate digital controls located on the door let you adjust the refrigerator and freezer
sections, with a digital display for added convenience
Adaptive intelligent technology Innovative sensor technology allows the unit to adjust to your habits, reading your patterns to
manage the temperature based on the frequency of door openings and grocery loading
Factory installed icemaker Large icemaker in freezer ensures a steady supply of ice cubes
Adjustable glass shelves Spill-proof safety glass for durable and easy-to-clean storage that can be rearranged as
needed
Adjustable door storage Three door racks can be adjusted in height to accommodate a variety of sizes
Fixed bottle door rack Lower door rack is ideal for storing tall condiments
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
FFBF249SSBIIM Specifications:
Overview
Height of Cabinet 73.88" (188 cm)
Height to Hinge Cap 74.38" (189 cm)
Width 23.63" (60 cm)
Width with Door Open 24.63" (63 cm)
Depth 25.25" (64 cm)
Depth with Handle 27.25" (69 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 11.6 cu.ft. (328 L)
Defrost Type Frost-
Door Stainless Steel
Cabinet Platinum
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 464.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 175.0 lbs. (79 kg)
Shipping Weight 200.0 lbs. (91 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 4
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior
Height
Refrigerator - Interior
Width
Refrigerator - Interior
Depth
Refrigerator - Capacity 8.14 cu.ft
Free/Automatic
Reversible
38.5" (98 cm)
19.25" (49 cm)
17.5" (44 cm)
Refrigerator - Shelf Type Glass and
Refrigerator - Shelf Qty 3
Refrigerator - Full Door
Shelves
Refrigerator - Temperature
Range
Freezer - Interior Height 24.0" (61 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 3.46 cu.ft
Thermostat Type Digital
Fan Type Interior and
Refrigerant Type R134a
Refrigerant Amount 5.11 oz.
High Side PSI 215.0
Low Side PSI 36.0
Level Legs 2
Condensor Location Rear of Unit
Freezer - Temperature
Range
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 16.5" (42 cm)
Compressor Step Depth 5.0" (13 cm)
Scalloped
34º to 46ºF
Exterior
-6º to 6ºF
3
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
