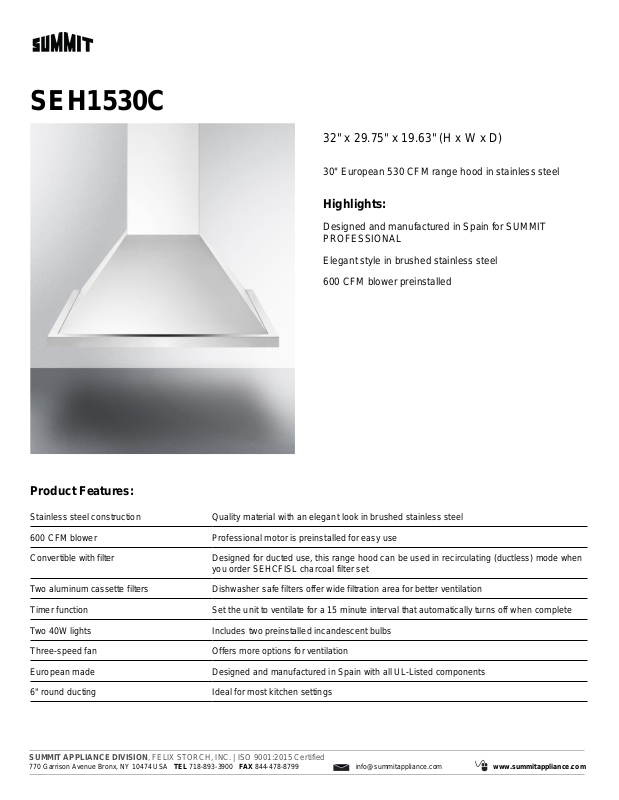

Page 1
SEH1530C
32" x 29.75" x 19.63" (H x W x D)
30" European 530 CFM range hood in stainless steel
Highlights:
Designed and manufactured in Spain for SUMMIT
PROFESSIONAL
Elegant style in brushed stainless steel
600 CFM blower preinstalled
Product Features:
Stainless steel construction Quality material with an elegant look in brushed stainless steel
600 CFM blower Professional motor is preinstalled for easy use
Convertible with filter Designed for ducted use, this range hood can be used in recirculating (ductless) mode when
you order SEHCFISL charcoal filter set
Two aluminum cassette filters Dishwasher safe filters offer wide filtration area for better ventilation
Timer function Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
Two 40W lights Includes two preinstalled incandescent bulbs
Three-speed fan Offers more options for ventilation
European made Designed and manufactured in Spain with all UL-Listed components
6" round ducting Ideal for most kitchen settings
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SEH1530C Specifications:
Overview
Height of Cabinet 32.0" (81 cm)
Width 29.75" (76 cm)
Depth 19.63" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical
Safety
Weight 30.0 lbs. (14 kg)
Shipping Weight 60.0 lbs. (27 kg)
Parts & Labor
Warranty
Range Hood
Installation Wall-Mounted
Venting Convertible w/ Filter
Controls Slide
Light Yes
Number of Lights 2
Light Type Halogen
Number of Fan
Speeds
Maximum Air
Movement
Sone Rating 11
Minimum Height 31.0" (79 cm)
Maximum Height 50.0" (127 cm)
Duct Shape 6" Round
1 Year
600.0 CFM
ULC
Set
3
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
