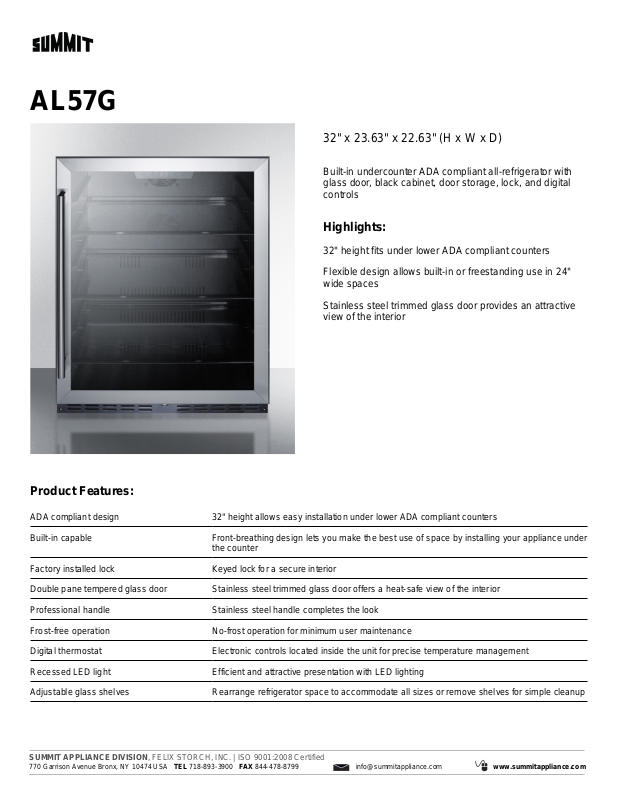

Page 1
AL57G
32" x 23.63" x 22.63" (H x W x D)
Built-in undercounter ADA compliant all-refrigerator with
glass door, black cabinet, door storage, lock, and digital
controls
Highlights:
32" height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"
wide spaces
Stainless steel trimmed glass door provides an attractive
view of the interior
Product Features:
ADA compliant design 32" height allows easy installation under lower ADA compliant counters
Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under
the counter
Factory installed lock Keyed lock for a secure interior
Double pane tempered glass door Stainless steel trimmed glass door offers a heat-safe view of the interior
Professional handle Stainless steel handle completes the look
Frost-free operation No-frost operation for minimum user maintenance
Digital thermostat Electronic controls located inside the unit for precise temperature management
Recessed LED light Efficient and attractive presentation with LED lighting
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
AL57G Specifications:
Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
ETL-C
Exterior
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
