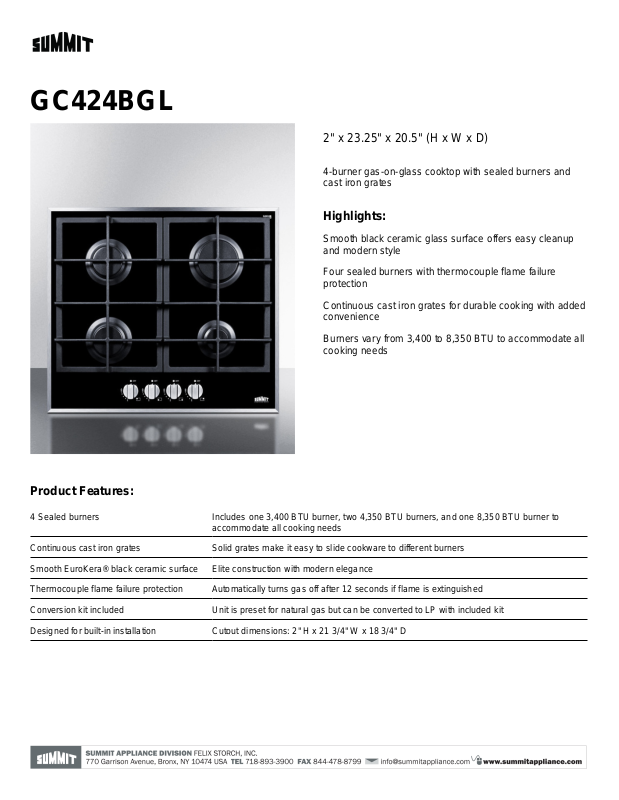

Page 1
GC424BGL
2" x 23.25" x 20.5" (H x W x D)
4-burner gas-on-glass cooktop with sealed burners and
cast iron grates
Highlights:
Smooth black ceramic glass surface offers easy cleanup
and modern style
Four sealed burners with thermocouple flame failure
protection
Continuous cast iron grates for durable cooking with added
convenience
Burners vary from 3,400 to 8,350 BTU to accommodate all
cooking needs
Product Features:
4 Sealed burners Includes one 3,400 BTU burner, two 4,350 BTU burners, and one 8,350 BTU burner to
accommodate all cooking needs
Continuous cast iron grates Solid grates make it easy to slide cookware to different burners
Smooth EuroKera® black ceramic surface Elite construction with modern elegance
Thermocouple flame failure protection Automatically turns gas off after 12 seconds if flame is extinguished
Conversion kit included Unit is preset for natural gas but can be converted to LP with included kit
Designed for built-in installation Cutout dimensions: 2" H x 21 3/4" W x 18 3/4" D
Page 2
GC424BGL Specifications:
Overview
Height 2.0"
Width 23.25"
Depth 20.5"
Cabinet Black
US Electrical Safety UL
Canadian Electrical
Safety
Voltage/Frequency 115 V AC/60 Hz
Weight 24.0 lbs.
Shipping Weight 31.0 lbs.
Parts & Labor Warranty 1 Year
Gas Cooktop
Ignition Spark
LP Convertible Yes
Number of Burners 4
Controls Dial
Surface Glass
Grate Material Cast Iron
Cutout Height 2.0"
Cutout Width 21.75"
Cutout Depth 18.75"
Burner #1 BTU 4350.0
Burner #2 BTU 3400.0
Burner #3 BTU 8350.0
Burner #4 BTU 4350.0
ULC
