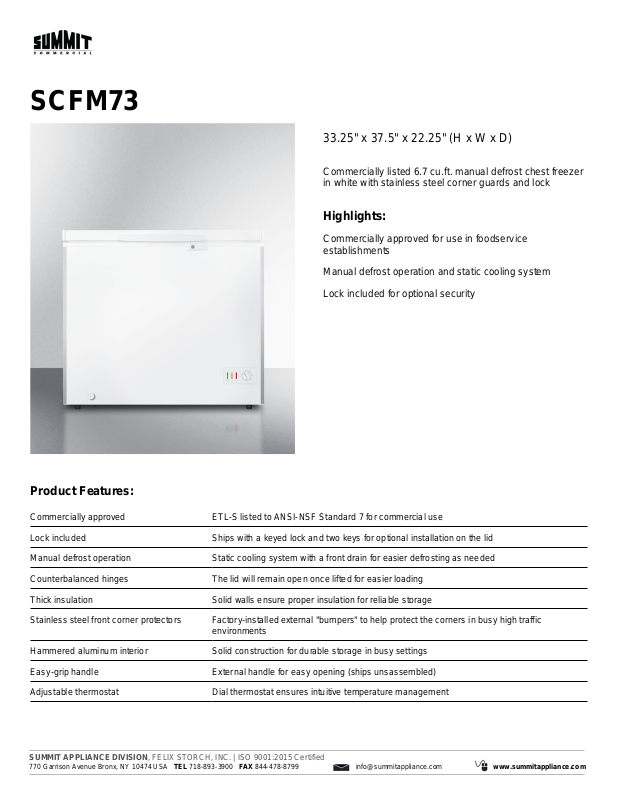

Page 1
SCFM73
33.25" x 37.5" x 22.25" (H x W x D)
Commercially listed 6.7 cu.ft. manual defrost chest freezer
in white with stainless steel corner guards and lock
Highlights:
Commercially approved for use in foodservice
establishments
Manual defrost operation and static cooling system
Lock included for optional security
Product Features:
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for commercial use
Lock included Ships with a keyed lock and two keys for optional installation on the lid
Manual defrost operation Static cooling system with a front drain for easier defrosting as needed
Counterbalanced hinges The lid will remain open once lifted for easier loading
Thick insulation Solid walls ensure proper insulation for reliable storage
Stainless steel front corner protectors Factory-installed external "bumpers" to help protect the corners in busy high traffic
environments
Hammered aluminum interior Solid construction for durable storage in busy settings
Easy-grip handle External handle for easy opening (ships unsassembled)
Adjustable thermostat Dial thermostat ensures intuitive temperature management
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SCFM73 Specifications:
Overview
Height of Cabinet 33.25" (84 cm)
Width 37.5" (95 cm)
Depth 22.25" (57 cm)
Depth with Handle 24.0" (61 cm)
Capacity 6.7 cu.ft. (190 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 86.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101080833
Freezer
Door Swing Lift-Up
Interior Height 26.0" (66 cm)
Interior Width 32.0" (81 cm)
Interior Depth 15.0" (38 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 300.0
Low Side PSI 130.0
Compressor Step Height 8.75" (22 cm)
Compressor Step Width 7.75" (20 cm)
Compressor Step Depth 15.0" (38 cm)
Temperature Range -10 to -26ºC
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
