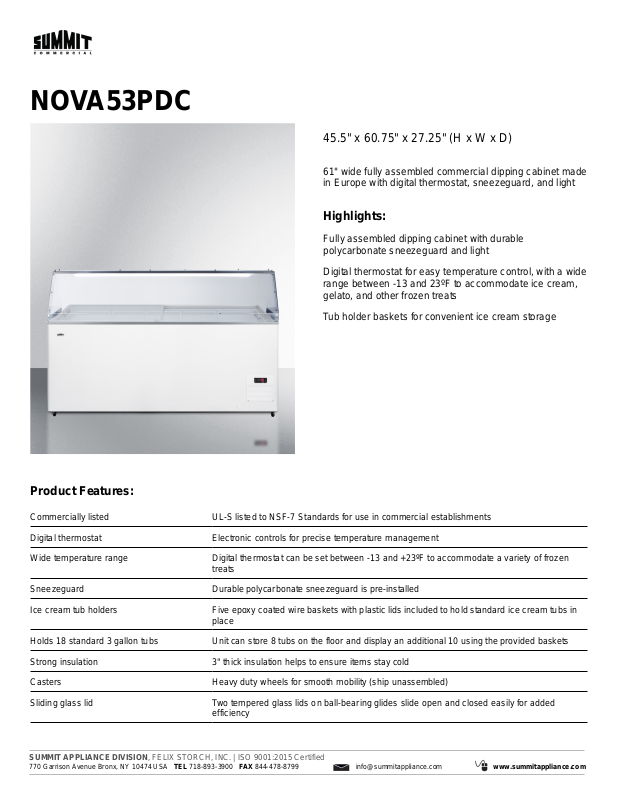

Page 1
NOVA53PDC
45.5" x 60.75" x 27.25" (H x W x D)
61" wide fully assembled commercial dipping cabinet made
in Europe with digital thermostat, sneezeguard, and light
Highlights:
Fully assembled dipping cabinet with durable
polycarbonate sneezeguard and light
Digital thermostat for easy temperature control, with a wide
range between -13 and 23ºF to accommodate ice cream,
gelato, and other frozen treats
Tub holder baskets for convenient ice cream storage
Product Features:
Commercially listed UL-S listed to NSF-7 Standards for use in commercial establishments
Digital thermostat Electronic controls for precise temperature management
Wide temperature range Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen
treats
Sneezeguard Durable polycarbonate sneezeguard is pre-installed
Ice cream tub holders Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in
place
Holds 18 standard 3 gallon tubs Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
Strong insulation 3" thick insulation helps to ensure items stay cold
Casters Heavy duty wheels for smooth mobility (ship unassembled)
Sliding glass lid Two tempered glass lids on ball-bearing glides slide open and closed easily for added
efficiency
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
NOVA53PDC Specifications:
Overview
Height of Cabinet 45.5" (116 cm)
Width 60.75" (154 cm)
Depth 27.25" (69 cm)
Capacity 17.8 cu.ft. (504 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical
Safety
Sanitation UL-S
Amps 4.2
Voltage/Frequency 115 V AC/60 Hz
Weight 190.0 lbs. (86 kg)
Shipping Weight 210.0 lbs. (95 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101060187
Freezer
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 54.5" (138 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.17 oz.
High Side PSI 345.0
Low Side PSI 140.0
Wheels 4
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23ºF
ULC
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
