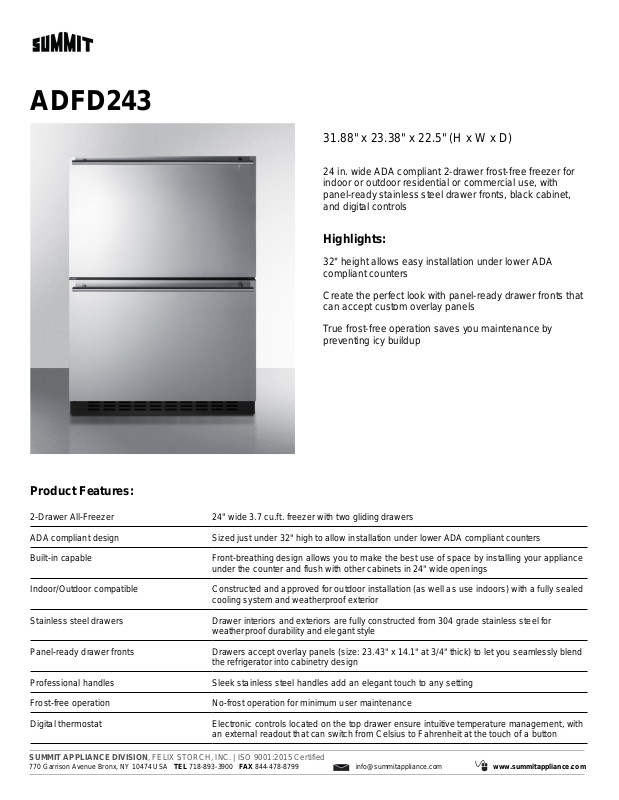

Page 1
ADFD243
31.88" x 23.38" x 22.5" (H x W x D)
24 in. wide ADA compliant 2-drawer frost-free freezer for
indoor or outdoor residential or commercial use, with
panel-ready stainless steel drawer fronts, black cabinet,
and digital controls
Highlights:
32" height allows easy installation under lower ADA
compliant counters
Create the perfect look with panel-ready drawer fronts that
can accept custom overlay panels
True frost-free operation saves you maintenance by
preventing icy buildup
Product Features:
2-Drawer All-Freezer 24" wide 3.7 cu.ft. freezer with two gliding drawers
ADA compliant design Sized just under 32" high to allow installation under lower ADA compliant counters
Built-in capable Front-breathing design allows you to make the best use of space by installing your appliance
under the counter and flush with other cabinets in 24" wide openings
Indoor/Outdoor compatible Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed
cooling system and weatherproof exterior
Stainless steel drawers Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for
weatherproof durability and elegant style
Panel-ready drawer fronts Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend
the refrigerator into cabinetry design
Professional handles Sleek stainless steel handles add an elegant touch to any setting
Frost-free operation No-frost operation for minimum user maintenance
Digital thermostat Electronic controls located on the top drawer ensure intuitive temperature management, with
an external readout that can switch from Celsius to Fahrenheit at the touch of a button
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
ADFD243 Specifications:
Overview
Height of Cabinet 31.88" (81 cm)
Width 23.38" (59 cm)
Depth 22.5" (57 cm)
Depth with Handle 23.88" (61 cm)
Depth with door at
90°
Capacity 3.71 cu.ft. (105 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-
Cabinet Black
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Energy Usage/Year 395.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Shipping Weight 138.0 lbs. (63 kg)
Parts & Labor
Warranty
Compressor
Warranty
UPC 761101079561
Freezer
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 2
Interior Height -
Drawer 1
Interior Width -
Drawer 1
34.25" (87 cm)
Ready
ETL-C
1 Year
5 Years
8.0" (20 cm)
17.0" (43 cm)
Interior Depth Drawer 1
Interior Height Drawer 2
Interior Width Drawer 2
Interior Depth Drawer 2
Compressor Step
Height
Compressor Step
Width
Compressor Step
Depth
Temperature Range -11°F to 11°F
Sabbath Mode Yes
14.5" (37 cm)
8.0" (20 cm)
17.0" (43 cm)
14.5" (37 cm)
4.0" (10 cm)
17.0" (43 cm)
3.5" (9 cm)
