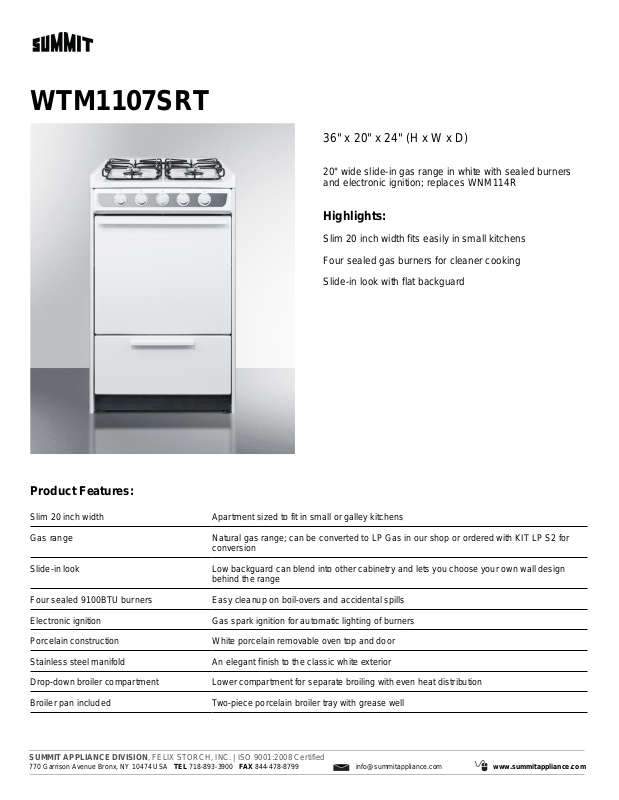

Summit WTM1107SRT Brochure

WTM1107SRT

36" x 20" x 24" (H x W x D)

20" wide slide-in gas range in white with sealed burners
and electronic ignition; replaces WNM114R

Highlights:

Slim 20 inch width fits easily in small kitchens
Four sealed gas burners for cleaner cooking
Slide-in look with flat backguard

Product Features:

Slim 20 inch width Apartment sized to fit in small or galley kitchens
Gas range Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP S2 for

conversion

Slide-in look Low backguard can blend into other cabinetry and lets you choose your own wall design

behind the range
Four sealed 9100BTU burners Easy cleanup on boil-overs and accidental spills
Electronic ignition Gas spark ignition for automatic lighting of burners
Porcelain construction White porcelain removable oven top and door
Stainless steel manifold An elegant finish to the classic white exterior
Drop-down broiler compartment Lower compartment for separate broiling with even heat distribution
Broiler pan included Two-piece porcelain broiler tray with grease well

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

WTM1107SRT Specifications:

Overview

Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Weight 140.0 lbs. (64 kg)
Shipping Weight 200.0 lbs. (91 kg)
Parts & Labor

Warranty

Gas Range

Ignition Spark
LP Convertible With KitLP

Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

1 Year

Accessory
