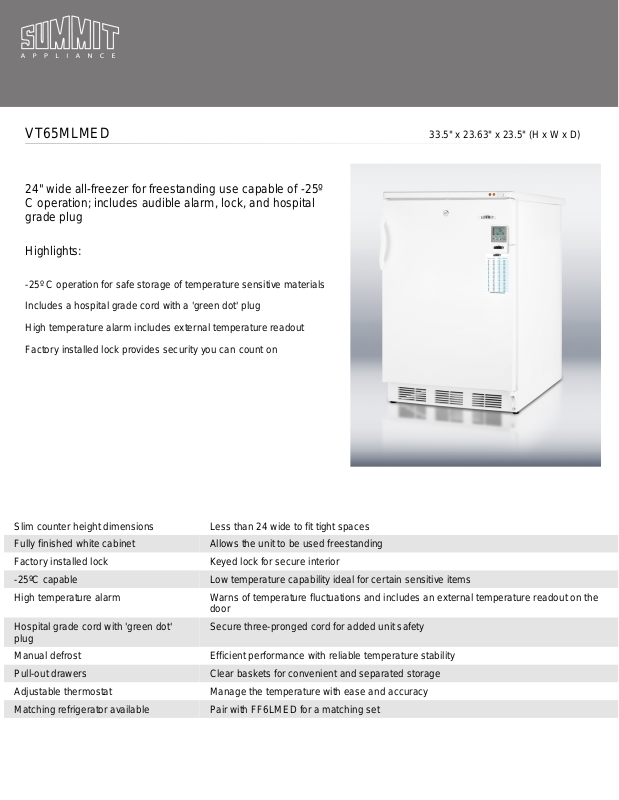

Summit VT65MLMED Instruction Manual

VT65MLMED 33.5" x 23.63" x 23.5" (H x W x D)

24" wide all-freezer for freestanding use capable of -25º
C operation; includes audible alarm, lock, and hospital
grade plug

Highlights:

-25º C operation for safe storage of temperature sensitive materials
Includes a hospital grade cord with a 'green dot' plug
High temperature alarm includes external temperature readout
Factory installed lock provides security you can count on

Slim counter height dimensions Less than 24 wide to fit tight spaces
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Keyed lock for secure interior

-25ºC capable Low temperature capability ideal for certain sensitive items
High temperature alarm Warns of temperature fluctuations and includes an external temperature readout on the

door

Hospital grade cord with 'green dot'
plug

Manual defrost Efficient performance with reliable temperature stability
Pull-out drawers Clear baskets for convenient and separated storage
Adjustable thermostat Manage the temperature with ease and accuracy
Matching refrigerator available Pair with FF6LMED for a matching set

Secure three-pronged cord for added unit safety

Specifications:

Height 33.5"
Width 23.63"
Depth 23.5"
Capacity 3.2 cu.ft.
Ext Depth with Handle 25.13"
Interior Height 1 24.25"
Interior Width 1 17.75"
Interior Depth 1 16.5"
Comp Step Height 6.5"
Comp Step Width 17.5"
Comp Step Depth 5.5"
Shipping Weight 102.0 lbs.
Amps 1.3
US Electrical Safety UL
Canadian Electrical Safety ULC
Reversible Factory Reversible
Door Swing RHD
Drawers true
Drawer Quantity 3
Temperature Range -20ºC to -30ºC
Depth with door at 90° 46.13"
Thermostat Type Dial
Freon Oz 2.7
Level Legs Quantity 2
High Side PSI 235.0
Low Side PSI 70.0
Refrigerant Type R404a
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
