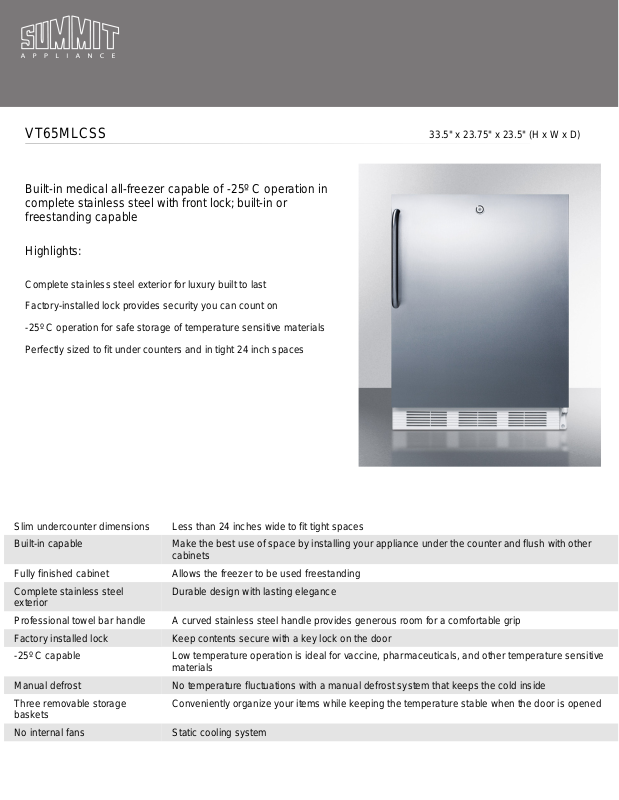

Summit VT65MLCSS Instruction Manual
VT65MLCSS 33.5" x 23.75" x 23.5" (H x W x D)
Built-in medical all-freezer capable of -25º C operation in
complete stainless steel with front lock; built-in or
freestanding capable
Highlights:
Complete stainless steel exterior for luxury built to last
Factory-installed lock provides security you can count on
-25º C operation for safe storage of temperature sensitive materials
Perfectly sized to fit under counters and in tight 24 inch spaces
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces
Built-in capable Make the best use of space by installing your appliance under the counter and flush with other
cabinets
Fully finished cabinet Allows the freezer to be used freestanding
Complete stainless steel
exterior
Professional towel bar handle A curved stainless steel handle provides generous room for a comfortable grip
Factory installed lock Keep contents secure with a key lock on the door
-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive
Manual defrost No temperature fluctuations with a manual defrost system that keeps the cold inside
Three removable storage
baskets
No internal fans Static cooling system
Durable design with lasting elegance
materials
Conveniently organize your items while keeping the temperature stable when the door is opened
Specifications:
Height 33.5 up to 34.5"
Width 23.75"
Depth 23.5"
Capacity 3.5 cu.ft.
Ext Depth with Handle 25.5"
Interior Height 1 24.25"
Interior Width 1 17.75"
Interior Depth 1 16.5"
Comp Step Height 6.0"
Comp Step Width 17.75"
Comp Step Depth 6.0"
Height Adjustable true
Shipping Weight 143.0 lbs.
US Electrical Safety UL
Amps 1.3
Canadian Electrical Safety ULC
Reversible Factory Reversible
Door Swing RHD
Drawers true
Drawer Quantity 3
Defrost Type Manual
Temperature Range -20ºC to -30ºC
Depth with door at 90° 45.25"
Height to Hinge Cap 34.75"
Fan Type Exterior
Thermostat Type Dial
Condensor Location N/A
High Side PSI 235.0
Refrigerant Type R134a
Freon Oz 2.7
Level Legs Quantity 4
Low Side PSI 70.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
