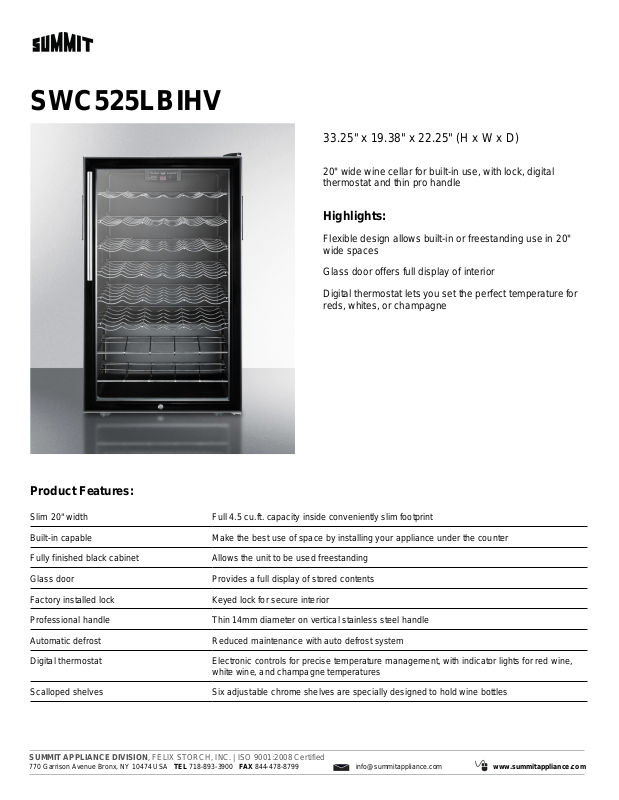

Summit SWC525LBIHV Specifications

SWC525LBIHV

33.25" x 19.38" x 22.25" (H x W x D)

20" wide wine cellar for built-in use, with lock, digital
thermostat and thin pro handle

Highlights:

Flexible design allows built-in or freestanding use in 20"
wide spaces

Glass door offers full display of interior
Digital thermostat lets you set the perfect temperature for

reds, whites, or champagne

Product Features:

Slim 20" width Full 4.5 cu.ft. capacity inside conveniently slim footprint
Built-in capable Make the best use of space by installing your appliance under the counter
Fully finished black cabinet Allows the unit to be used freestanding
Glass door Provides a full display of stored contents
Factory installed lock Keyed lock for secure interior
Professional handle Thin 14mm diameter on vertical stainless steel handle
Automatic defrost Reduced maintenance with auto defrost system
Digital thermostat Electronic controls for precise temperature management, with indicator lights for red wine,

white wine, and champagne temperatures

Scalloped shelves Six adjustable chrome shelves are specially designed to hold wine bottles

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC525LBIHV Specifications:

Overview

Height of Cabinet 33.25" (84 cm)
Width 19.38" (49 cm)
Depth 22.25" (57 cm)
Capacity 4.5 cu.ft. (127 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 60.0 lbs. (27 kg)
Shipping Weight 83.0 lbs. (38 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 1.59 oz.
High Side PSI 218.0
Low Side PSI 105.0
Level Legs 2
Wheels 2

ETL-C
