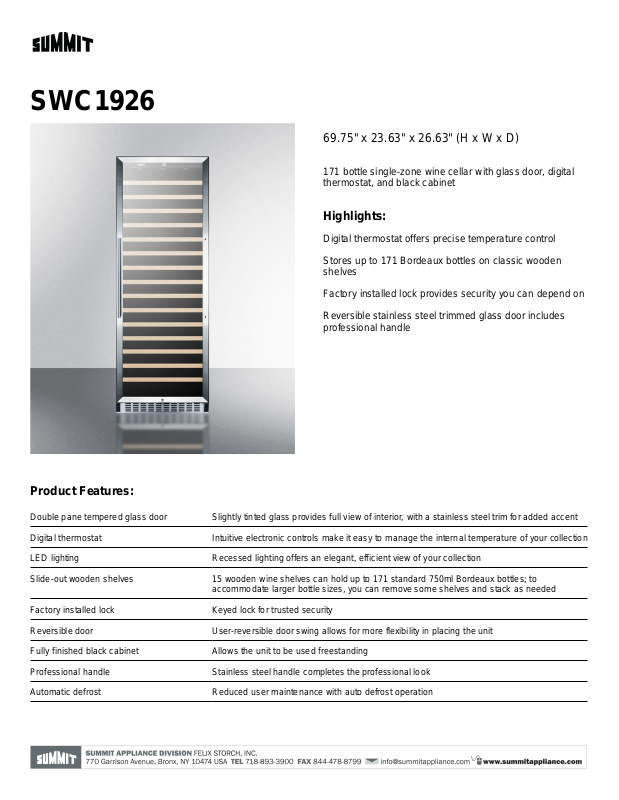

Summit SWC1926LHD Brochure

SWC1926

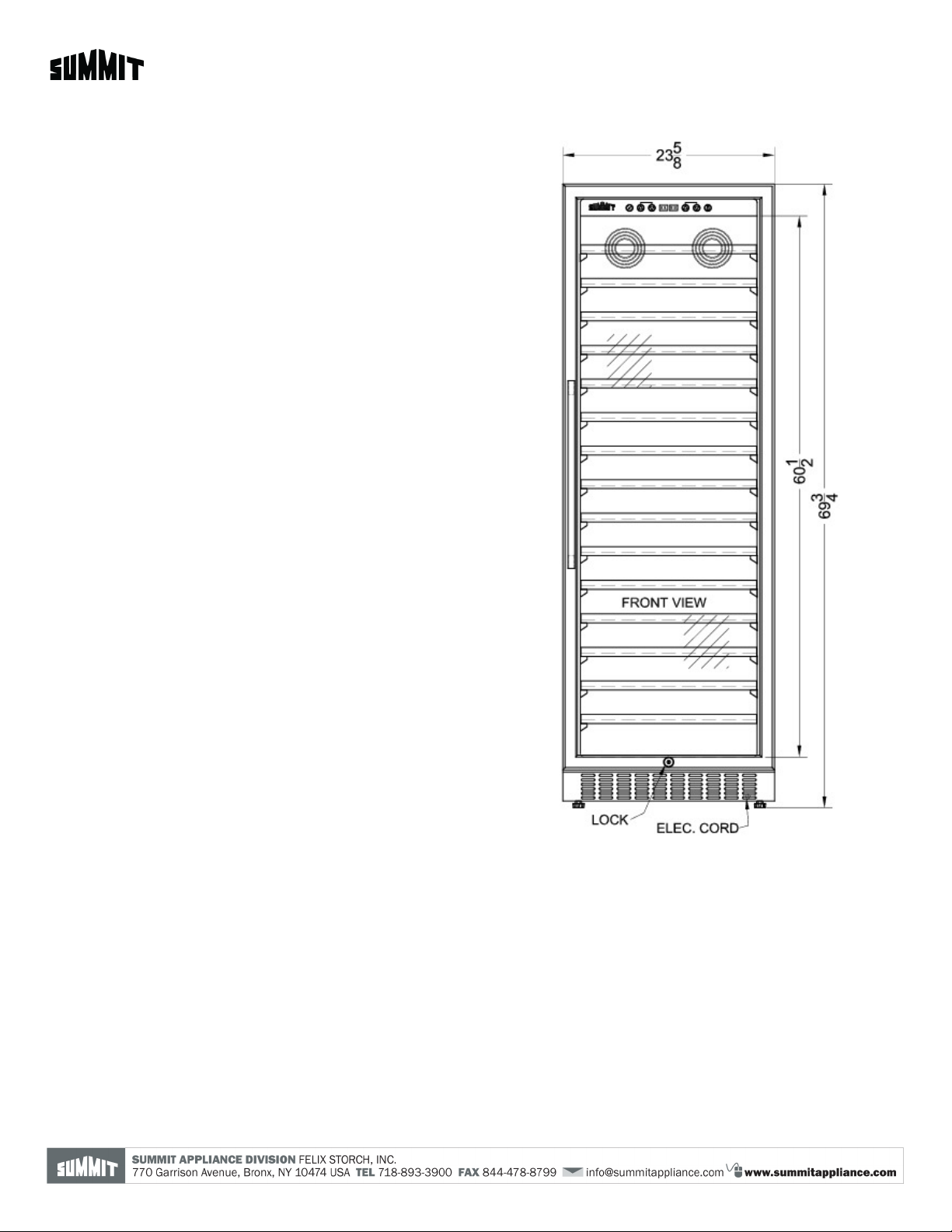

69.75" x 23.63" x 26.63" (H x W x D)

171 bottle single-zone wine cellar with glass door, digital
thermostat, and black cabinet

Highlights:

Digital thermostat offers precise temperature control
Stores up to 171 Bordeaux bottles on classic wooden

shelves
Factory installed lock provides security you can depend on
Reversible stainless steel trimmed glass door includes

professional handle

Product Features:

Double pane tempered glass door Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
Digital thermostat Intuitive electronic controls make it easy to manage the internal temperature of your collection
LED lighting Recessed lighting offers an elegant, efficient view of your collection
Slide-out wooden shelves 15 wooden wine shelves can hold up to 171 standard 750ml Bordeaux bottles; to

accommodate larger bottle sizes, you can remove some shelves and stack as needed
Factory installed lock Keyed lock for trusted security
Reversible door User-reversible door swing allows for more flexibility in placing the unit
Fully finished black cabinet Allows the unit to be used freestanding
Professional handle Stainless steel handle completes the professional look
Automatic defrost Reduced user maintenance with auto defrost operation

SWC1926 Specifications:

Overview

Height 69.75"
Width 23.63"
Depth 26.63"
Depth with Handle 27.75"
Depth with door at 90° 48.75"
Bottles 171 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 187.0 lbs.
Shipping Weight 220.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 15
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.91 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 60.5"
Interior Width 1 19.75"
Interior Depth 1 21.0"
Compressor Step

Height
Compressor Step Width 19.75"

ETL-C

Exterior

3.75"

Compressor Step
Depth

5.5"
