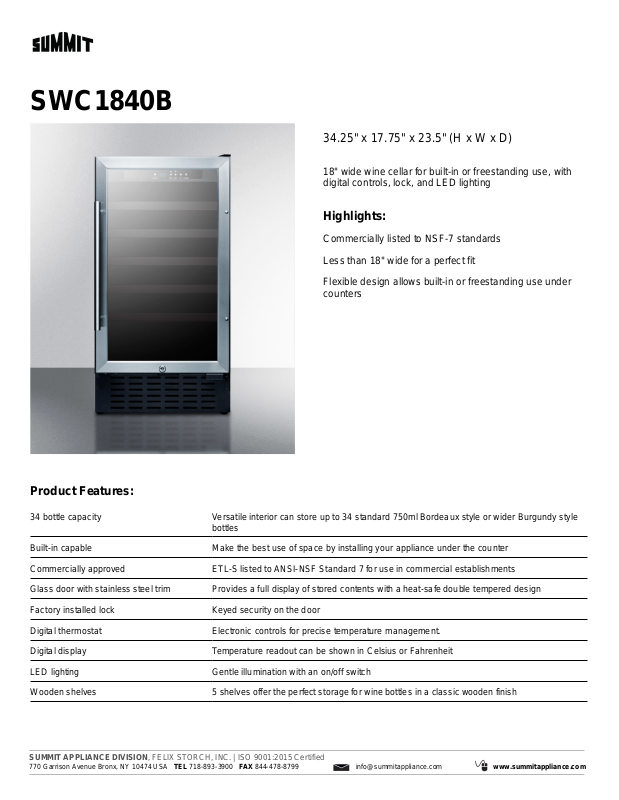

Summit SWC1840BLHD Specs

SWC1840B

34.25" x 17.75" x 23.5" (H x W x D)

18" wide wine cellar for built-in or freestanding use, with
digital controls, lock, and LED lighting

Highlights:

Commercially listed to NSF-7 standards
Less than 18" wide for a perfect fit
Flexible design allows built-in or freestanding use under

counters

Product Features:

34 bottle capacity Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style

bottles
Built-in capable Make the best use of space by installing your appliance under the counter
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock Keyed security on the door
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination with an on/off switch
Wooden shelves 5 shelves offer the perfect storage for wine bottles in a classic wooden finish

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC1840B Specifications:

Overview

Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

ETL-C

Exterior
