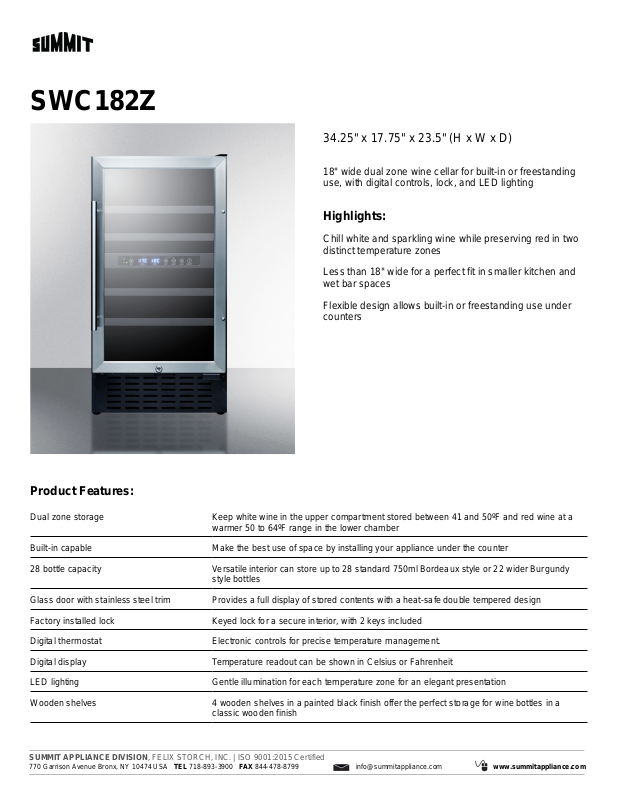

Summit SWC182ZLHD Specs

SWC182Z

34.25" x 17.75" x 23.5" (H x W x D)

18" wide dual zone wine cellar for built-in or freestanding
use, with digital controls, lock, and LED lighting

Highlights:

Chill white and sparkling wine while preserving red in two
distinct temperature zones

Less than 18" wide for a perfect fit in smaller kitchen and
wet bar spaces

Flexible design allows built-in or freestanding use under
counters

Product Features:

Dual zone storage Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a

warmer 50 to 64ºF range in the lower chamber
Built-in capable Make the best use of space by installing your appliance under the counter
28 bottle capacity Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy

style bottles
Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock Keyed lock for a secure interior, with 2 keys included
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination for each temperature zone for an elegant presentation
Wooden shelves 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a

classic wooden finish

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC182Z Specifications:

Overview

Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4

ETL-C

Exterior

Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)
