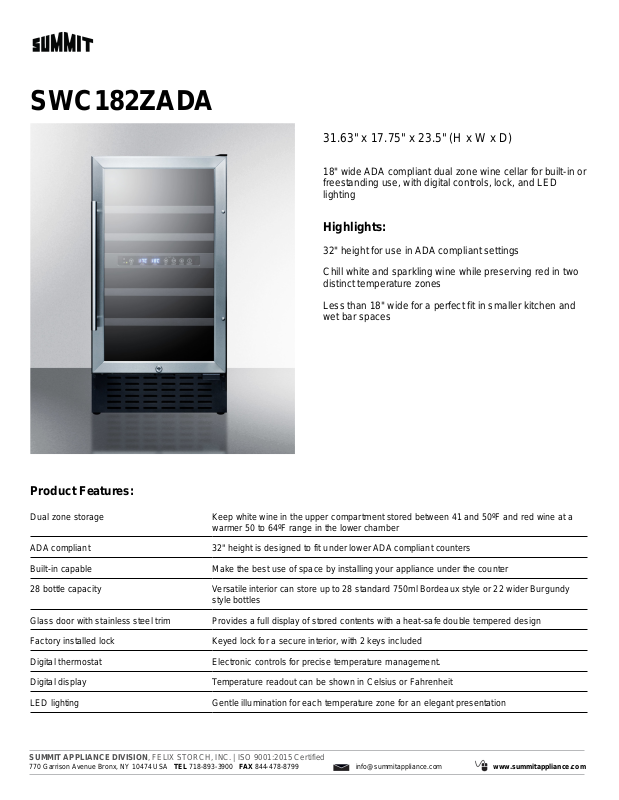

Summit SWC182ZADALHD Specs

SWC182ZADA

31.63" x 17.75" x 23.5" (H x W x D)

18" wide ADA compliant dual zone wine cellar for built-in or
freestanding use, with digital controls, lock, and LED
lighting

Highlights:

32" height for use in ADA compliant settings
Chill white and sparkling wine while preserving red in two

distinct temperature zones
Less than 18" wide for a perfect fit in smaller kitchen and

wet bar spaces

Product Features:

Dual zone storage Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a

warmer 50 to 64ºF range in the lower chamber
ADA compliant 32" height is designed to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
28 bottle capacity Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy

style bottles
Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock Keyed lock for a secure interior, with 2 keys included
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination for each temperature zone for an elegant presentation

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC182ZADA Specifications:

Overview

Height of Cabinet 31.63" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)

ETL-C

Exterior

Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)
