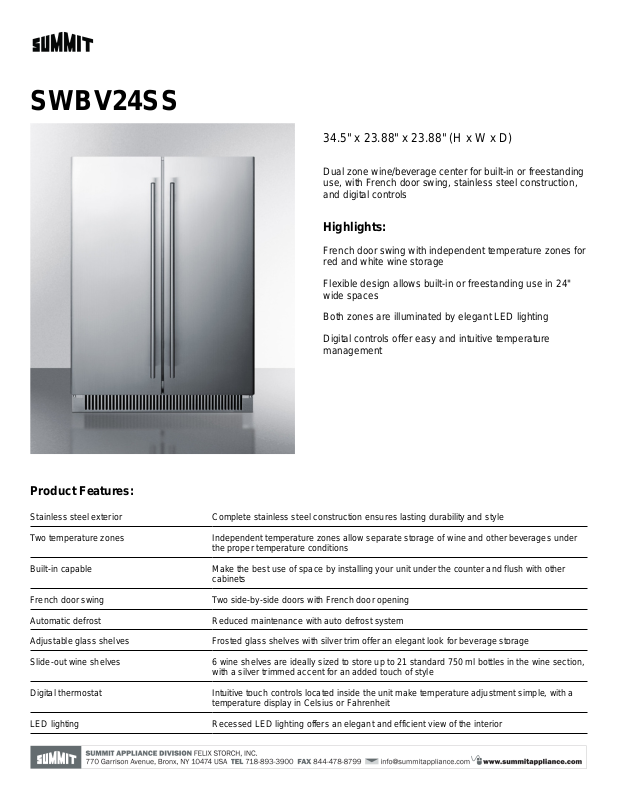

Summit SWBV24SS Brochure

SWBV24SS

34.5" x 23.88" x 23.88" (H x W x D)

Dual zone wine/beverage center for built-in or freestanding
use, with French door swing, stainless steel construction,
and digital controls

Highlights:

French door swing with independent temperature zones for
red and white wine storage

Flexible design allows built-in or freestanding use in 24"
wide spaces

Both zones are illuminated by elegant LED lighting
Digital controls offer easy and intuitive temperature

management

Product Features:

Stainless steel exterior Complete stainless steel construction ensures lasting durability and style
Two temperature zones Independent temperature zones allow separate storage of wine and other beverages under

the proper temperature conditions

Built-in capable Make the best use of space by installing your unit under the counter and flush with other

cabinets
French door swing Two side-by-side doors with French door opening
Automatic defrost Reduced maintenance with auto defrost system
Adjustable glass shelves Frosted glass shelves with silver trim offer an elegant look for beverage storage
Slide-out wine shelves 6 wine shelves are ideally sized to store up to 21 standard 750 ml bottles in the wine section,

with a silver trimmed accent for an added touch of style
Digital thermostat Intuitive touch controls located inside the unit make temperature adjustment simple, with a

temperature display in Celsius or Fahrenheit
LED lighting Recessed LED lighting offers an elegant and efficient view of the interior

SWBV24SS Specifications:

Overview

Height 34.5"
Width 23.88"
Depth 23.88"
Depth with Handle 25.5"
Depth with door at 90° 34.5"
Capacity 5.1 cu.ft.
Bottles 21 bottles
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 2.2
Voltage/Frequency 115 V AC/60 Hz
Weight 101.0 lbs.
Shipping Weight 120.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Qty 9
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R134a
Refrigerant Amount 2.65 oz.
High Side PSI 250.0
Low Side PSI 103.0
Interior Height 1 26.0"
Interior Width 1 9.38"
Interior Depth 1 18.0"
Compressor Step

Height
Compressor Step

Width
Compressor Step

Depth

Exterior

4.38"

9.38"

5.5"

Level Legs 2
Wheels 4
Interior Height 2 26.0"
Interior Width 2 9.38"
Interior Depth 2 18.0"
