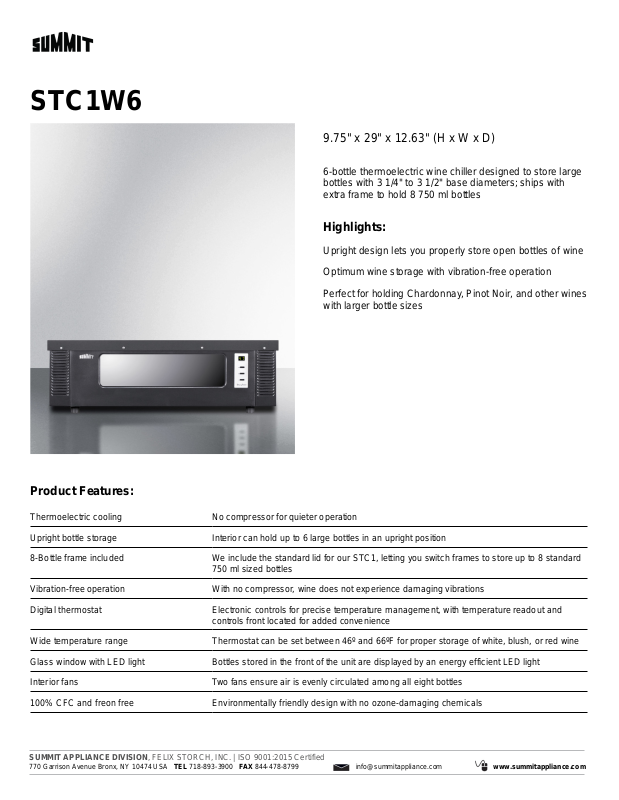

Summit STC1W6 Specification Sheet

STC1W6

9.75" x 29" x 12.63" (H x W x D)

6-bottle thermoelectric wine chiller designed to store large
bottles with 3 1/4" to 3 1/2" base diameters; ships with
extra frame to hold 8 750 ml bottles

Highlights:

Upright design lets you properly store open bottles of wine
Optimum wine storage with vibration-free operation
Perfect for holding Chardonnay, Pinot Noir, and other wines

with larger bottle sizes

Product Features:

Thermoelectric cooling No compressor for quieter operation
Upright bottle storage Interior can hold up to 6 large bottles in an upright position
8-Bottle frame included We include the standard lid for our STC1, letting you switch frames to store up to 8 standard

750 ml sized bottles
Vibration-free operation With no compressor, wine does not experience damaging vibrations
Digital thermostat Electronic controls for precise temperature management, with temperature readout and

controls front located for added convenience
Wide temperature range Thermostat can be set between 46º and 66ºF for proper storage of white, blush, or red wine
Glass window with LED light Bottles stored in the front of the unit are displayed by an energy efficient LED light
Interior fans Two fans ensure air is evenly circulated among all eight bottles
100% CFC and freon free Environmentally friendly design with no ozone-damaging chemicals

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

STC1W6 Specifications:

Overview

Height of Cabinet 9.75" (25 cm)
Width 29.0" (74 cm)
Depth 12.63" (32 cm)
Capacity 0.8 cu.ft. (23 L)
Bottles 6 bottles
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 26.0 lbs. (12 kg)
Shipping Weight 48.0 lbs. (22 kg)
Parts & Labor Warranty 1 Year

Wine Cellar

Number of Zones 1
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
