Summit SPW1103ADA User Manual
Instructions for Use
Washing Machine
188635
Thank you for your condence in purchasing our
2
washing machine, and congratulations on the
excellent choice.
Our appliances are friendly to the environment.
Your new washing machine meets the requirements
of modern clothes care. It consumes less energy,
water and washing detergent.
Description of washing machine .....................3
Cautions .............................................................4
Important safety instructions .......................... 6
Installation and connection .............................. 8
Operation.......................................................... 12
Tips for washing and energy saving .............19

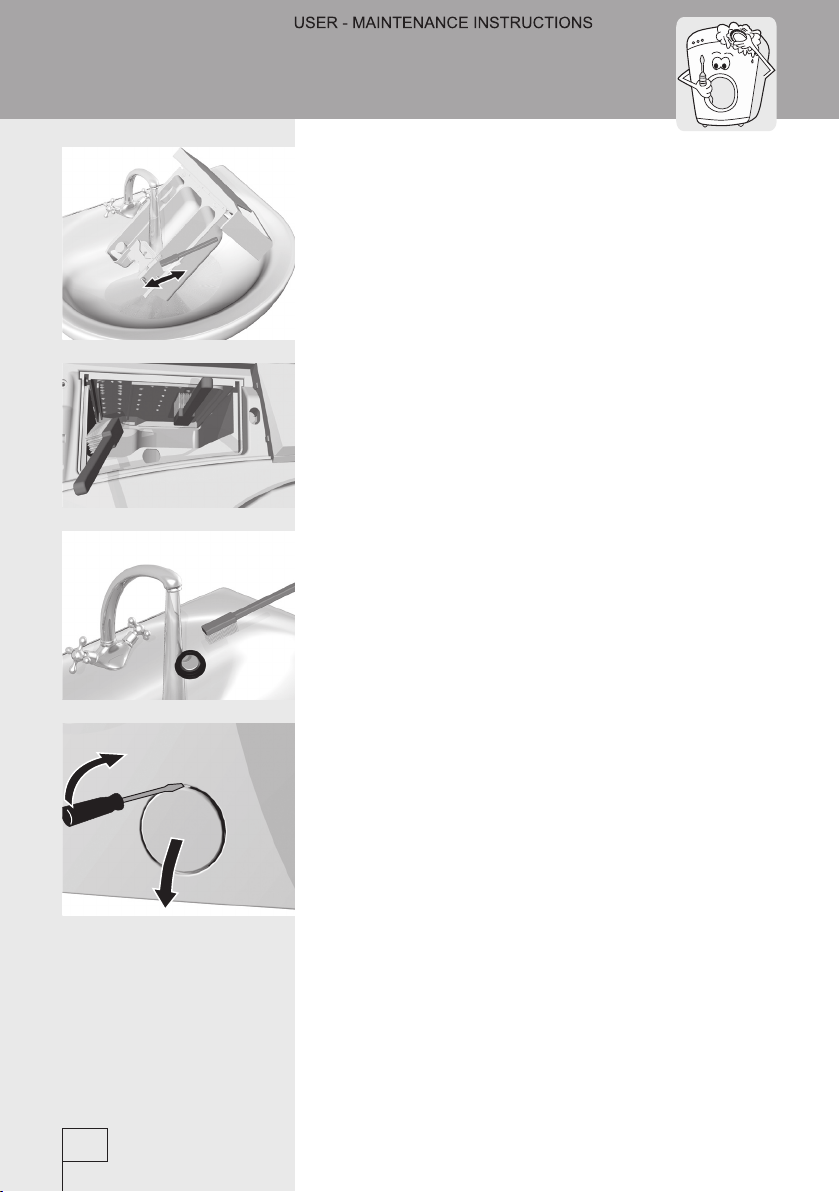

Cleaning and maintenance ............................. 21
Troubleshooting .............................................. 24
Tables ...............................................................27
Ownership Registration .................................. 29
Warranty ........................................................... 31
Consumer Support .......................................... 32
Description of washing machine
1. Front panel
2. Detergent dispenser
3. Door
4. Filter lid
Technical information
5. Adjustable legs
6. Water outlet hose
7. Water inlet hose
8. Main power cable
Dimensions (w x d x h):
600 mm x 600 mm x 850 mm
Dimensions (w x d x h):
600 mm x 440 mm x 850 mm
Depth with door open:
106 cm / 88 cm (depending on model)
Weight (net): 174 lbs (79 kg)
Nominal voltage: 120 V, 60 Hz
Power: 1500 W
Max. load: 15 lbs (7kg)
Power socket: 120 V, 15 A, 60 Hz
Water pressure:
min. 7 psi (0,05 MPa, max. 116 psi (0,8 MPa)
Fuse: 15 A
188635
3
188635
4
Cautions
BE SURE TO REMOVE SHIPPING RODS PRIOR
•
TO THE FIRST USE OF THE APPLIANCE.
ATTEMPTING TO OPERATE THE MACHINE
WITHOUT REMOVING THE SHIPPING RODS
MAY RESULT IN IRREPARABLE DAMAGE
WHICH IS NOT COVERED UNDER WARRANTY.
When connecting your washing machine to
•
the water supply, be sure to use the brand new
water inlet hose and appropriate sealing gaskets
(included).
Do not locate the machine in a room with
•
temperature below 0°C. Parts of the machine may
be damaged if frozen.
Install the washing machine in a perfectly
•
horizontal position, on solid at concrete oor.
Follow the instructions for correct installation and
•
water and main connections.
Never immerse the end of the drain hose into the
•
draining water.
Prior to starting the wash cycle, ensure the door is
•
closed properly.
Door may not be open during the washing cycle.
•
Use only detergents and softeners for
•
machine wash. Manufacturer may not assume
responsibility for any damage and eventual
discoloring of gaskets and plastic components as
a consequence of incorrect use of bleach and/or
coloring agents.
High Efciency (“HE”) detergent recommended.
•
For removal of lime residues use such agents
•
with added anti-corrosion agents. Follow the
manufacturer’s instructions. Finish the lime
removal by multiple rinsing to completely remove
eventual acid residues.
Never use detergents containing solvents, since
•
there is a danger of creating toxic gasses which
may damage the machine and result in ignition or
explosion.
Upon completion of washing operation close the
•
water faucet.
Before any transport insert at least one shipping
•
rod. Prior to this operation disconnect the
appliance from the main power!
Rating plate with basic information is located on
•
the edge of the door opening.
The appliance is manufactured in compliance
•
with all relevant safety standards; however, it
is recommended that persons with impaired
physical, motional, or mental abilities, or persons
with inadequate experience and knowledge, do
not use the appliance without due supervision.
The same recommendation applies to minors
using the appliance.
Before connecting the appliance read
these instructions carefully. Repairing
any failure arising from inappropriate
connections or use of the appliance is not
covered by the guarantee.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
188635
5
188635
6
Important safety instructions
To reduce the risk of re, electric shock, or
injury when using your appliance, follow
basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not wash articles that have been previously
cleaned in, washed in, soaked in or spotted
with gasoline, dry-cleaning solvents, and other
ammable or explosive substances as they give
off vapors that could ignite or explode.
3. Do not add gasoline, dry-cleaning solvents, or
other ammable or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
4. Under certain conditions, hydrogen gas may
be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE, if the hot water system
has not been used for such a period, before
using a washing machine, turn on all hot
water faucets and let the water ow from
each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
ammable do not smoke or use an open ame
during this time.
5. Do not allow children to play on or in the
appliance. Close supervision of children is
necessary when the appliance is used near
children.
6. Before the appliance is removed from service or
discarded, remove the door.
7. Do not reach into the appliance if the tub or
agitator is moving.
8. Do not install or store this appliance where it will
be exposed to the weather.
9. Do not tamper with controls.
10. Do not repair or replace any part of the
appliance or attempt any servicing unless
specically recommended in the user-
maintenance instructions or in published user-
repair instructions that you understand and have
the skills to carry out.
11. To reduce the risk of electric shock, disconnect
the appliance from the power supply before
attempting any user maintenance. Turning
the control to the »OFF« position does not
disconnect the appliance from the power supply.
DANGER
Risk of child entrapment
Before you throw away your old appliance,
take off the door so that children cannot
easily get trapped inside.
Save these instructionsSave these instructions
Grounding instructions
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipmentgrounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualied
electrician or serviceman if you are in
doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance-
if it will not t the outlet; have a proper outlet
installed by a qualied electrician.
188635
7
188635
8
Installation and connection
Package removal
Removal of transport
brackets and shipping
rods
When removing the wrapping be careful not
to damage the appliance with a sharp object.
Before connecting the appliance, let it warm
up to room temperature (wait for two hours).
Our appliances are packed in environmentally
•
friendly materials which may be recycled,
deposited or decomposed without any threat to
the environment.
To this end all packaging is marked accordingly.
•
Move the hoses to allow access to the transport
•
brackets.
Loosen screws A at the rear of the machine
•
(Fig. 1).
Remove the brackets B (Fig. 1) by sliding them off
•
the shipping rod (Fig. 1).
Use the brackets to remove the shipping rods by
•
inserting the notched end of the bracket around
the shipping rod (Fig. 2).
Rotate the bracket 90° in an upward motion to
•
release the shipping rod (Fig. 2).
Pull the shipping rod out.
•
Save bracket and rods for later use.
•
Be sure to remove the transport brackets
prior to use, otherwise the appliance may
be permanently damaged. In such cases
the warranty conditions are void.
Fig. 2
Fig. 1
Fig. 2
Leveling the appliance
Level the appliance by turning the adjustable legs.
•
Placing a “bubble” level on the washer may assist
you.
The legs are adjustable up to +/- 0,39 inch (1 cm).
After the adjustment tighten the nuts rmly (A)
- towards the bottom of the machine!
The oor must be a hard surface with a
maximum slope of ½˝ per foot (1,27 cm per 30
cm). To make sure the washer does not vibrate
or move, you may have to reinforce the oor.
The appliance should be placed on a surface
with concrete base; the surface should be
dry and clean in order to prevent slipping.
The adjustable feet should also be cleaned
before installation.
If you have a tumble dryer of the same
•
dimensions, you can place it on top of the
washing machine.
Water inlet connection
To ensure correct operation of the appliance,
inlet water pressure must be between 7 psi to
116 psi (0,05 MPa and 0,8 MPa).
Minimum water pressure can be established by
measuring the quantity of poured out water.
0,8 gal (3 litres) of water must be poured out
from a completely opened tap in 15 seconds.
Take the water inlet hose from the drum and
•
attach the inlet hose angle extension (1) to the
washing machine by screwing it onto the provided
thread (certain models only).
Insert the gasket with a lter net into the straight
•
inlet hose attachment nut (2) and screw the nut
188635
