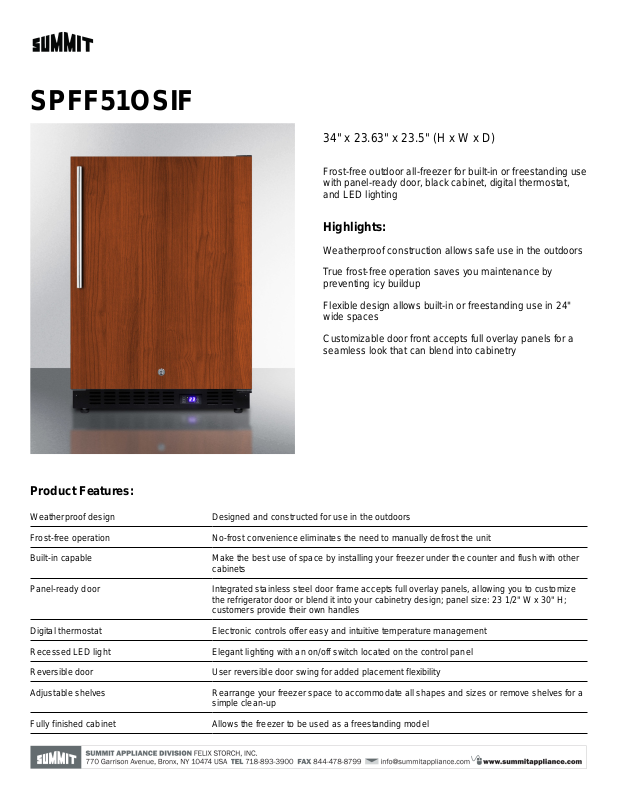

Summit SPFF51OSIF Instruction Manual

SPFF51OSIF

34" x 23.63" x 23.5" (H x W x D)

Frost-free outdoor all-freezer for built-in or freestanding use
with panel-ready door, black cabinet, digital thermostat,
and LED lighting

Highlights:

Weatherproof construction allows safe use in the outdoors
True frost-free operation saves you maintenance by

preventing icy buildup
Flexible design allows built-in or freestanding use in 24"

wide spaces
Customizable door front accepts full overlay panels for a

seamless look that can blend into cabinetry

Product Features:

Weatherproof design Designed and constructed for use in the outdoors
Frost-free operation No-frost convenience eliminates the need to manually defrost the unit
Built-in capable Make the best use of space by installing your freezer under the counter and flush with other

cabinets

Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize

the refrigerator door or blend it into your cabinetry design; panel size: 23 1/2" W x 30" H;

customers provide their own handles
Digital thermostat Electronic controls offer easy and intuitive temperature management
Recessed LED light Elegant lighting with an on/off switch located on the control panel
Reversible door User reversible door swing for added placement flexibility
Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a

simple clean-up
Fully finished cabinet Allows the freezer to be used as a freestanding model

SPFF51OSIF Specifications:

Overview

Height 34.0"
Width 23.63"
Depth 23.5"
Depth with Handle 25.35"
Depth with door at 90° 45.63"
Capacity 4.72 cu.ft.
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 390.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 88.0 lbs.
Shipping Weight 98.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.24
High Side PSI 270.0
Low Side PSI 106.0

ETL-C

Exterior
