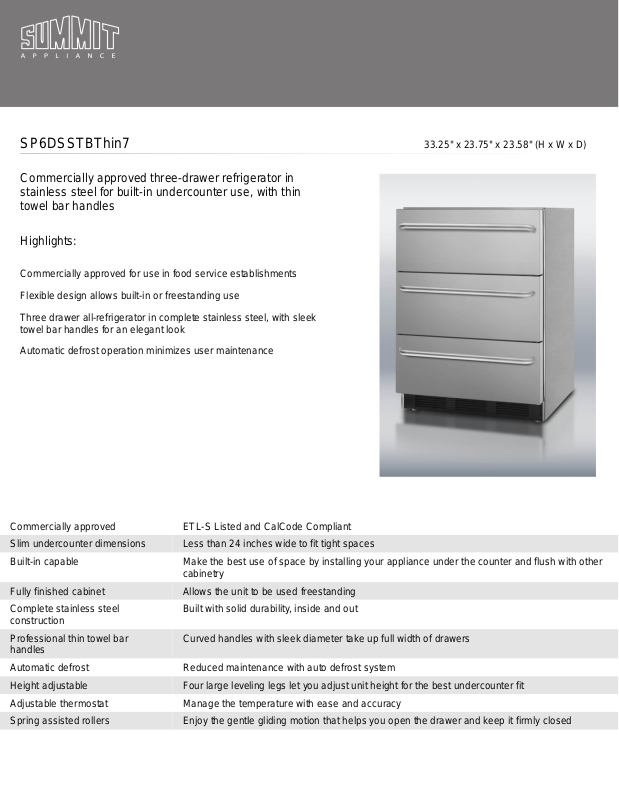

Summit SP6DSSTBTHIN7 Specification Sheet

SP6DSSTBThin7 33.25" x 23.75" x 23.58" (H x W x D)

Commercially approved three-drawer refrigerator in
stainless steel for built-in undercounter use, with thin
towel bar handles

Highlights:

Commercially approved for use in food service establishments
Flexible design allows built-in or freestanding use
Three drawer all-refrigerator in complete stainless steel, with sleek

towel bar handles for an elegant look
Automatic defrost operation minimizes user maintenance

Commercially approved ETL-S Listed and CalCode Compliant
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces
Built-in capable Make the best use of space by installing your appliance under the counter and flush with other

cabinetry
Fully finished cabinet Allows the unit to be used freestanding
Complete stainless steel

construction
Professional thin towel bar

handles
Automatic defrost Reduced maintenance with auto defrost system
Height adjustable Four large leveling legs let you adjust unit height for the best undercounter fit
Adjustable thermostat Manage the temperature with ease and accuracy
Spring assisted rollers Enjoy the gentle gliding motion that helps you open the drawer and keep it firmly closed

Built with solid durability, inside and out

Curved handles with sleek diameter take up full width of drawers

Specifications:

Height 33.25 up to 34.5"
Width 23.75"
Depth 23.58"
Capacity 5.4 cu.ft.
Ext Depth with Handle 24.63"
Interior Height 1 27.75"
Interior Width 1 20.0"
Interior Depth 1 17.5"
Comp Step Height 7.0"
Comp Step Width 20.0"
Comp Step Depth 6.0"
Height Adjustable true
Shipping Weight 140.0 lbs.
Energy Usage/Year 423.0 kWh/year
Amps 1.3
US Electrical Safety UL
Canadian Electrical Safety ULC
Drawers true
Drawer Quantity 3
Defrost Type Automatic
Depth with door at 90° 40.5"
Fan Type Interior and Exterior
Thermostat Type Dial
Low Side PSI 70.0
Freon Type R134a
Level Legs Quantity 4
High Side PSI 285.0
Freon Oz 1.8
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
