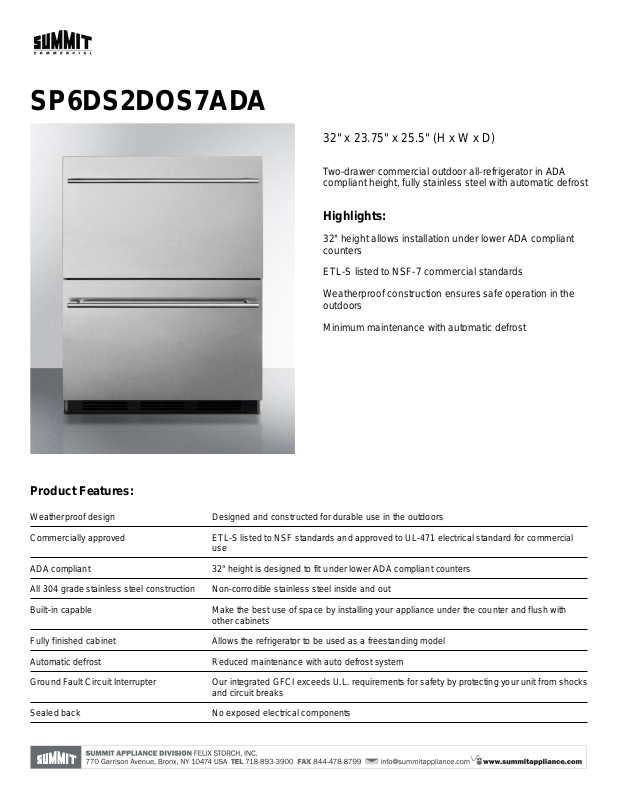

Summit SP6DS2DOS7 Brochure

SP6DS2DOS7ADA

32" x 23.75" x 25.5" (H x W x D)

Two-drawer commercial outdoor all-refrigerator in ADA
compliant height, fully stainless steel with automatic defrost

Highlights:

32" height allows installation under lower ADA compliant
counters

ETL-S listed to NSF-7 commercial standards
Weatherproof construction ensures safe operation in the

outdoors
Minimum maintenance with automatic defrost

Product Features:

Weatherproof design Designed and constructed for durable use in the outdoors
Commercially approved ETL-S listed to NSF standards and approved to UL-471 electrical standard for commercial

use
ADA compliant 32" height is designed to fit under lower ADA compliant counters
All 304 grade stainless steel construction Non-corrodible stainless steel inside and out
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished cabinet Allows the refrigerator to be used as a freestanding model
Automatic defrost Reduced maintenance with auto defrost system
Ground Fault Circuit Interrupter Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks

and circuit breaks
Sealed back No exposed electrical components

SP6DS2DOS7ADA Specifications:

Overview

Height 32.0"
Width 23.75"
Depth 25.5"
Capacity 3.1 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 140.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Thermostat Type Dial
Fan Type Interior and

Refrigerant Type R134a
Refrigerant Amount 1.8
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 2

Dimensions

Interior Height 1 9.25"
Interior Width 1 19.75"
Compressor Step

Height
Compressor Step Width 19.75"
Compressor Step

Depth

Drawer Dimensions

Interior Depth 1 17.75"
Interior Height 2 11.75"
Interior Width 2 19.75"

ETL-C

Exterior

7.0"

6.0"

Interior Depth 2 17.75"
