Summit SP5DS2DBLK, SP5DS2DSSHH User Manual
Dual-Drawer Refrigerator
Réfrigérateur à deux tiroirs
Refrigerador de doble cajón
User Manual | Guide d'utilisation | Manual de usuario
Models | Modèles | Modelos:
SP5DS2DBLK
(Black exterior | extérieur noir | exterior negro)
SP5DS2DSSHH (Stainless steel door | porte en acier inoxydable | puerta de acero inoxidable)
1
English

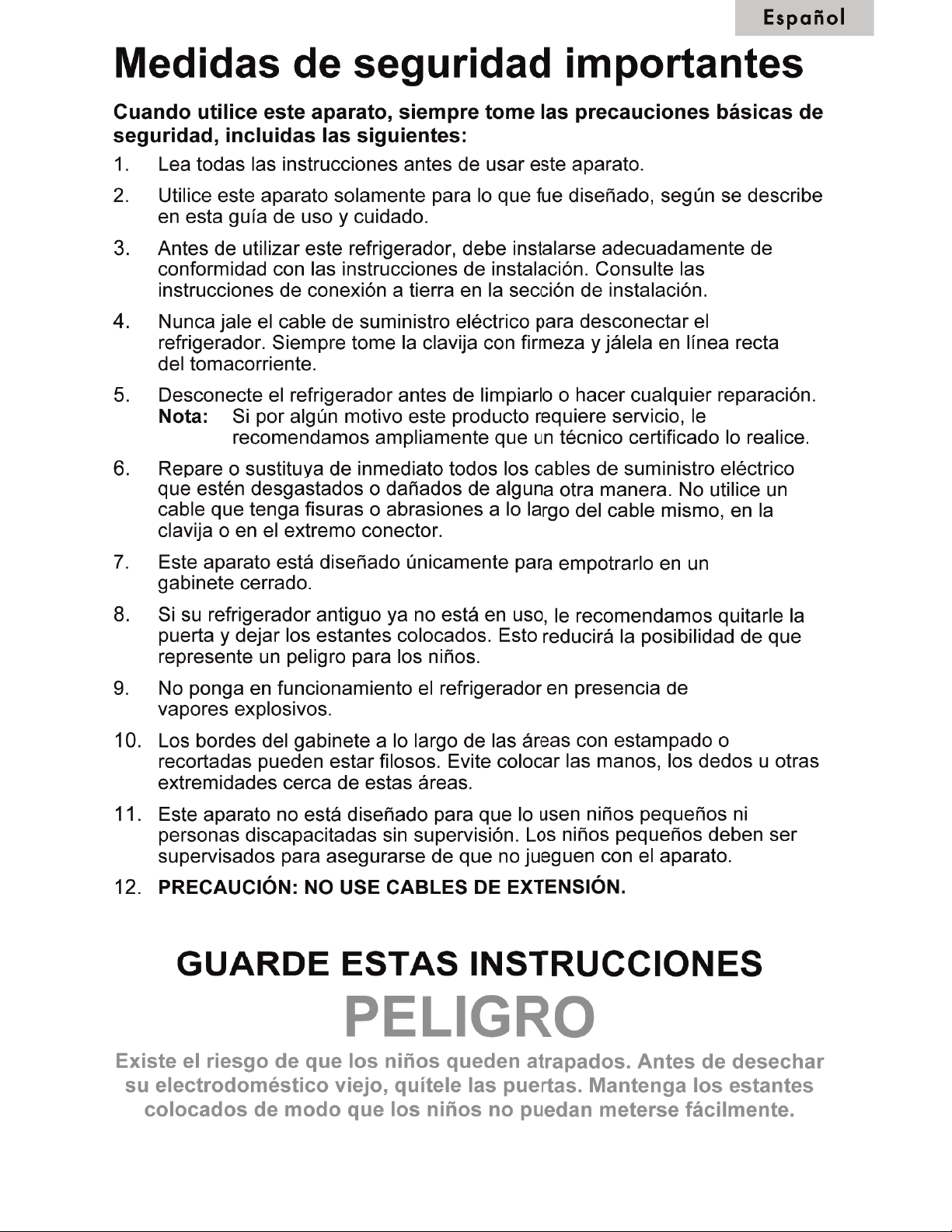

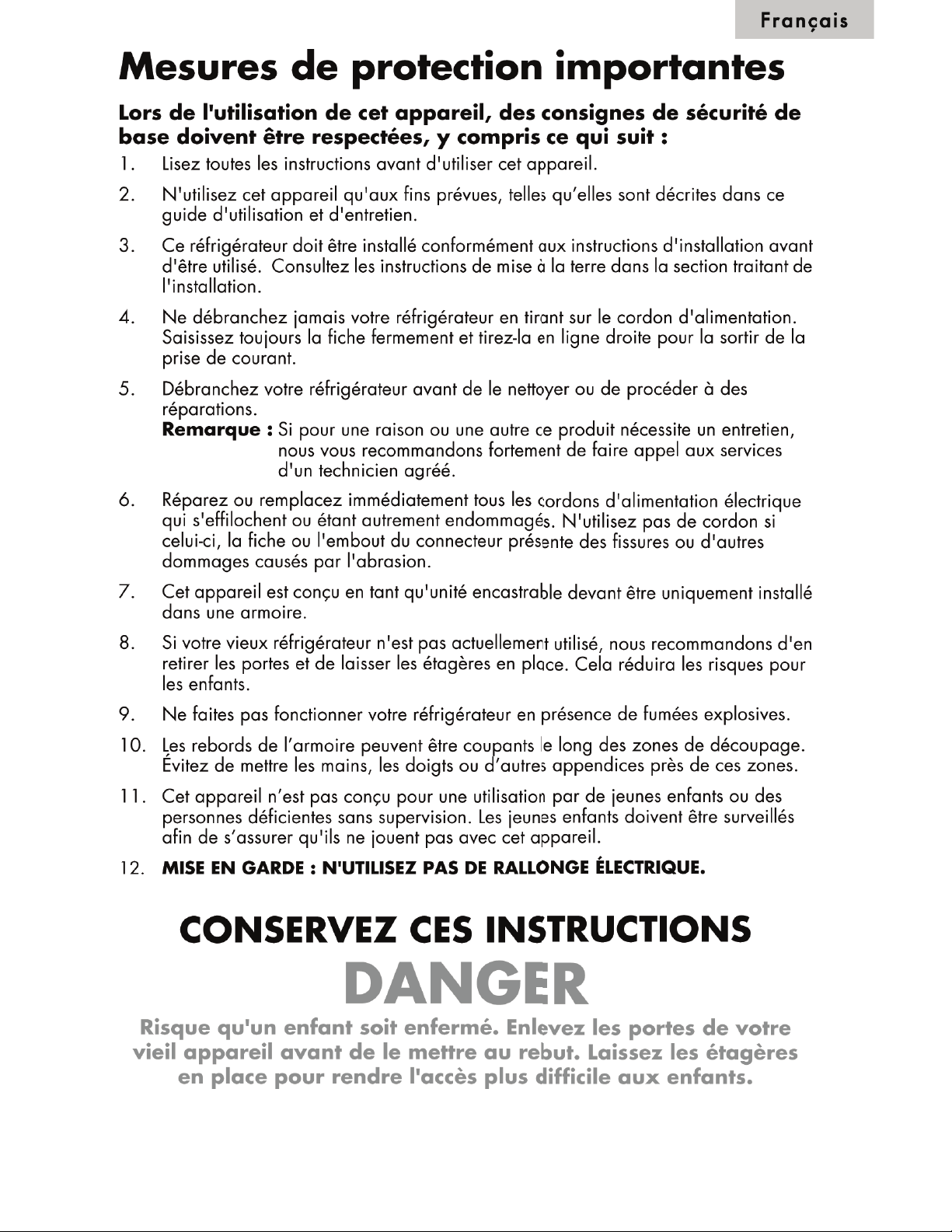

Important Safeguards
When using this appliance, always exercise basic safety
precautions, including the following:
1. Read all of the instructions before using this appliance.
2. Use this appliance only for its intended purpose as described in this use
and care guide.
3. This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounded instructions in
the installation section.
4. Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
5. Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6. Repair or replace immediately, all electric power cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
7. This appliance is designed for built-in use only into an enclosed
cabinet.
8. If your old refrigerator is not being used, we recommend that you
remove the door and leave the shelves in place. This will reduce
possibility of danger to children.
9. Do not operate your refrigerator in
the presence of explosive fumes.
10. Cabinet edges along stamp/cut-out areas may be sharp. Please avoid
placing hands, fingers or other appendages near these areas.
11. This appliance is not intended for use by young children or infirm
persons without supervision. Young children should be supervised to
ensure they do not play with the appliance.
12. CAUTION: DON'T USE EXTENSION CORDS.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
appliance, take off the doors. Leave the shelves in place so
that children may not easily climb inside.
2
Thank you for using our Summit
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
back of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
English
Table Of Contents
PAGE
Important Safeguards ....................................................................1
Parts And Overall Dimension .......................................................3
Pre-Installation Instructions ...........................................................4
Preparation before installing ...................................................................4
Installation.............................................................................................5
Interior Parts.....................................................................................6
Crisper..................................................................................................6
Adjustable Divider..................................................................................6
Drawers .............................................................................................8
Upper Drawer........................................................................................8
Lower Drawer ........................................................................................8
How To Use This Product................................................................8
Important notes before connecting the power supply.................................8
Connect the power supply.......................................................................8
Interior LED bulb ....................................................................................8
Temperature setting ................................................................................8
Degree Centigrade and Fahrenheit conversion.........................................9
Power switch..........................................................................................9
Sabbath mode .......................................................................................9
Door Ajar Alarm ............................................................................ 10
Auto Defrost ....................................................................................... 10
Cleaning.......................................................................................... 10
TroubleShooting ............................................................................ 11
Limited Warranty.......................................................................... 12
.....

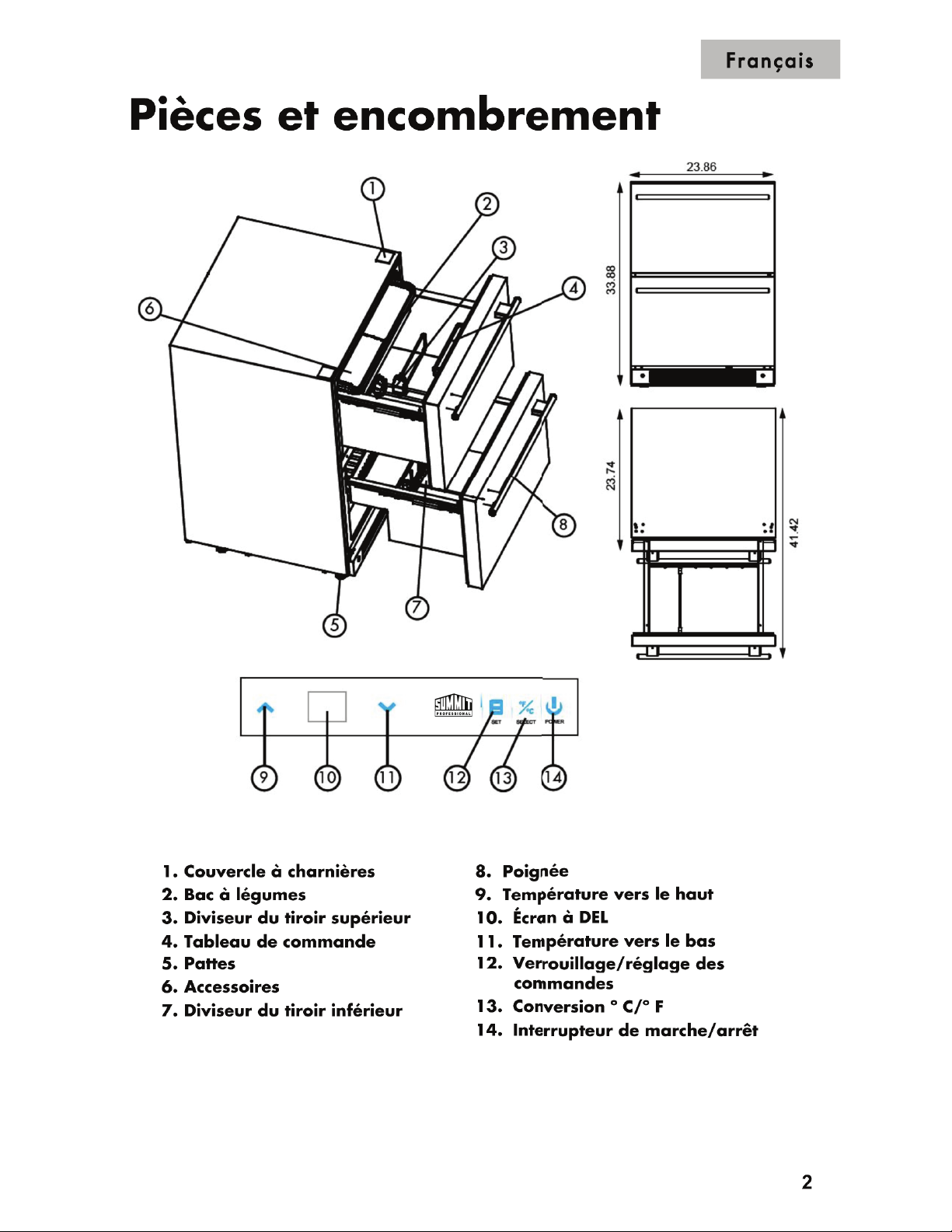

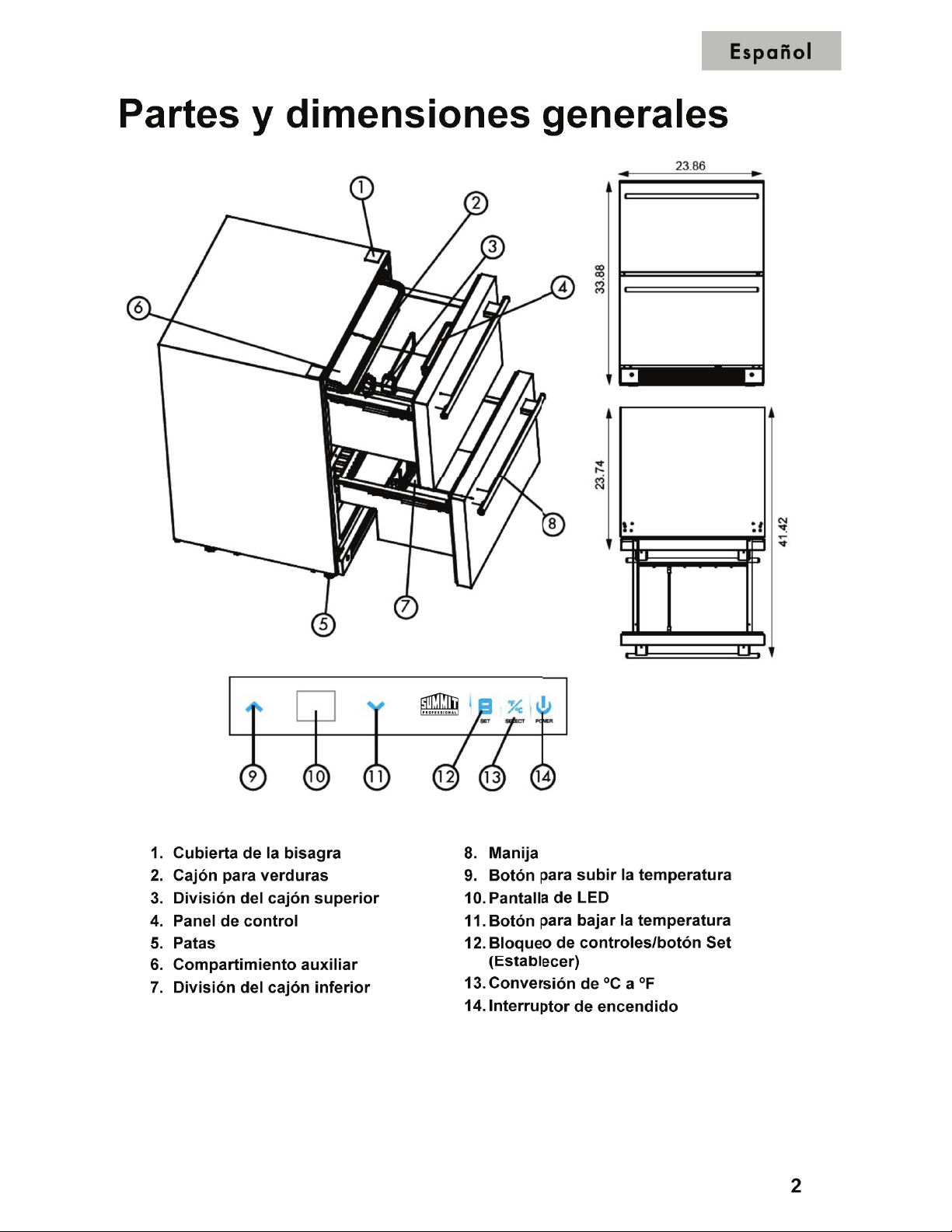

Parts And Overall Dimensions
3
English
1. Hinge Cover
2. Crisper
3. Upper Drawer Divider
4. Control Panel
5. Feet
6. Accessory Package
7. Lower Drawer Divider
8. Handle
9. Temperature Up
10. LED Screen
11. Temperature Down
12. Control Lock/Set
13. ºC/ºF Conversion
14. Power Switch
2
3
7
4
8
5
1
6
9 10 11 12
13
14
F
C
F
C
23.86
88.3
3
47.32
2
4.14
SET
SELECT
POWER
4
English
This refrigerator is for built-in use only. Before use, this product must be installed
properly.
Preparation Before Installing
First, clean product's surface with soft cloth, remove all protective packaging
covering the product.

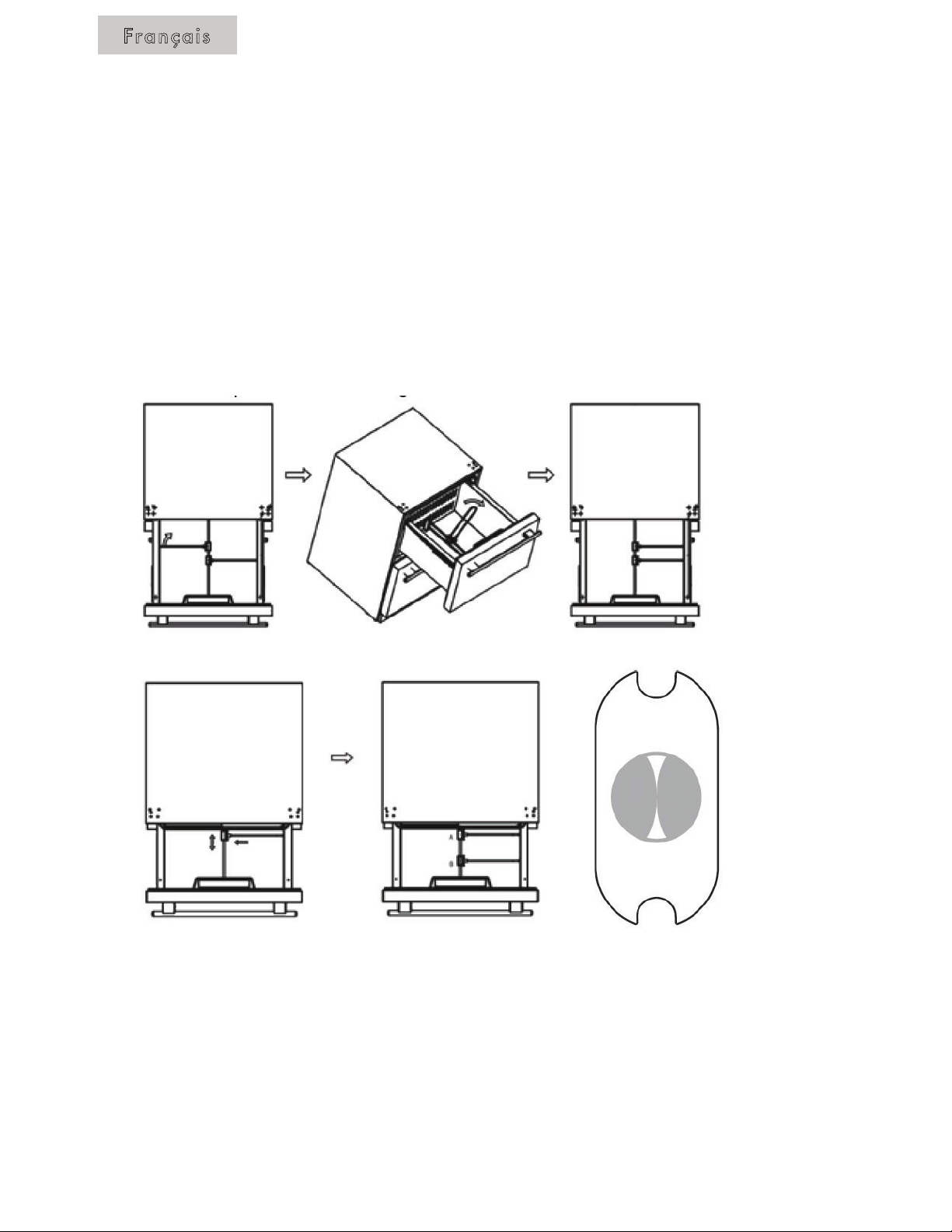

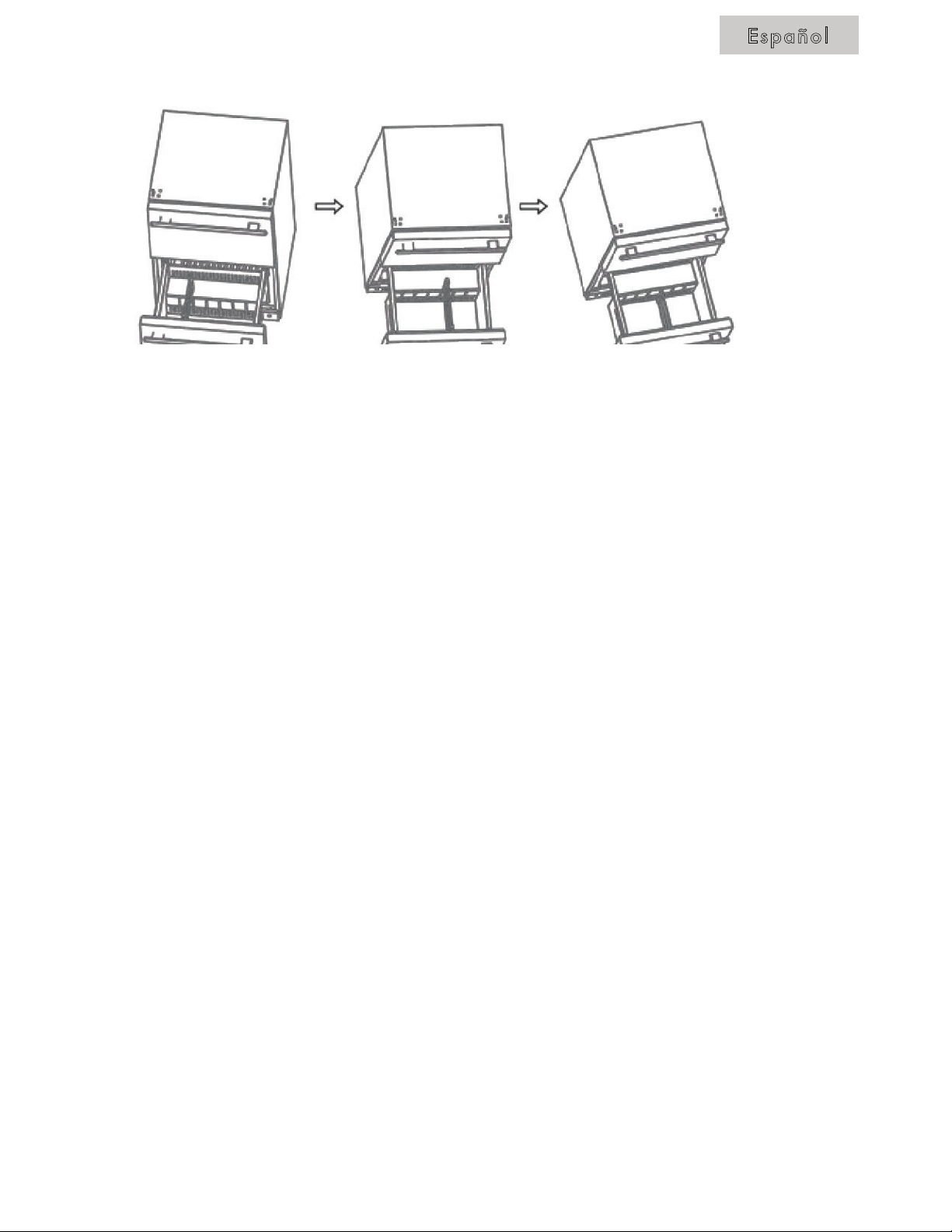

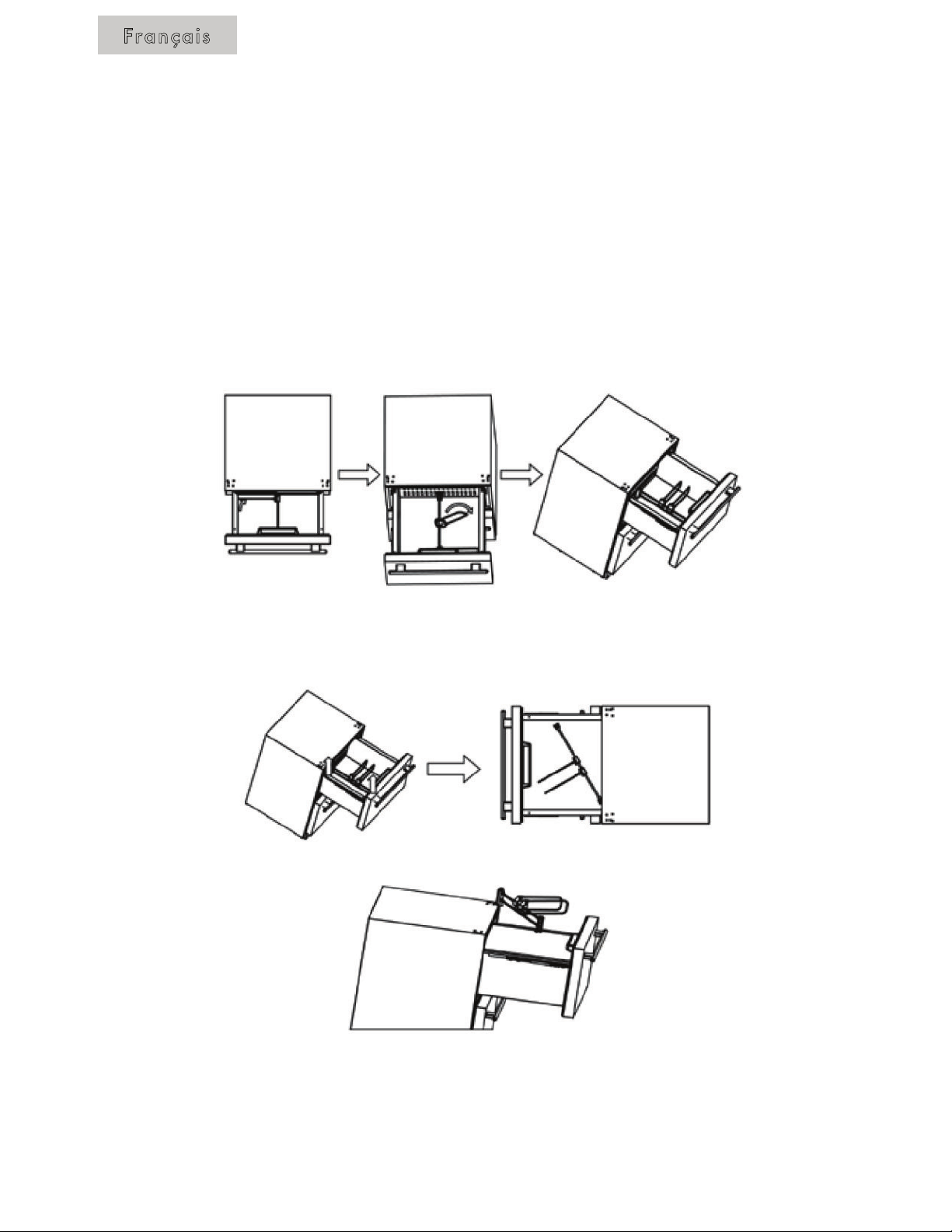

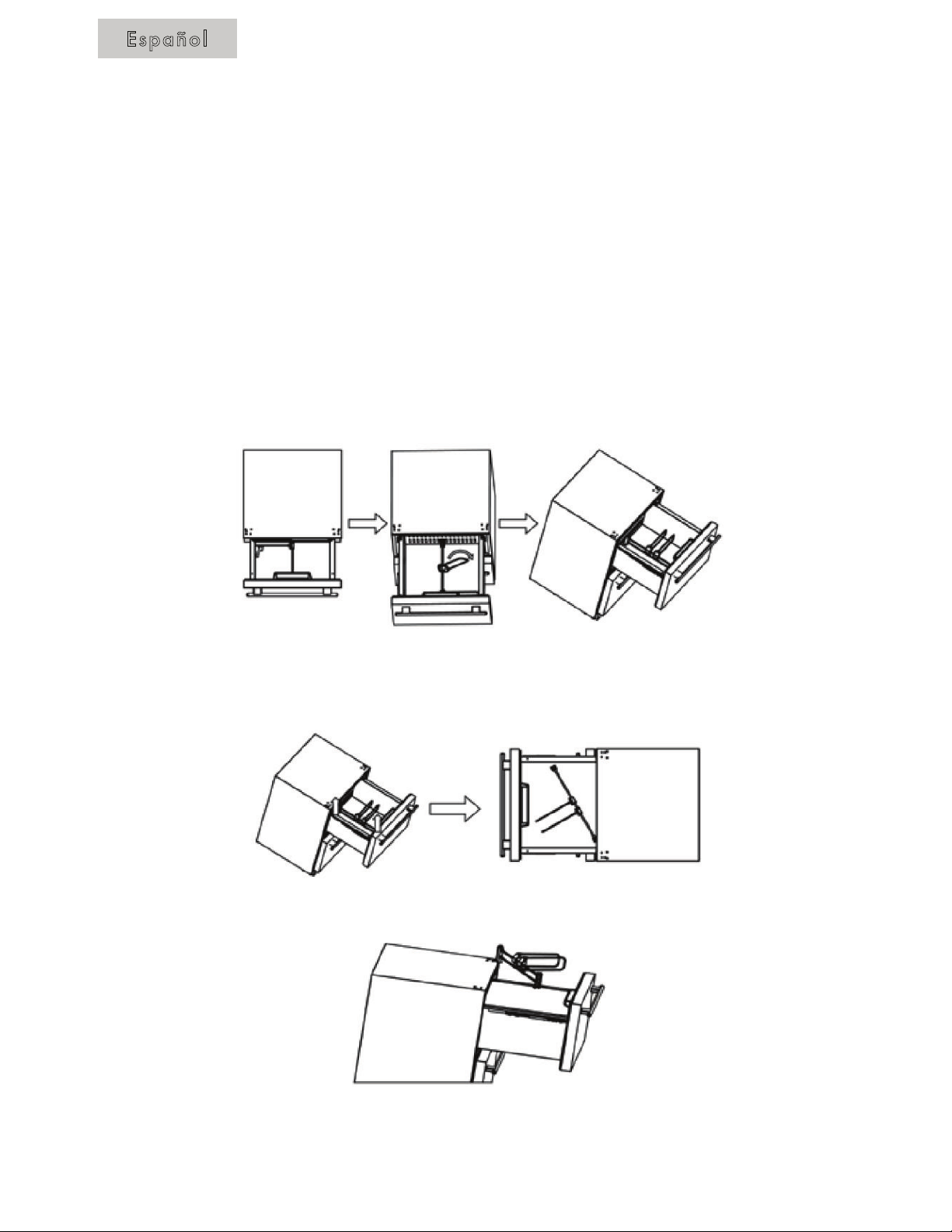

1. Pull the upper drawer open. Refer to the illustrations below. Remove crisper
and set aside. Then place drawer dividers to one side as illustrated.
2. With two hands, lift up on the metal drawer divider rod to remove from the
slots in the front and rear of the drawer. Once the drawer divider rod is free
from the slots(as illustrated), turn and lift as not to hit the control panel.
3. Take the drawer divider assembly out of the upper compartment and place
safely aside.
Note: After completing these three steps please close the upper drawer to avoid
damage to your person and product during installation.
Pre-Installation Instructions
Note: Allow the unit to sit on its base for at least one hour before installation.
English
4. Another set of anti-tip brackets for side installation is provided as option
when the counter top is granite and hard to fix by screws. This set of brackets
include two anti-tip brackets and eight screws for installation on left side and
right side of the cabinet. Below illustration shows this, the drawer needs to be
open to perform this procedure.
Right side
Left side
Kitchen
Cabinet
Screwdriver
Kitchen
Cabinet
Screwdriver
30~50
SCREW
ANTI-TIP BRACKET
ANTI-TIP BRACKET
SCREW
ANTI-TIP BRACKET
SCREW

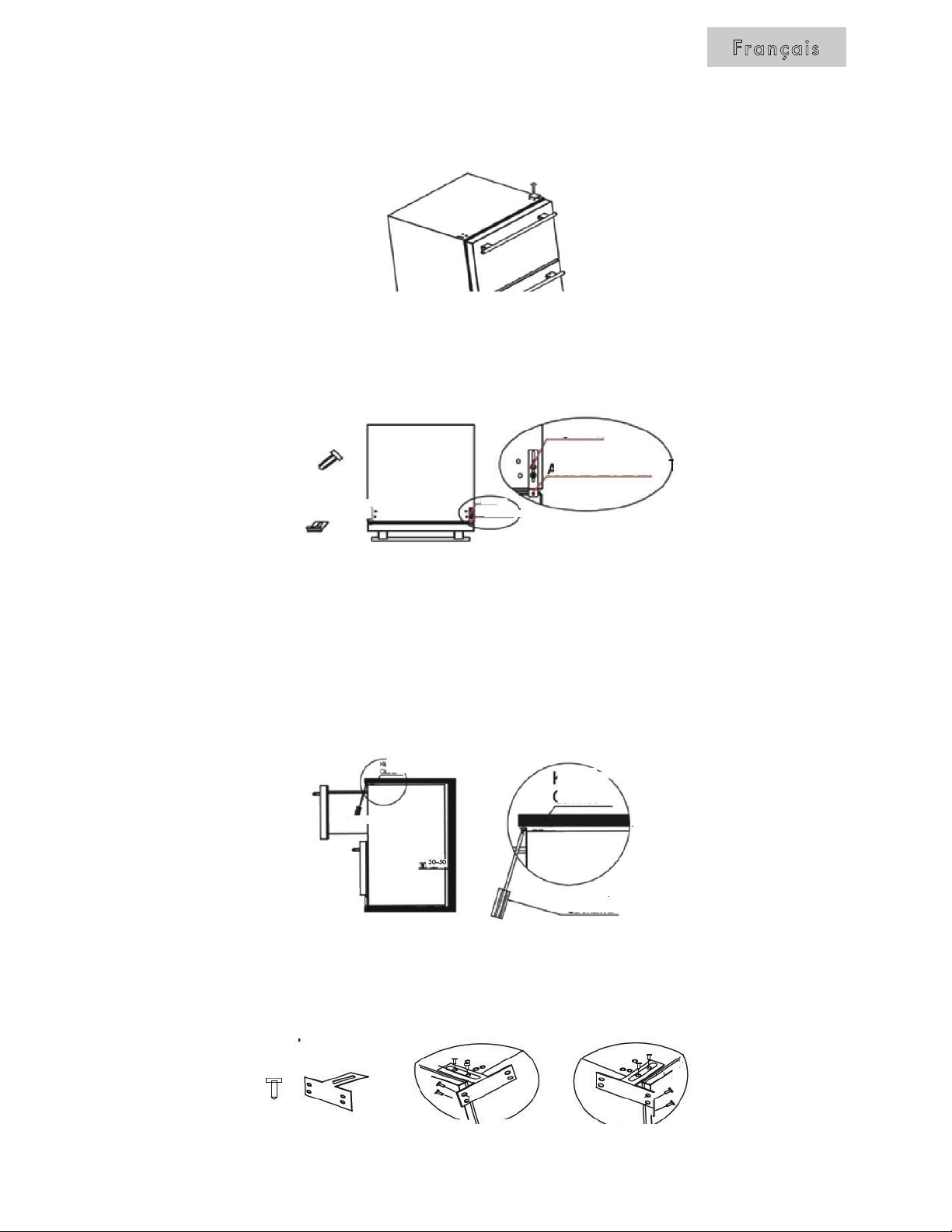

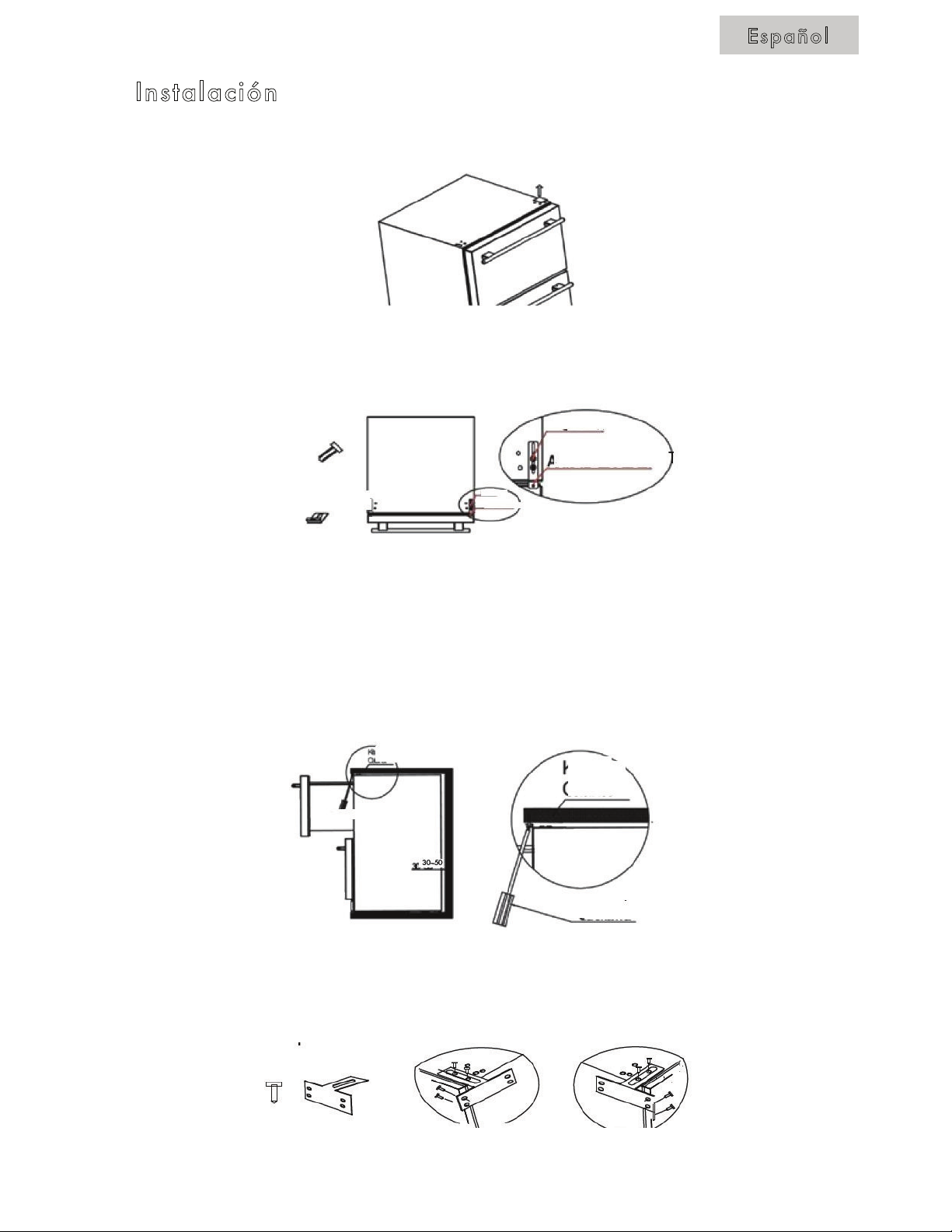

Installation
1.
Take off hinge cover(Part #1, page 3) with upwards motion. Refer to illustration
below:
2.
Take the anti-tip bracket and screws from the accessory bag. Tighten the anti-tip
bracket on the top of the product with screws as follows in the illustration.
Note: Follow instructions properly or you may do damage to product.
Pull upper drawer open and attach the anti-tip bracket to counter by screw
3.
as seen below. Adjustment of the leveling legs under the unit may be
necessary for a proper fit in the cabinet opening. Start with the rear legs(if
necessary) before you slide the unit fully into the opening-rise or lower the
rear legs to make the unit fit properly. Then carefully slide the unit into opening
as not to damage accidently cabinetry or the floor. Then perform the same
adjustments to the front leveling legs to bring the front of unit to the proper
level to install the anti-tip bracket and fit evenly under the counter.
5
Interior Parts
the
compa
vice
versa.
vice
vers
a.
The upper compartment is seperated by a divider fastened to the bin cradle of the
upper compartment.Those two dividers can be adjusted left and right, also back
and front. For left and right adjust: rotate directly. For back and front: you should
push the “PUSH”(see illustration) button in middle connector and move it back to front.
If you want to clean your refrigerator, you can remove the shelf following steps located
in section “Preparation
before installation”.
The drawers are designed to hold up to 44.1 pounds / 20KG of food items.
Crisper
One cripser with cover is located in upper drawer.
Purpose: Convenient storage of fresh vegetables. The user can remove the crisper
if it is not needed.

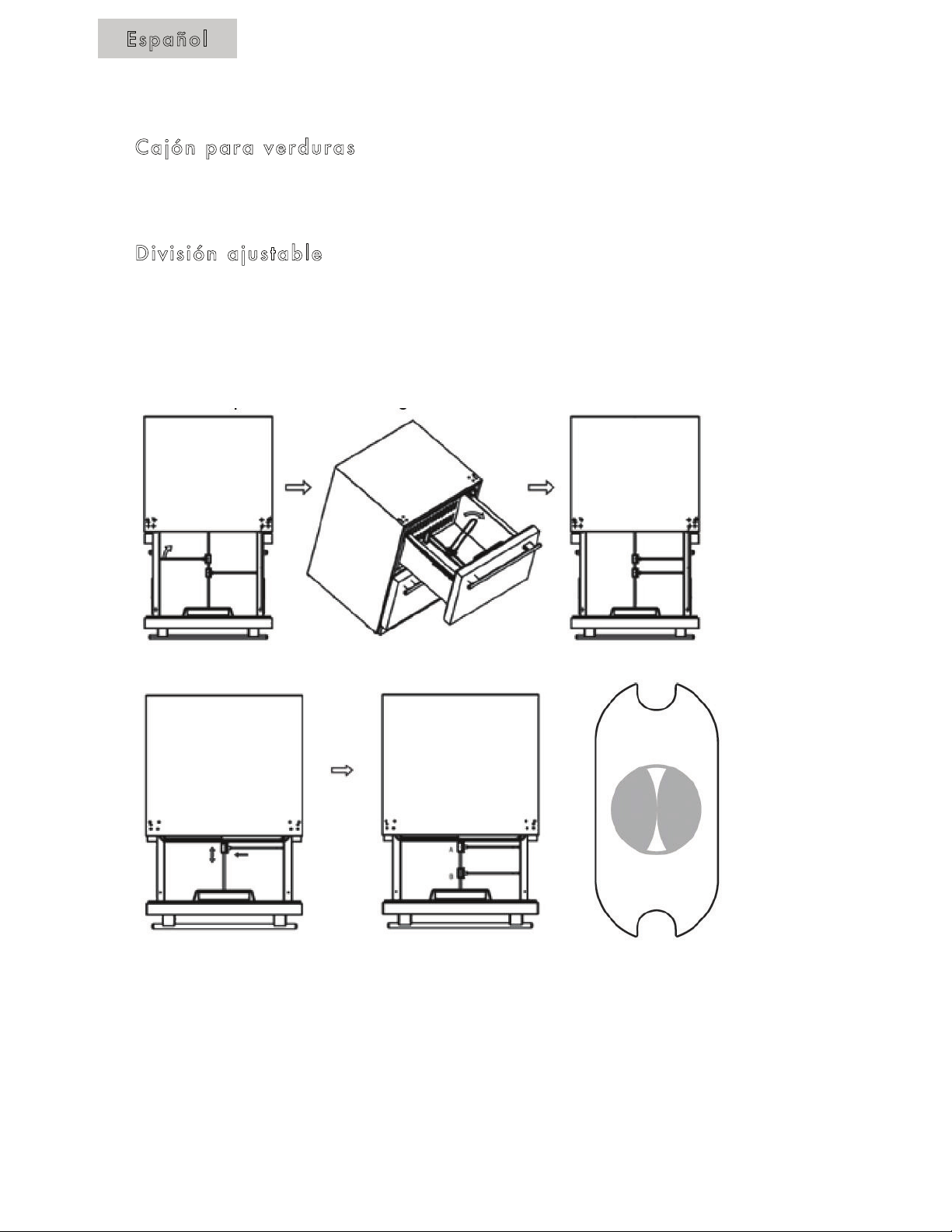

Adjustable Divider
There is an adjustable divider in each drawer. User can adjust them for flexibility
in food storage. The user can remove the dividers if they are not needed.
English
Note:
Separate the compartment to left and right or vice versa.
Separate the compartment to back and front or vice
Keep divider in a safe place if removed from the unit away from children.
versa.
6
English
Purpose: User can separate the upper compartment with divider according to
personal needs. This feature also allows to keep foods from falling
down or spilling when the drawers are opened or closed.

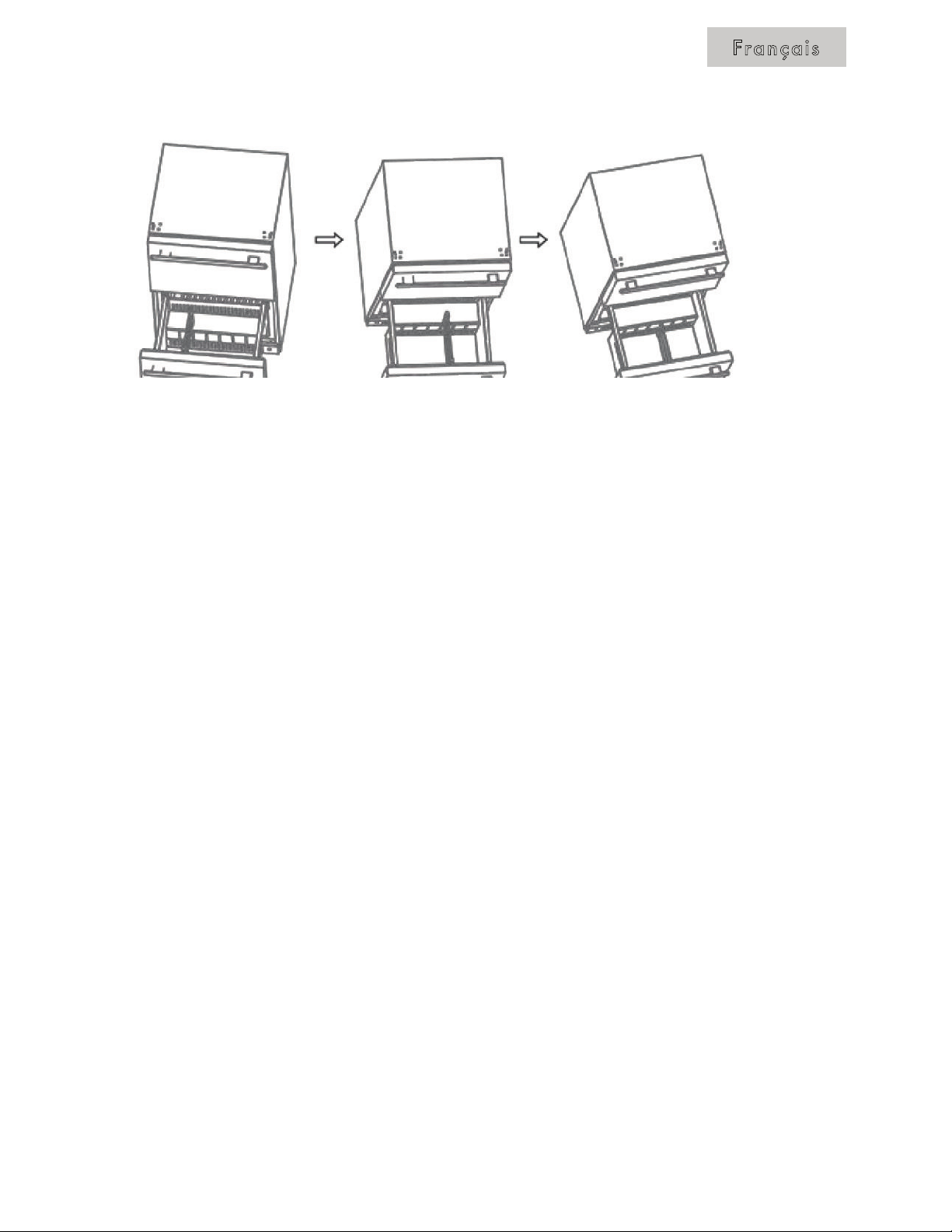

Adjust the divider in lower compartment by referring to illustration:
The divider in lower compartment is fixed between the embossments of front and
back wall of drawer.You can choose different embossments to divide into different
spaces in drawer.
Purpose: Separate the lower compartment with divider according to personal needs.
7
8
English

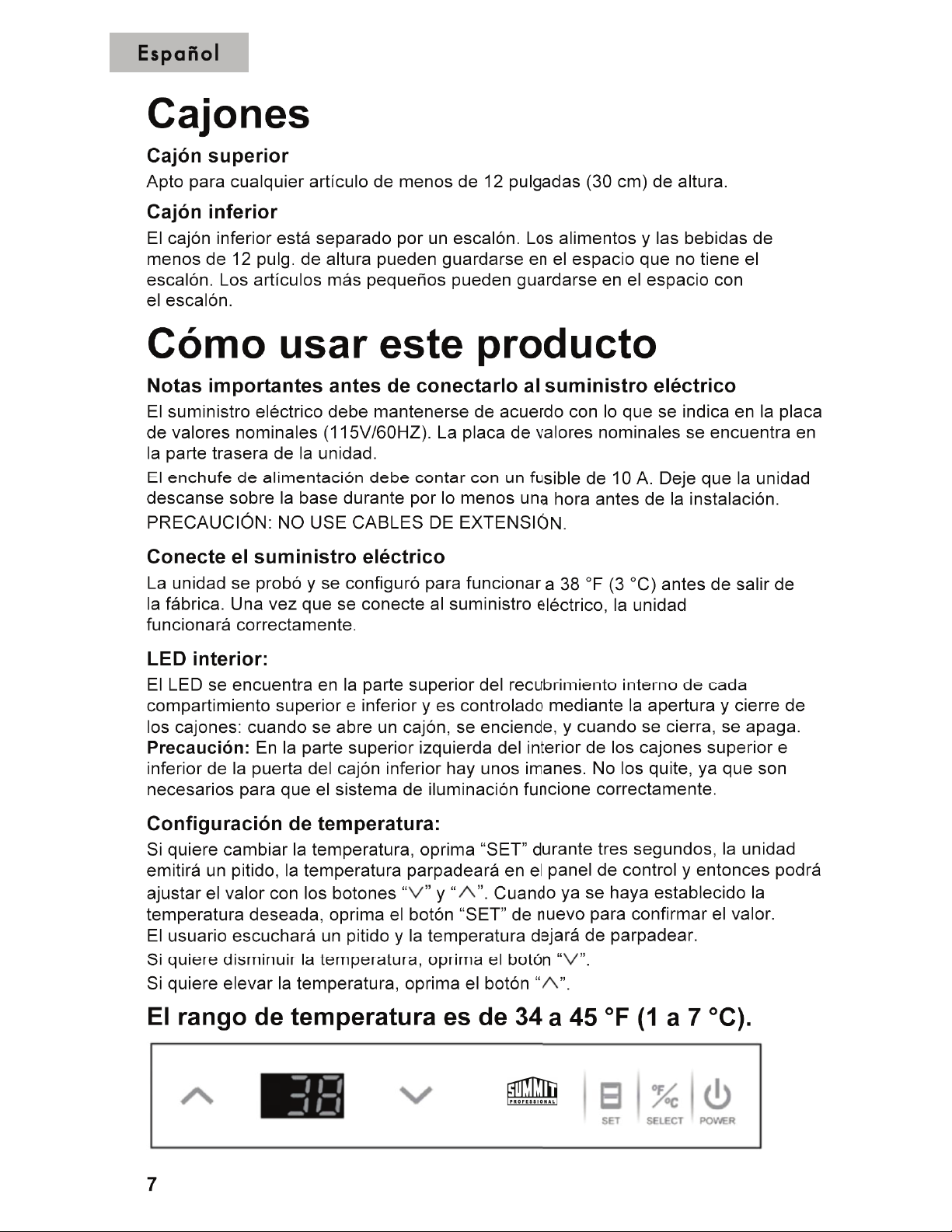

How to use this product
Important Notes Before You Connect the Power Supply
Actual power supply should be kept in accordance with marks on rating
plate(115V/60HZ). Rating plate is on back of unit.
Power socket should be equiped with fuse of 10A. Allow the unit to sit on its
base for at lease one hour before installation.
CAUTION: DON'T USE EXTENSION CORDS
Connect the power supply
Unit is tested and set to be 38ºF before leaving the factory. When connected
with the power supply, unit will work properly.
Interior LED bulb:
LED bulb is located on top of interior liner in each upper and lower
compartment. It is controlled by drawer opening and closings: when drawer
is open, it’s on, when drawer is closed, it’s off.
.
Caution:
There are magnets that are affixed on left side of interior upper
drawer and bottom of lower drawer door. Don’t remove them as they are
required for proper functioning of the light system.
Temperature setting:
If you want to change temperature, press “SET” for three seconds, the unit
will beep, temperature will flash in control panel, then you can adjust the
figure using the “ ” and “ ” buttons. When desired temperature is set, press
the “SET” button again to confirm your setting. The user will hear a beep and
the temperature will no longer flash.
If you want to lower the temperature, press the " " button.
If you want to raise the temperature, press the " " button.

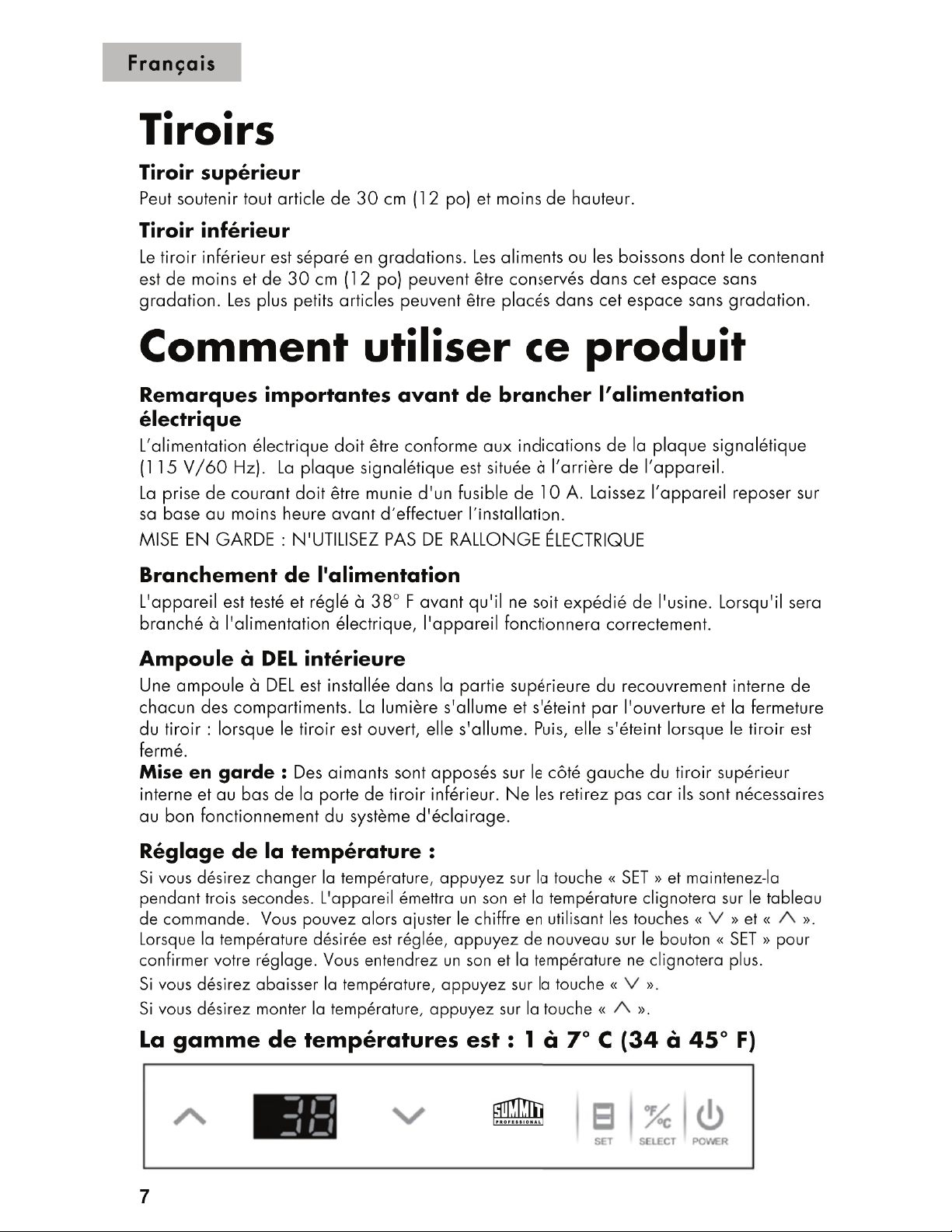

Drawers
Upper Drawer
Can hold any item under 12 inches tall.
Lower Drawer
Lower drawer is separated by step. Foods or beverage whose height is less
than 12 inches can be kept in the space without step. Smaller items can
be
kept in space with step.
Temperature range is : 34-45ºF (1-7ºC)
p
g
9
English
Degree Centigrade and Fahrenheit Conversion:
Press and hold “SELECT” for 3 seconds, temperature display will change
from Fahrenheit to Centigrade degree, the unit will beep once. Press and hold “SELECT”
for 3 seconds,it will change form Centigrade back to Fahrenheit, the unit will respond
with a beep again.
Power switch:
Display panel has power button. If you want to stop unit from working for a short
time or to restart,press and hold "POWER" for 3 seconds to turn on and off.
Note:
If you want to stop the unit from working for an extended period of time,
please shut off
unit,
unplug the unit, remove food, clean refrigerator, and
leave drawer of unit slightly open to prevent odors.
Sabbath mode:
Press and hold " " and " " at the same time for 3 seconds, the unit will beep
once, display panel will flash 5 times and stop. This indicates that the unit
has entered Sabbath mode.In this mode, normal cooling operations still take
place(compressor,magnetic valve,fan,heater strip), but all luminous equipment
including display panel, and LED bulb will shut off no matter if door is opening or
closing.
Press and hold " " and " " at the same time for 3 seconds, after display panel
flashes 5 times, you can exit from Sabbath mode.
Note:
This mode is available for the observance of certain religious holidays.
Door Ajar Alarm:
Locations of screws
2. Remove the lower drawer.
3. Clean the drain hole illustrated below with a soft material such as cloth swab,
then install the lower drawer according to the reverse procedure as above.
Location of
drain hole
If the door of unit is ajar for more than 3 minutes, the system will give a beeping
alarm. If you want to stop it, please press “SET” button.
Auto Defrost:
Unit can defrost automatically: The water on back wall will drain into water tank
and be evaporated by the condenser.
Cleaning
Before cleaning, turn unit off.
Clean interior surfaces and accessories and outer frame with cold water and a
English
little baking soda.
Don’t clean with steam to avoid damage to product.
Don’t use abrasive, acidic and chemical cleanser.
Keep cleaning liquids away from electical equipment.
Clean and dry all accessories.
Clean drain hole which is between comparments of unit with a small and soft
material such as cotton swab. (Drain hole is located behind the lower drawer,
please refer to “Drawer Removal” section for these instructions.)

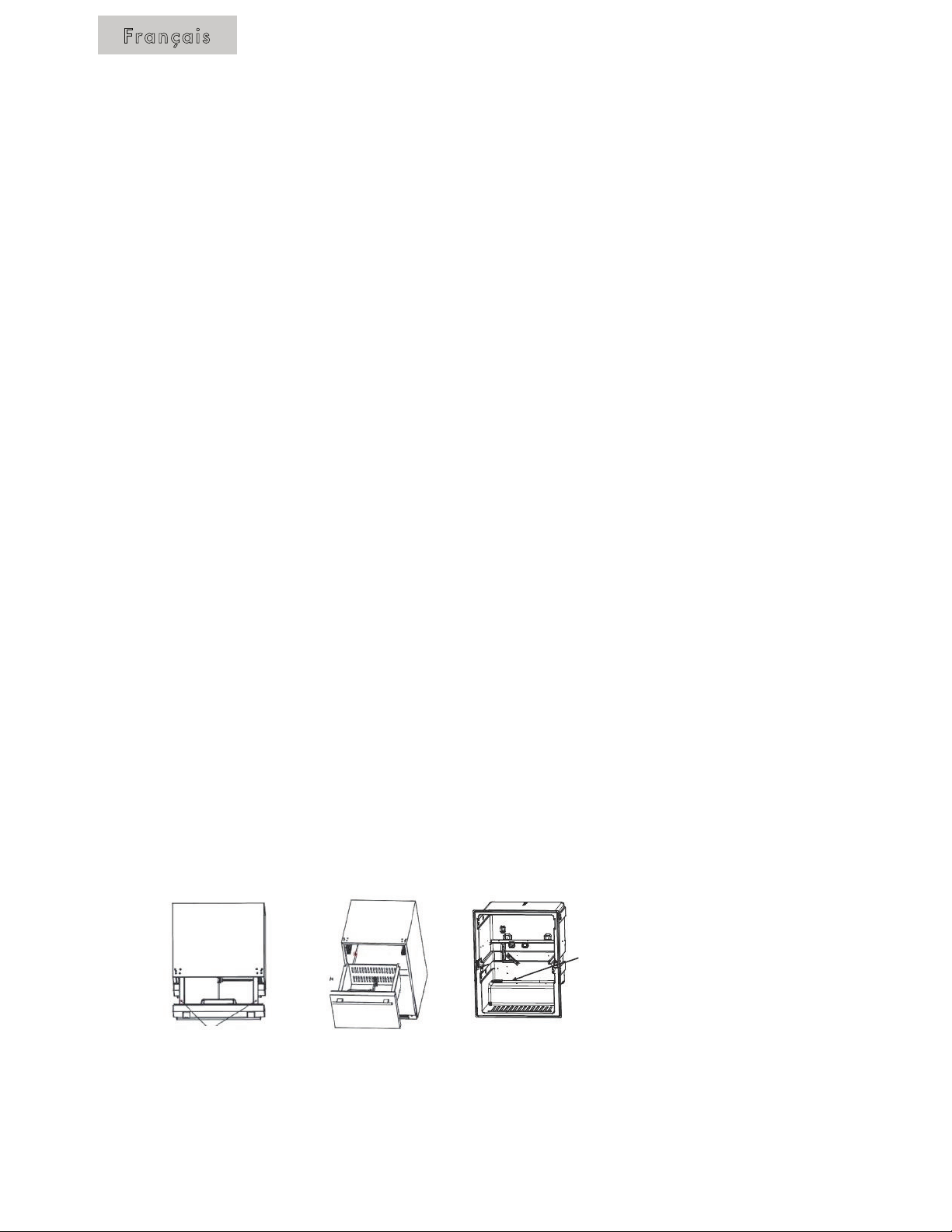

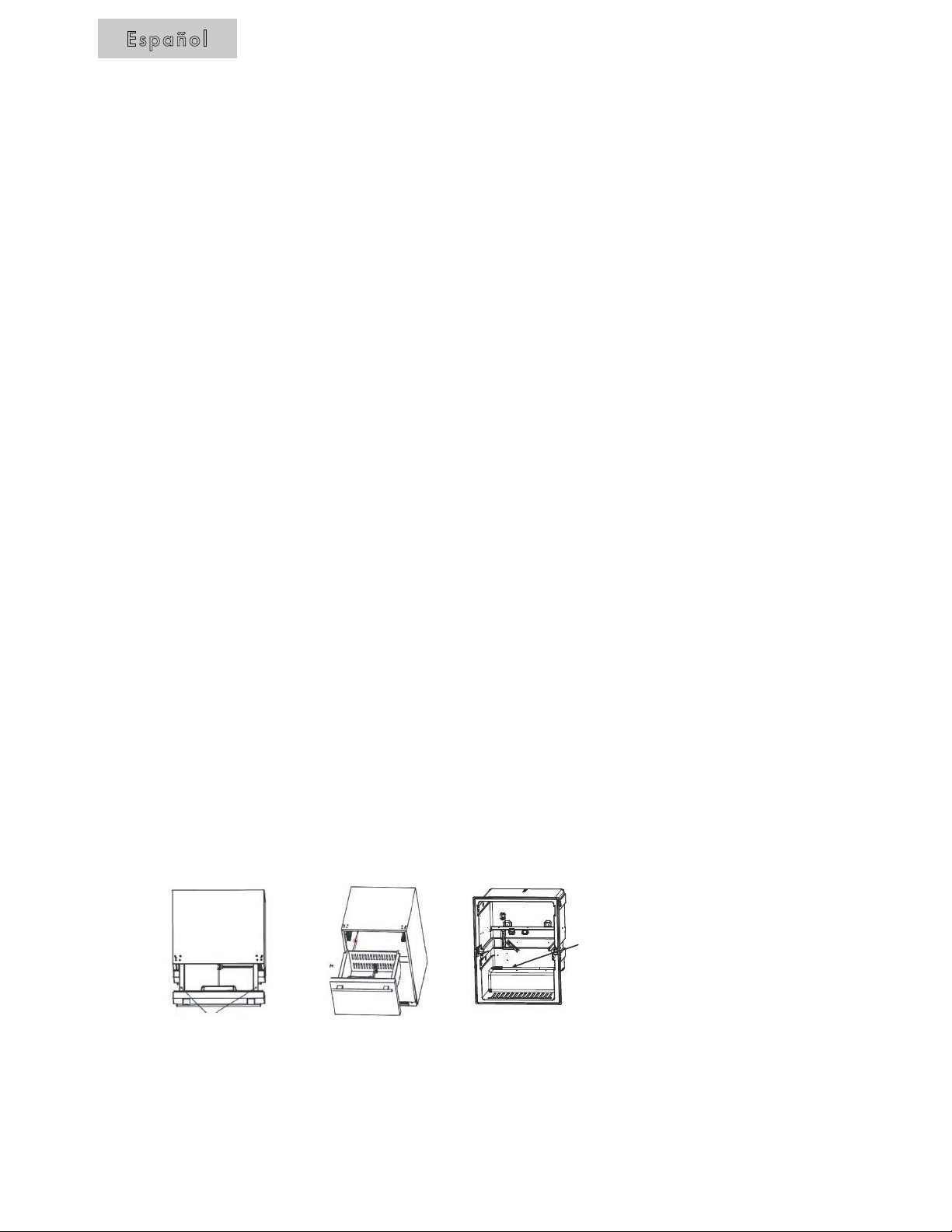

Drawer Removal
1. Pull out the lower drawer, dismount the two screws which fixed the lower
drawer to the slides with screwdriver in counterclockwise direction.
10
English
Troubleshooting
If Refrigerator does not operate:
Check if refrigerator is plugged in.
Check if there is power in the AC outlet, by checking the circuit breaker.
If Refrigerator is too warm:
Frequent door openings.
Allow time for recently added food items to reach desired temperature.
Check gaskets for proper seal.
Clean condenser coils.
Adjust temperature control to colder setting.
If Refrigerator runs too frequently:
This may be normal to maintain constant temperature during high temperature and
humid days.
Doors may have been opened frenquently or left open for an extended period
of time.
Clean condenser coils.
Check gasket for proper seal.
Check to see if doors are completely closed.
If Moisture build up on interior or exterior of the refrigerator:
This is normal during high humidity periods.
Prolonged or frequent door openings.
Check gaskets for proper seal.
If Refrigerator drawer does not shut properly:
Level the refrigerator.
Check for blockages e.g. beverage bottles, foods spill, etc.
11
Loading...
