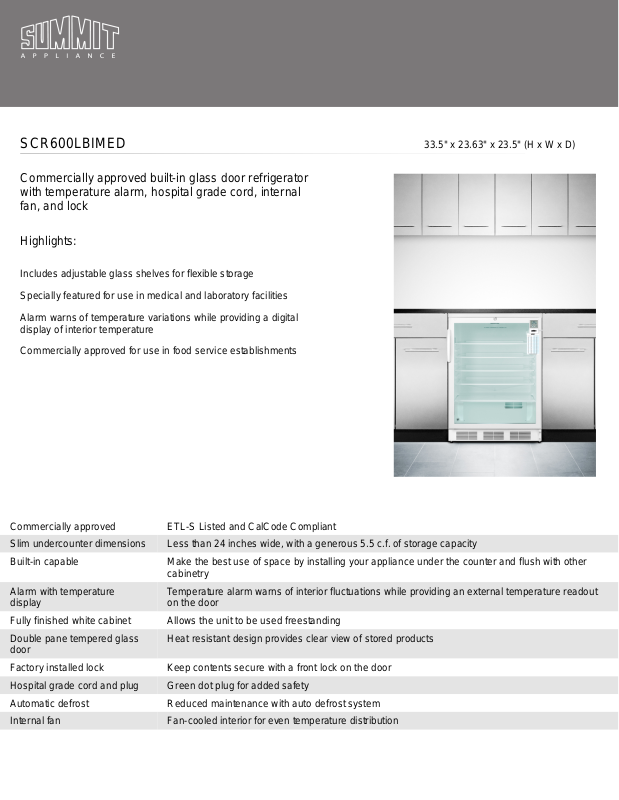

Summit SCR600LBIMED Specification Sheet

SCR600LBIMED 33.5" x 23.63" x 23.5" (H x W x D)

Commercially approved built-in glass door refrigerator
with temperature alarm, hospital grade cord, internal
fan, and lock

Highlights:

Includes adjustable glass shelves for flexible storage
Specially featured for use in medical and laboratory facilities
Alarm warns of temperature variations while providing a digital

display of interior temperature
Commercially approved for use in food service establishments

Commercially approved ETL-S Listed and CalCode Compliant
Slim undercounter dimensions Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with other

cabinetry

Alarm with temperature
display

Fully finished white cabinet Allows the unit to be used freestanding
Double pane tempered glass

door
Factory installed lock Keep contents secure with a front lock on the door
Hospital grade cord and plug Green dot plug for added safety
Automatic defrost Reduced maintenance with auto defrost system
Internal fan Fan-cooled interior for even temperature distribution

Temperature alarm warns of interior fluctuations while providing an external temperature readout
on the door

Heat resistant design provides clear view of stored products

Specifications:

Height 33.5 up to 34.5"
Width 23.63"
Depth 23.5"
Capacity 5.5 cu.ft.
Ext Depth with Handle 25.5"
Interior Height 1 26.0"
Interior Width 1 20.75"
Interior Depth 1 17.5"
Comp Step Height 6.0"
Comp Step Width 20.75"
Comp Step Depth 5.0"
Height Adjustable true
Shipping Weight 117.0 lbs.
Canadian Electrical Safety ULC
US Electrical Safety UL
Amps 1.3
Reversible Factory Reversible
Door Swing RHD
Shelf Quantity 4
Adjustable Shelf true
Shelf Type Glass
Defrost Type Automatic
Depth with door at 90° 46.0"
Fan Type Interior and Exterior
Thermostat Type Dial
Light true
Freon Oz 1.8
Freon Type R134a
Level Legs Quantity 4
Low Side PSI 70.0
High Side PSI 285.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
