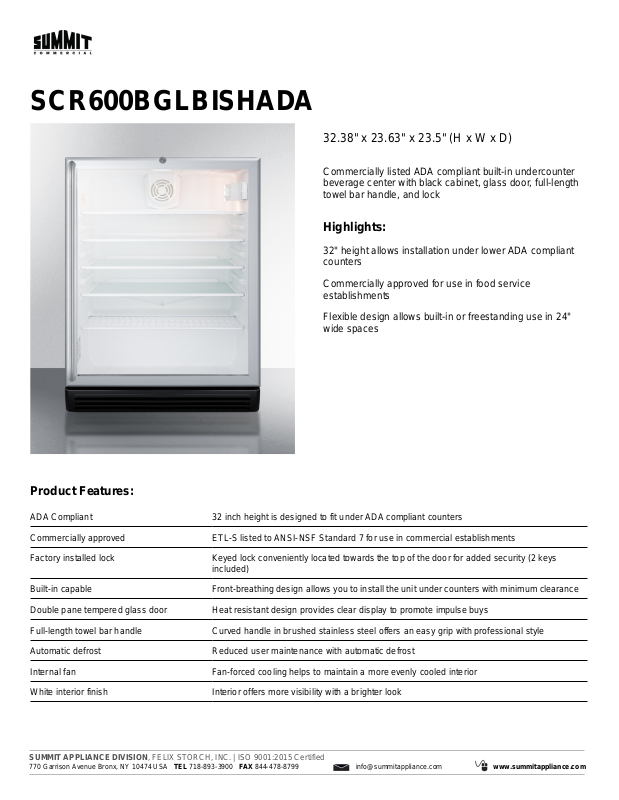

Summit SCR600BGLBISHADA Specifications

SCR600BGLBISHADA

32.38" x 23.63" x 23.5" (H x W x D)

Commercially listed ADA compliant built-in undercounter
beverage center with black cabinet, glass door, full-length
towel bar handle, and lock

Highlights:

32" height allows installation under lower ADA compliant
counters

Commercially approved for use in food service
establishments

Flexible design allows built-in or freestanding use in 24"
wide spaces

Product Features:

ADA Compliant 32 inch height is designed to fit under ADA compliant counters
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Factory installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys

included)
Built-in capable Front-breathing design allows you to install the unit under counters with minimum clearance
Double pane tempered glass door Heat resistant design provides clear display to promote impulse buys
Full-length towel bar handle Curved handle in brushed stainless steel offers an easy grip with professional style
Automatic defrost Reduced user maintenance with automatic defrost
Internal fan Fan-forced cooling helps to maintain a more evenly cooled interior
White interior finish Interior offers more visibility with a brighter look

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SCR600BGLBISHADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 0.67oz.
High Side PSI 124.0
Low Side PSI 30.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 26.0" (66 cm)
Interior Width 20.75" (53 cm)

ULC

Exterior

Interior Depth 17.5" (44 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 20.75" (53 cm)
Compressor Step Depth 5.0" (13 cm)
