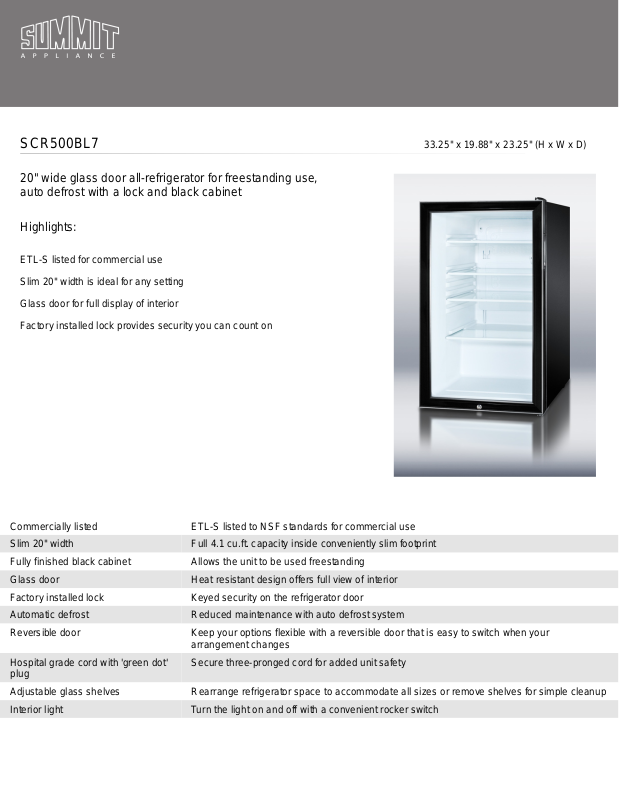

Summit SCR500BL7 User Manual

SCR500BL7 33.25" x 19.88" x 23.25" (H x W x D)

20" wide glass door all-refrigerator for freestanding use,
auto defrost with a lock and black cabinet

Highlights:

ETL-S listed for commercial use
Slim 20" width is ideal for any setting
Glass door for full display of interior
Factory installed lock provides security you can count on

Commercially listed ETL-S listed to NSF standards for commercial use
Slim 20" width Full 4.1 cu.ft. capacity inside conveniently slim footprint
Fully finished black cabinet Allows the unit to be used freestanding
Glass door Heat resistant design offers full view of interior
Factory installed lock Keyed security on the refrigerator door
Automatic defrost Reduced maintenance with auto defrost system
Reversible door Keep your options flexible with a reversible door that is easy to switch when your

arrangement changes

Hospital grade cord with 'green dot'
plug

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Interior light Turn the light on and off with a convenient rocker switch

Secure three-pronged cord for added unit safety

Specifications:

Height 33.25"
Width 19.88"
Depth 23.25"
Capacity 4.1 cu.ft.
Interior Height 1 29.0"
Interior Width 1 17.0"
Interior Depth 1 17.0"
Weight 57.0 lbs.
Energy Usage/Year 406.0 kWh/year
Canadian Electrical Safety ETL-C
Amps 1.4
US Electrical Safety ETL
Voltage/Frequency 115 V AC/60 Hz
Reversible Yes
Door Swing RHD
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Glass
Wheel Quantity 2
Defrost Type Automatic
Thermostat Type Dial
Light true
Level Legs Quantity 2
High Side PSI 205.0
Freon Type R134a
Low Side PSI 103.0
Freon Oz 1.75
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
