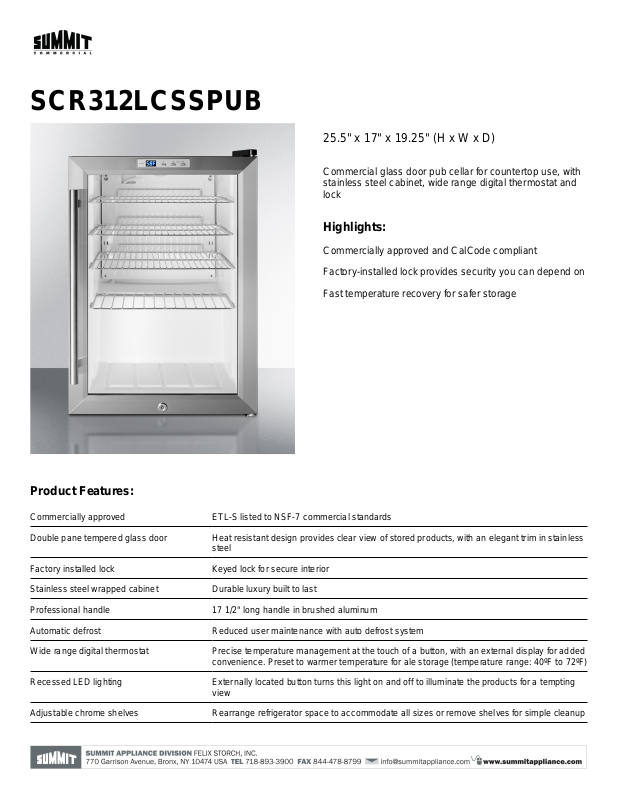

Summit SCR312LCSSPUB Brochure

SCR312LCSSPUB

25.5" x 17" x 19.25" (H x W x D)

Commercial glass door pub cellar for countertop use, with
stainless steel cabinet, wide range digital thermostat and
lock

Highlights:

Commercially approved and CalCode compliant
Factory-installed lock provides security you can depend on
Fast temperature recovery for safer storage

Product Features:

Commercially approved ETL-S listed to NSF-7 commercial standards
Double pane tempered glass door Heat resistant design provides clear view of stored products, with an elegant trim in stainless

steel
Factory installed lock Keyed lock for secure interior
Stainless steel wrapped cabinet Durable luxury built to last
Professional handle 17 1/2" long handle in brushed aluminum
Automatic defrost Reduced user maintenance with auto defrost system
Wide range digital thermostat Precise temperature management at the touch of a button, with an external display for added

convenience. Preset to warmer temperature for ale storage (temperature range: 40ºF to 72ºF)
Recessed LED lighting Externally located button turns this light on and off to illuminate the products for a tempting

view
Adjustable chrome shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

SCR312LCSSPUB Specifications:

Overview

Height to Cabinet 25.5"
Height to Hinge Cap 26.13"
Width 17.0"
Depth 19.25"
Depth with Handle 21.0"
Depth with door at 90° 35.25"
Capacity 2.5 cu.ft.
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 100.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible No
Adjustable Shelves Yes
Shelf Type Wire
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 1.82 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 1 20.5"
Interior Width 1 13.5"
Interior Depth 1 14.75"
Compressor Step Height 7.5"
Compressor Step Width 13.5"
Compressor Step Depth 5.25"

ETL-C

Level Legs 2
