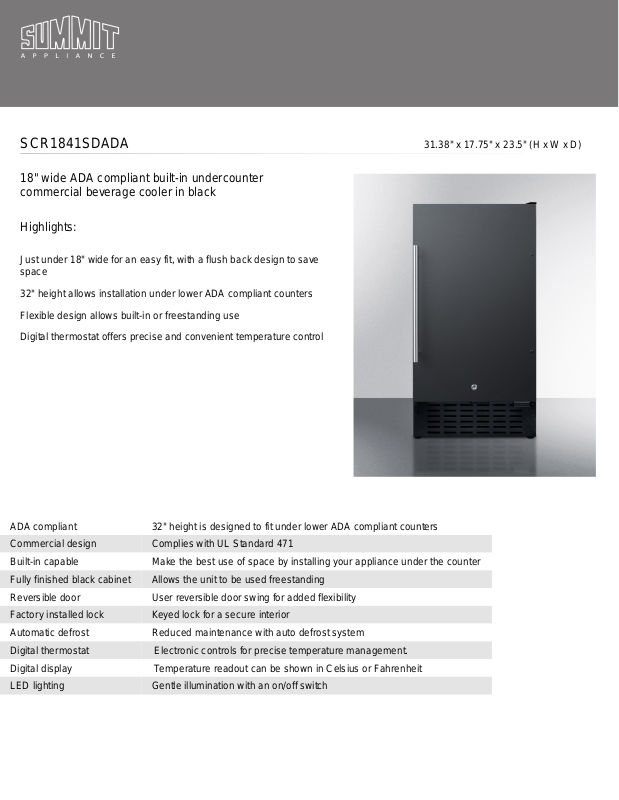

Summit SCR1841SDADA Specification Sheet

SCR1841SDADA 31.38" x 17.75" x 23.5" (H x W x D)

18" wide ADA compliant built-in undercounter
commercial beverage cooler in black

Highlights:

Just under 18" wide for an easy fit, with a flush back design to save
space

32" height allows installation under lower ADA compliant counters
Flexible design allows built-in or freestanding use
Digital thermostat offers precise and convenient temperature control

ADA compliant 32" height is designed to fit under lower ADA compliant counters
Commercial design Complies with UL Standard 471
Built-in capable Make the best use of space by installing your appliance under the counter
Fully finished black cabinet Allows the unit to be used freestanding
Reversible door User reversible door swing for added flexibility
Factory installed lock Keyed lock for a secure interior
Automatic defrost Reduced maintenance with auto defrost system
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination with an on/off switch

SCR1841SDADA Specifications:

Height 31.38"
Width 17.75"
Depth 23.5"
Capacity 3.3 cu.ft.
Ext Depth with Handle 25.25"
Interior Height 1 23.0"
Interior Width 1 14.25"
Interior Depth 1 18.0"
Comp Step Height 4.5"
Comp Step Width 14.25"
Comp Step Depth 5.0"
Shipping Weight 110.0 lbs.
Weight 90.0 lbs.
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Canadian Electrical Safety CSA
US Electrical Safety CSA
Reversible Yes
Door Swing RHD
Shelf Quantity 4
Adjustable Shelf true
Shelf Type Chrome
Defrost Type Automatic
Depth with door at 90° 39.75"
Thermostat Type Digital
Light true
Fan Type Interior and Exterior
Level Legs Quantity 2
Refrigerant Type R134a
Freon Oz 2.11
Low Side PSI 103.0
High Side PSI 270.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
