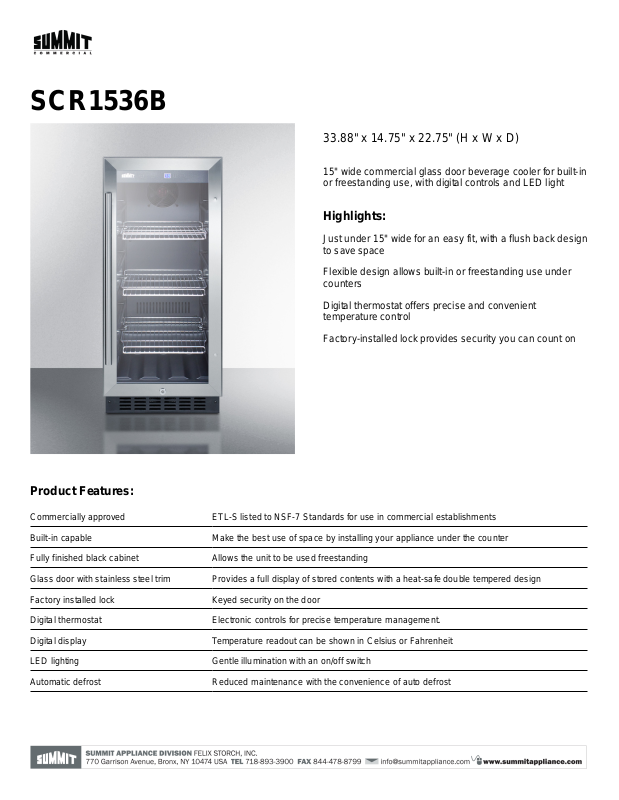

Summit SCR1536B Specification Sheet

SCR1536B

33.88" x 14.75" x 22.75" (H x W x D)

15" wide commercial glass door beverage cooler for built-in
or freestanding use, with digital controls and LED light

Highlights:

Just under 15" wide for an easy fit, with a flush back design
to save space

Flexible design allows built-in or freestanding use under
counters

Digital thermostat offers precise and convenient
temperature control

Factory-installed lock provides security you can count on

Product Features:

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable Make the best use of space by installing your appliance under the counter
Fully finished black cabinet Allows the unit to be used freestanding
Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock Keyed security on the door
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination with an on/off switch
Automatic defrost Reduced maintenance with the convenience of auto defrost

SCR1536B Specifications:

Overview

Height 33.88"
Width 14.75"
Depth 22.75"
Depth with Handle 24.63"
Depth with door at 90° 36.25"
Capacity 3.0 cu.ft.
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.4
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 27.0"
Interior Width 12.0"
Interior Depth 17.5"

ETL-C
