Summit SCR1400WCSS User Manual

c

F

Write Serial No. (on lower left corner of inside

BEVERAGE COOLERS

RÉFRIGÉRATEURS VITRÉS

Models / Modèles: SCR1536B / SCR1005W / SCR1155W / SCR1400W

Instruction Manual / Mode d'emploi

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

AVANT L'EMPLOI, VEUILLEZ LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ

cabinet) here:

Inscrire le numéro de série ici (situé dans le coin
inférieur gauche de la vitrine à l'intérieur):

______________________________ ___ __

ET LES INSTRUCTIONS DE FONCTIONNEMENT.

Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

2

TABLE OF CONTENTS

Appliance Safety

3

Important Safeguards

3-4

Location of Parts

5-6

Installation Instructions

7-9

Before Using Your Appliance

7

Installation of Your Appliance

7

Electrical Connection

7-8

Extension Cord

8

Reversing the Door Swing of Your Appliance

8-9

Installing the Stainless Steel Handle

9

Operating Your Appliance

9-11

Control Panel

9-10

Interior Light

10

Sabbath Mode

10

Temperature Memory Function

10

Temperature Alarm / Door Alarm

10-11

Door Lock

11

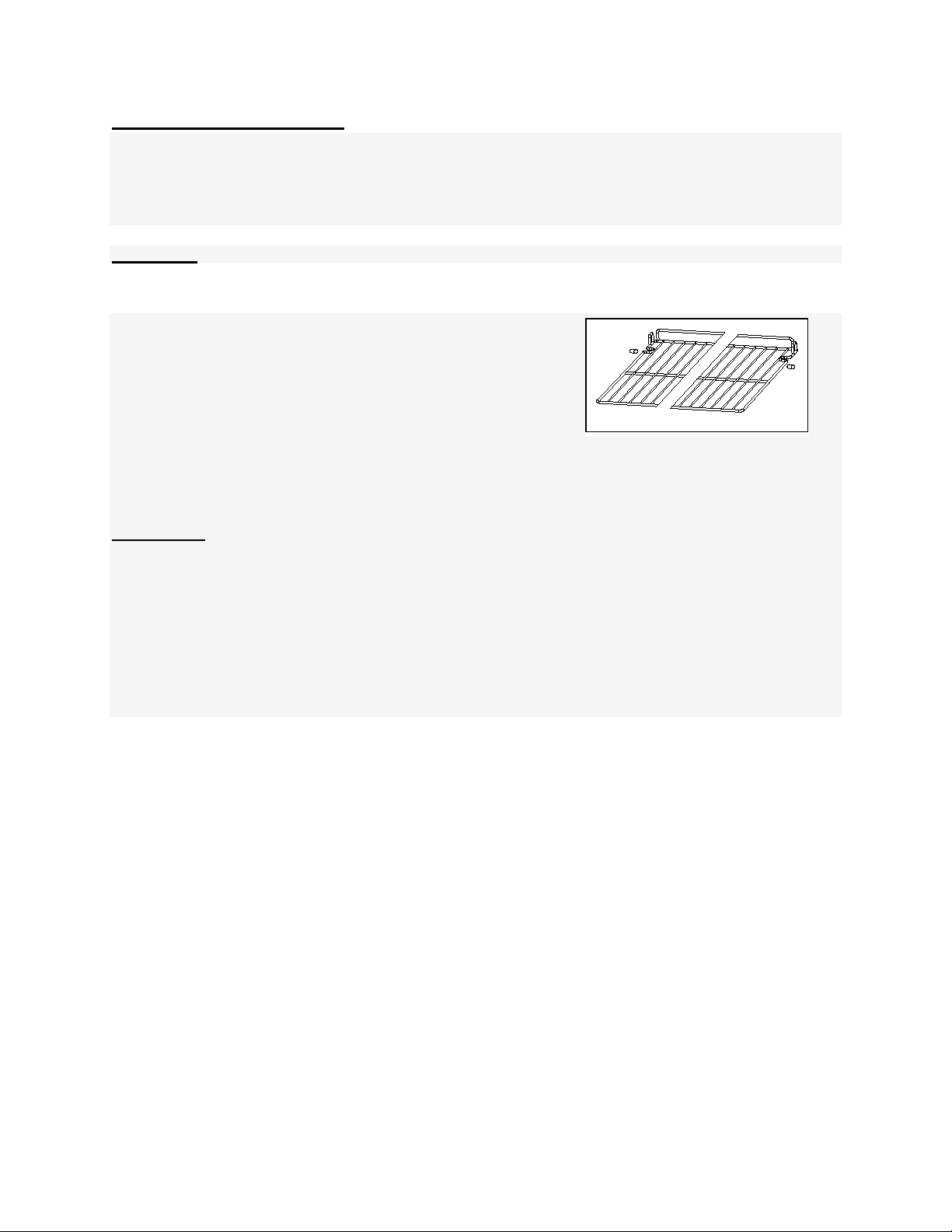

Shelves

11

Defrosting

11

Care and Maintenance

12

Cleaning Your Beverage Merchandiser

12

Power Failure

12

Vacation Time

12

Moving Your Appliance

12

Energy Saving Tips

12

Troubleshooting

13-14

Limited Warranty

15

Mode d'emploi en français

16-29

3

APPLIANCE SAFETY

Your safety and the safety of others ar e very important.

We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.

This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".

DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.

WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.

All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit serving only your appliance be provided. Use receptacles

that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with f lam mable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in

electrical shock or death.

4

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.

FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit
must be installed in an area protected from the elements, such as wind, rain, water spray or drips.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all electrical, water and drain connections in accordance with

state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.

• Do not kink or pinch the power supply cord of the appliance.

• The size of the fuse (or circuit breaker) should be 15 amperes.

• It is important that the appliance be leveled in order to work properly. You may need to make several

adjustments to level it.

• All installations must be in accordance with local plumbing code requirements.

• Make certain that the pipes are not pinched, kinked or damaged during installation.

• Check for leaks after connection.

• Never allow children to operate, play with or crawl inside the appliance.

• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage

or discolor the interior.

• Use this appliance only for its intended purpose as described in this Instruction Manual.

• Keep fingers out of the “pinch point” areas. Clearances between the doors and bet w een the doors

and cabinet are necessarily small. Be careful closing doors when children are in the area.

Risk of child entrapment!

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in the garage a few days”.

Before discarding your old refrigerator:

• Take off the doors

• Leave the shelves in place so that children may not easily climb inside.

- SAVE THESE INSTRUCTIO NS -

5

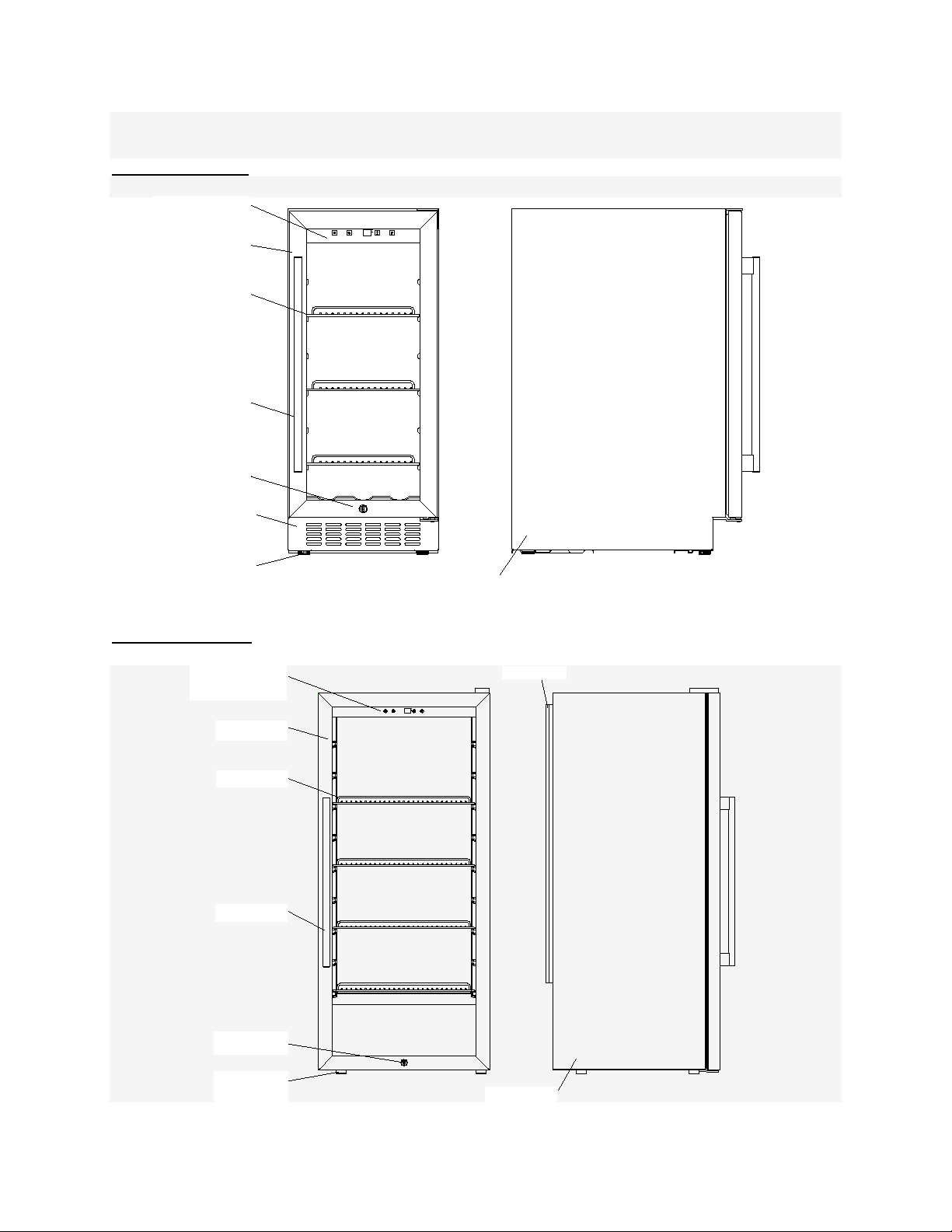

MODEL SCR1536B

Door

Shelves (3)

Digital Control

Handle

Security
Lock

Panel

Ventilation
Grille

Cabinet

Adjustable
Legs

c

F

Door

Shelves (4)

Digital Control

Handle

Condenser

Security

Lock

Panel

Cabinet

Adjustable

Legs

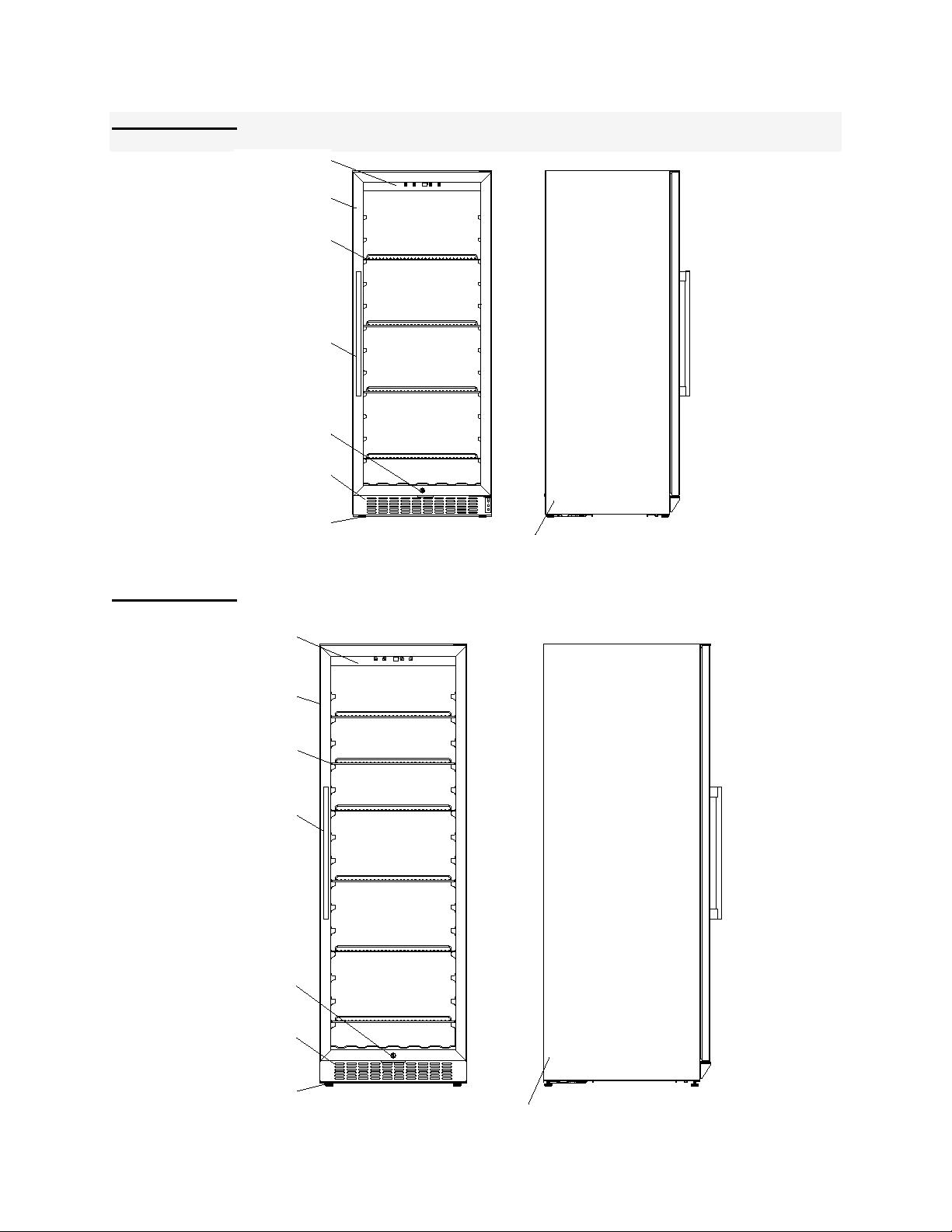

LOCATION OF PARTS

MODEL SCR1005W

6

MODEL SCR1155W

Door

Handle

Digital Control

Panel

Shelves (4)

Security
Lock

Cabinet

Ventilation

Grille

Adjustable
Legs

Door

Shelves (6)

Digital Control

Adjustable

Legs

Handle

Security
Lock

Panel

Cabinet

Ventilation
Grille

MODEL SCR1400W

7

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE

• Remove the exterior and interior packing.

• Before connecting the ap pliance to the power source, let it stand upright for approximatel y 2 hours.

This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

• Install the handle on the door. (See page 9.)

INSTALLATION OF YOUR APPLIANCE

• The appliance is designed for built-in or free-standing installation for SCR1536B and free-standing

installation only for SCR1155W, SCR1400W and SCR1005W.

• WARNING: Do not store or install the appliance outdoors.

• Place your Beverage Merchandiser on a floor that is strong enoug h to s upp or t it when i t is fully loaded.

To level the unit, adjust the front leveling legs.

• For freestanding install atio n, a clearance of at least 5 inches (127mm) of s pace for the back and sides

of the unit is suggested, which allo ws the pr oper air c irculation to coo l the com pressor and condenser
for energy savings. For built-in installati on
side, 1/16” (2mm) at the top and 2” (50mm) at the back to ensure proper service access and
ventilation. The air vent at the front of the appliance must never be covered or blocked in any way.

• NOTE: It is recom m ended t hat you do not insta ll the a ppliance near an o ven, r adi ator or other he ating

source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Don’t install in a location where the temperature will fall below 60°F (16°C). For best
performance, do not install the appliance behind a cabinet door or block the base grille.

• Avoid locating the unit in moist areas.

• Plug the Beverage Cooler into an exclusive, properly grounded wall outlet. Do not under any

circumstances cut or remove the third (groun d) prong from the po wer cord. An y questions concernin g
power and/or grounding should be directed toward a certified electrician or an authorized service
center.

ELECTRICAL CONNECTION

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electrician or an authorized service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped
with a three-prong pl ug which mates w ith standard three-prong wall outlets to minimize the possib ility of
electrical shock.

Do not under any circumstances cut or remove the third (ground) prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.

This appliance requires a s tandard 115/12 0 Volt AC ~ 60Hz three-prong grounded electr ical outlet. Have
the wall outlet and circu it checked b y a qualified electric ian to make s ure the outlet is prop erly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.

, you must allow at least ¼” (6.35mm) of clearance on each

WARNING

8

To prevent accidental injur y, the cord should be secured beh ind the appliance and not lef t exposed or
dangling.

The appliance should a l ways be p lug ged int o its o w n indi vi dua l electrical outlet which has a v olt age rati ng
that matches the rating label on the appliance. This provides the best performance and also prevents
overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion dam age along its length or at either end.
When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not
use an extension cord with this appliance. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

REVERSING THE DOOR SWING OF YOUR APPLIANCE (ONLY FOR MODEL SCR1536B)

This unit has the capability of the door opening from either the left or right side. The unit is delivered to
you with the door opening from the left side. Should you desire to reverse the opening direction, please
follow the reversal instructions shown below.

NOTE: All parts removed must be saved to allow the door swing to be reversed.

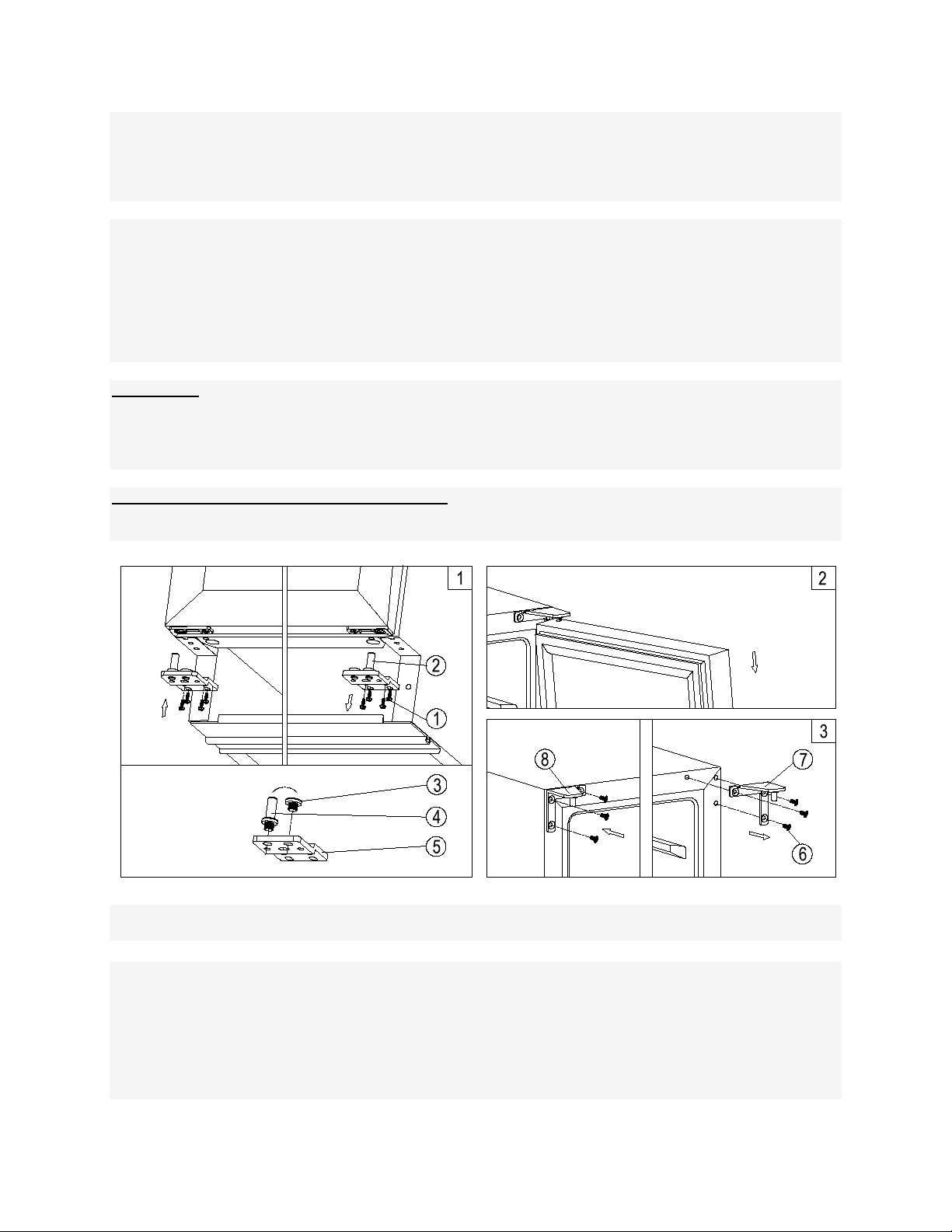

1. Remove the bottom hinge 2 by unscrewing the four lock screws 1. Be car eful to hold th e door firmly
after removing the screws. (Fig. 1)

2. Gently pull down to rem ove the door from the right top hinge and plac e it on a padded surface to
avoid the risk of damage. Then remove right top hinge 7 by unscrewing three screws 6 . (Figs. 2 & 3)

3. Unscrew and transfer pins 4 and 3 of the hinge plate 5 to the opposite side. (Fig. 1)

4. Pop out the cover caps on the left side of the cabinet and use them to cover the s crew holes on the

right hand side.

5. Screw the alternative left top hinge 8, included in the fittings, on the left hand side of cabinet. (Fig. 3)

9

6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the left

1

2

3

designated position and tighten it after the door is leveled. (Fig. 1)

7. Remove the handle from the left side of the door and install it on the right side. (See next section.)

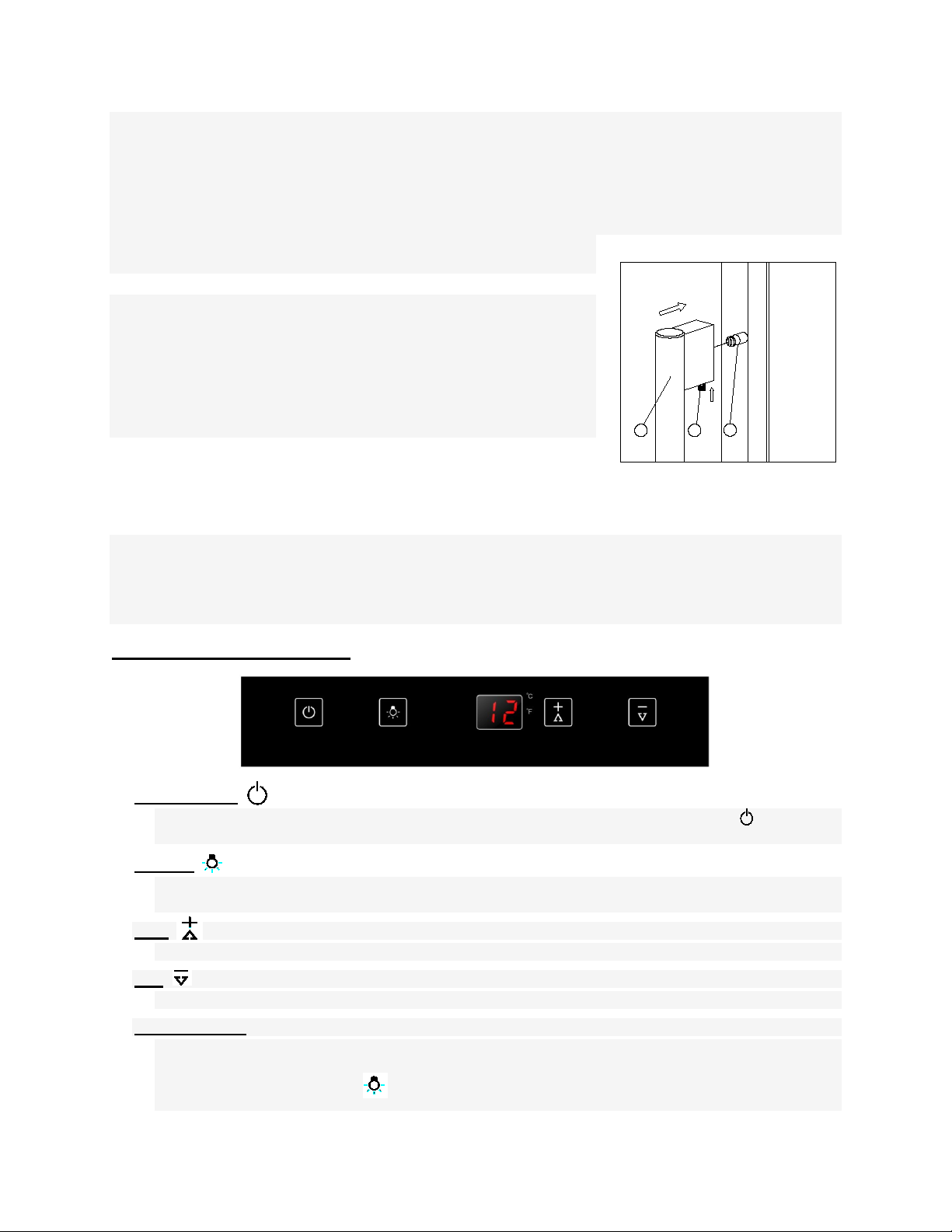

INSTALLING THE ST AINL ES S STEEL HANDLE

This appliance includes a stainless steel handle that is not required to
operate the unit. To install the handle, follow the instructions below:

Locate the handle 1 over the pins 3 of the door and tighten the handle
by screwing the Allen key grub screws 2.

OPERATING YOUR APPLIANCE

It is recommended you install the appliance in a place where the ambient temperature is between 72º and
78ºF (23º-26ºC). If the ambient temperature is above or below the recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions
may cause interior temperatures to fluctuate. The range of 36º-43ºF (2º-6ºC) may not be reached.

CONTROL PANEL

ON/OFF Power

To turn the appliance ON or OFF, touch the symbol and hold for 5 seconds.

Light

To control the function of the interior light (see INTERIOR LIGHT on page 10).

Up

To increase (warm) the set temperature by 1°C/1ºF.

Down

To decrease (cool) the set temperature by 1°C/1ºF.

ºF/ºC Selector

Select the temperature display setting in Fahrenheit or Celsius degree. To change the
temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the

Light

key for 5 seconds.
