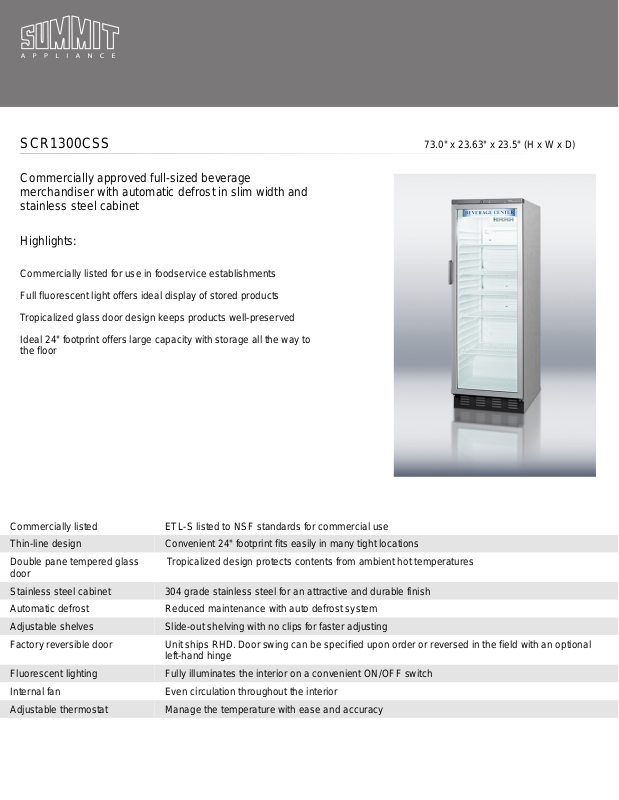

Summit SCR1300CSS Specification Sheet

SCR1300CSS 73.0" x 23.63" x 23.5" (H x W x D)

Commercially approved full-sized beverage
merchandiser with automatic defrost in slim width and
stainless steel cabinet

Highlights:

Commercially listed for use in foodservice establishments
Full fluorescent light offers ideal display of stored products
Tropicalized glass door design keeps products well-preserved
Ideal 24" footprint offers large capacity with storage all the way to

the floor

Commercially listed ETL-S listed to NSF standards for commercial use
Thin-line design Convenient 24" footprint fits easily in many tight locations
Double pane tempered glass

door
Stainless steel cabinet 304 grade stainless steel for an attractive and durable finish
Automatic defrost Reduced maintenance with auto defrost system
Adjustable shelves Slide-out shelving with no clips for faster adjusting
Factory reversible door Unit ships RHD. Door swing can be specified upon order or reversed in the field with an optional

Fluorescent lighting Fully illuminates the interior on a convenient ON/OFF switch
Internal fan Even circulation throughout the interior
Adjustable thermostat Manage the temperature with ease and accuracy

Tropicalized design protects contents from ambient hot temperatures

left-hand hinge

Specifications:

Height 73.0"
Width 23.63"
Depth 23.5"
Capacity 13.0 cu.ft.
Interior Height 1 62.5"
Interior Width 1 19.25"
Interior Depth 1 17.25"
Comp Step Height 8.0"
Comp Step Width 19.25"
Comp Step Depth 6.0"
Voltage/Frequency 115 V AC/60 Hz
US Electrical Safety UL
Amps 5.4
Reversible Factory Reversible
Door Swing RHD
Shelf Quantity 5
Adjustable Shelf true
Shelf Type Wire
Defrost Type Automatic
Light true
Thermostat Type Dial
Fan Type Interior
Freon Type R134a
High Side PSI 430.0
Freon Oz 5.2
Low Side PSI 87.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
