Summit SCR1156 User Manual

Write Serial No. (on lower left corner of

BEVERAGE MERCHANDISERS

Model Nos.: SCR610BL / SCR1156

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

inside cabinet) here:

____________________________________________

Instruction Manual

Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

2

TABLE OF CONTENTS

Appliance Safety

3

Important Safeguards

3-4

Location of Parts

5

Installation Instructions

6-8

Before Using Your Appliance

6

Installation of Your Appliance

6

Electrical Connection

6-7

Extension Cord

7

Reversing the Door Swing of Your Appliance

7-8

Installing the Stainless Steel Handle

8

Operating Your Appliance

8-10

Control Panel

8-9

Sabbath Mode

9

Temperature Memory Function

9

Temperature Alarm / Door Alarm

9-10

Door Lock

10

Defrosting

10

Care and Maintenance

11

Cleaning Your Beverage Merchandiser

11

Power Failure

11

Vacation Time

11

Moving Your Appliance

11

Energy-Saving Tips

11

Troubleshooting

12-13

Limited Warranty

14

3

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messa ges in this manual and on your appliance. Always read
and obey all safety messages.

This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".

DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.

WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.

All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instruct i ons are not followed.

IMPORTANT SAFEGUARDS

Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual caref ul ly. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:

• Plug into a grounded 3-prong outlet, do not remov e grounding prong, do not use an adapter, and do
not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit servi ng onl y your appliance be provided. Use receptacles

that cannot be turned off by a switch or pull ch ai n.

• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of t he unit is
disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in

electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommende d i n
this manual. All other servicing should be referred to a quali fied technician.

• This appliance is CFC- and HFC-free and contains a small quantity of Isobutane (R600a ) w hich is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase t he
greenhouse effect. Care must be taken during transportation and setting up of the appliance that no
parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.

4

In the event of any damage:

- Avoid open flames and anything that creates a spark,

- Disconnect from the electrical power line,

- Air the room in which the appliance is located for several minutes and

- Contact the Service Dep artment for advice.

• The more coolant there is in an appliance, the larger the room it should be installed in. In the event of

a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in
the appliance is stated on the data plate inside the appliance. It is hazardous for anyone other than an
Authorized Service Person to carry out servicin g or repairs to this appliance.

• Take serious care when handling, moving, and using the appliance to avoid either damaging the

refrigerant tubing or increasing the risk of a leak.

• Replacing component parts and servicing shall be done by factory authorized service personnel so as

to minimize the risk of possible ignition due to incorrect parts or improper service.

FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. F ail ure to do so can result in back or other
injury.

• To ensure proper ventilation for your appliance, t he front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatu res above 60°F (16°C) and below 90°F (32°C). This unit
must be installed in an area protected from the elements, such as wind, rain, water spray or drips.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all elect rical, water and drain connections in accordance with

state and local codes. A standard electrical s uppl y (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Cod e and local codes and ordinances, is required.

• Do not kink or pinch the power supply cord of the appliance.

• The size of the fuse (or circuit breaker) should b e 15 amperes.

• It is important that the appliance be leveled in ord er to work properly. You may need to make several

adjustments to level it.

• All installations must be in accordance with local plumbing code r equi rements.

• Make certain that the pipes are not pinched, kin ked or damaged during installation.

• Check for leaks after connection.

• Never allow children to operate, play with or crawl inside the appliance.

• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch

of cubes must be discarded.

• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.

• Use this appliance only for its intended purpo se as described in this Owner’s Manual.

• Keep fingers out of the “pinch point” areas. Clearances between the doors and between the doors

and cabinet are necessarily small. Be careful closi ng doors when children are in the area.

Risk of child entrapment!

Child entrapment and suffocation are not proble m s of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in t he garage a few days”.

Before discarding your old refrigerator:

• Take off the doors

• Leave the shelves in place so that children may not easily climb inside.

- SAVE THESE INSTRUCTIONS -

5

MODEL SCR610BL

Door

Shelves (4)

Handle

Security
Lock

Ventilation
Grille

Adjustable
Legs

Cabinet

Digital control panel

Door

Shelves (3)

Handle

Security
Lock

Ventilation

Grille

Adjustable
Legs

MODEL SCR1156

LOCATION OF PARTS

Digital control panel

Cabinet

6

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE

• Remove the exterior and interior packing.

• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours.

This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

• Install the handle on the door. (See page 8.)

INSTALLATION OF YOUR APPLIANCE

• The appliances are designed for either built-in or free-standing installation.

• WARNING: Do not store or install the appliance outdoors.

• CAUTION

perishable food, medicine or other medical products.

• Place your Beverage Merchandiser on a floor that is strong enough to support it when it is fully loaded.

To level the unit, adjust the front leveling legs.

• For freestanding installation, 5 inches (127 mm) of space between the back and sides of the unit are

suggested, which allows the proper air circulation to cool the compressor and condenser for energy
saving. Even for built-in installation, it is a must to keep 2 to 3 mm of space (about 1/10") on each side
and at the top, and 2 inches (51 mm) at the back, to ensure proper service access and venti l ation. And
the air vent at the front of the appliance must never be covered or blocked in any way.

• NOTE: It is recommended that you do not install the appliance near an oven, radiator or other heating

source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Don’t install in a location where the temperature will fall below 60°F (16°C). For best
performance, do not install the appliance behind a cabinet door or block the base grille.

• Avoid locating the unit in moist areas.

• Plug the Beverage Merchandiser into an exclusive, properly grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning
power and/or grounding should be directed toward a certified electrician or an authorized service
center.

ELECTRICAL CONNECTION

Improper use of the grounded plug can result in t he risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electri cian or an authorized service center.

This appliance should be properly grounded for your saf ety. The power cord of this appliance is equipped
with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of
electrical shock.

Do not under any circumstances cut or remove the third (ground) prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it

: This appliance is designed for storing and cooling beverages and drinks. Do not store

WARNING

7

replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or

dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating

that matches the rating label on the appliance. This provides the best performance and also prevents
overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not
use an extension cord with this appliance. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

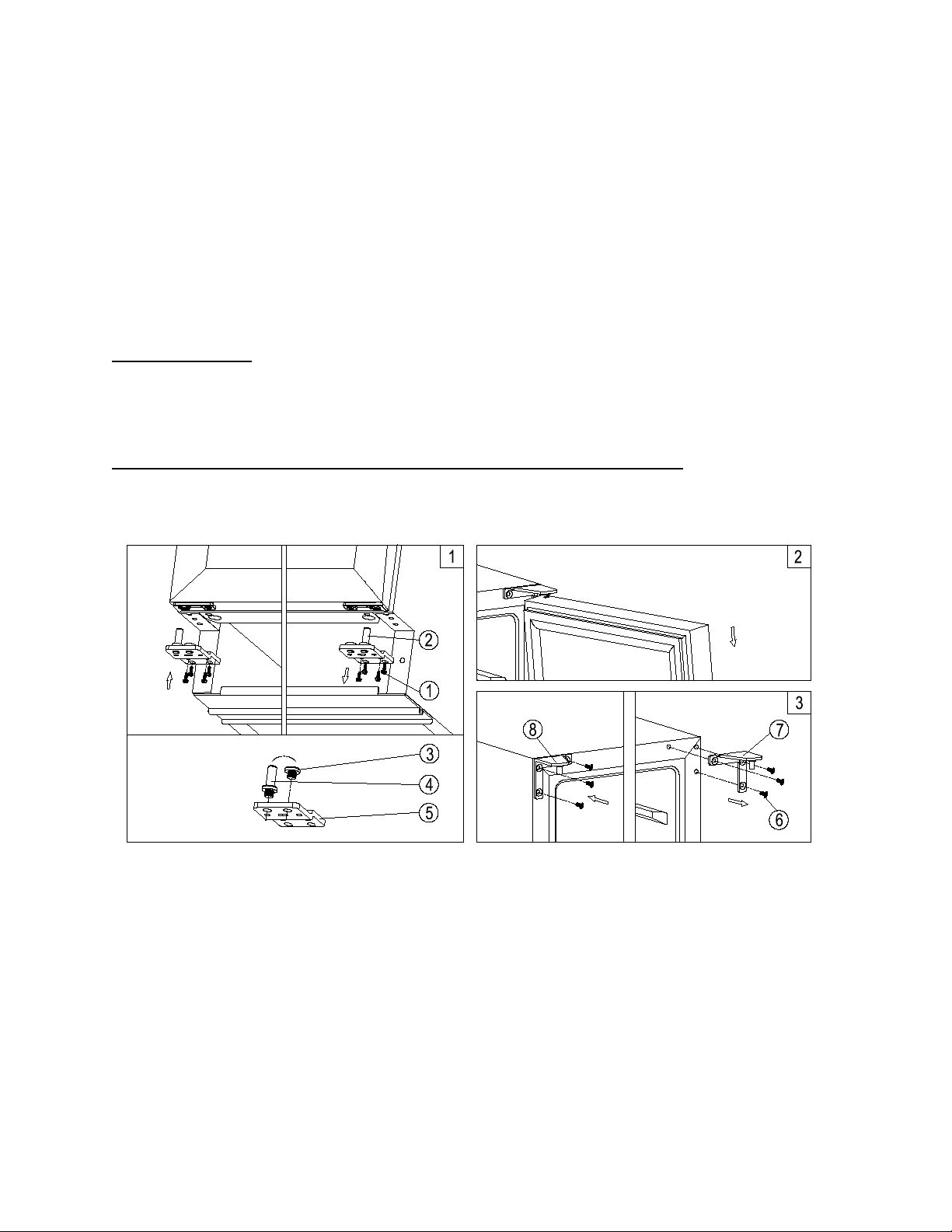

REVERSING THE DOOR SWING OF YOUR APPLIANCE (ONLY for SCR610BL)

This unit has the capability of the door opening from either the left or right side. The unit is delivered to
you with the door opening from the left side. Should you desire to reverse the opening direction, please
follow the reversal instructions shown below.

NOTE: All parts removed must be saved to allow the door swing to be reversed .

1. Remove the bottom hinge 2 by unscrewing the four lock screws 1. Be careful to hold the door firmly
after removing the screws. (Fig. 1)

2. Gently pull down to remove the door from the right top hinge and place it on a padded surface to
avoid the risk of damage. Then remove the right top hinge 7. (Figs. 2 & 3)

3. Unscrew and transfer pins 4 and 3 of the hinge plate t o the opposite side. (Fig. 1)

4. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on the right

hand side.

8

5. Screw the alternative left top hinge 8, included in the fittings, on the left hand side of cabinet. (Fig. 3)

1

2

3

6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the left
designated position and tighten it after the door is lev el ed. (Fig. 1)

7. Remove the handle from the left side of the door an d install it on the right side. (See next section.)

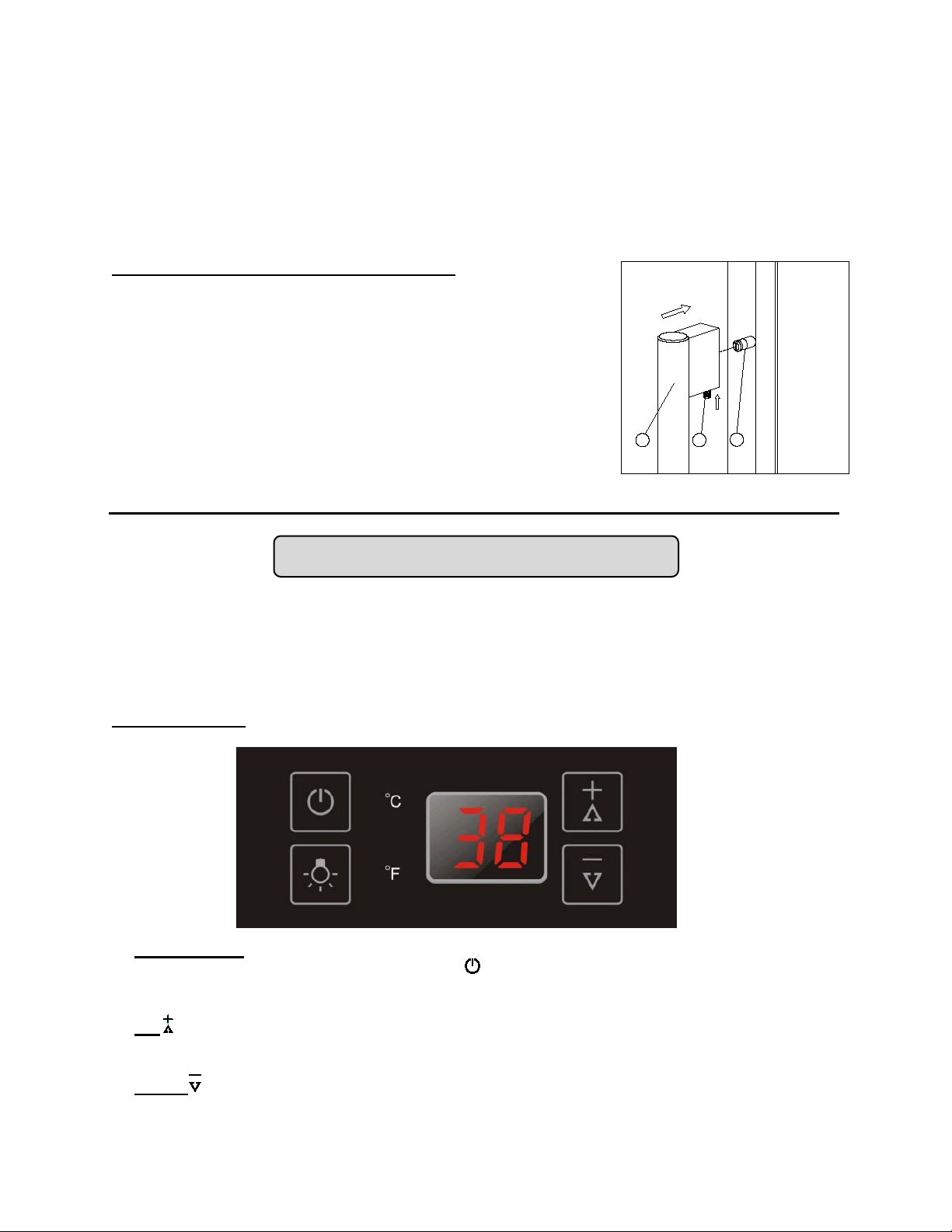

INSTALLING THE STAINLESS STEEL HANDLE

This appliance includes a stainless steel handle that is not required to
operate the unit. To install the handle, follow t he instructions below:

Locate the handle 1 over the pins 3 of the door and ti ghten the handle
by screwing in screws 2 with an Allen wrench.

OPERATING YOUR APPLIANCE

It is recommended that you install the appliance in a place where the ambient temperature is between 72º
and 78ºF (23º-26ºC). If the ambient temperature is above or below the recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extremely cold or hot
conditions may cause interior temperatures to fluctuate. The range of 36º-43ºF (2º-6ºC) may not be
reached.

CONTROL PANEL

ON/OFF Power

To turn the appliance ON or OFF, touch the symbol and hold for 5 seconds.
NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.

UP

Used to increase (warm) the set temperature by 1°C/1ºF.

DOWN

Used to decrease (cool) the set temperature by 1°C/1ºF.

9

Interior Light

The interior light makes it easy to view your item s. Touching the LIGHT symbol toggles between 2
modes of operation for the internal lights: functional (default) mode and showcase mode. If y ou are
in functional (default) mode, the lights wil l turn on only when the door is open. If you are in
showcase mode, the lights will be on whether or not the door is open.

ºF/ºC Selector

Select the temperature display in Fahrenhei t or Celsius degrees. To change the temperature from
Fahrenheit to Celsius or from Celsius to Fahre nhei t, press and hold the LIGHT key for 5 seconds.

Setting the Temperature Control

• You can set the temperature by touching the UP and DOWN symbols. When you push either of
the two buttons for the first time, the LED readout will show the original temperature set
previously. (The temperature preset at the f act ory is 38°F (3°C).

• The temperature you are setting will increase by one degree each time you touch the UP
symbol, and will decrease by one degree each time you touch the DOWN symbol.

• The range of the temperature control is from 36°F to 43°F.

• To view the set temperature at any time, touch the UP or DOWN symbol. The set temperature

will flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit
will reappear in the display window.

NOTE:

• If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before

SABBATH MODE

Sabbath mode is available for the observance of certain religious holidays. This mode turns off the
displays, interior light and audible alarms and prevents them from turning on again. Normal cooling
operations will still take place.

To initiate Sabbath mode, press the POWER and LIGHT keys at the same time for at least 5 seconds.
The indicator light will flash four times and confir m the Sabbath mode is ON.
Sabbath mode can be exit by repeating the above process. The Sabbath Mode will automatically exit
after 96 hours.

TEMPERATURE MEMORY FUNCTION

In the event of a power interruption (power surge, breaker switch, etc.), the unit can remember the
previous temperature settings. When power is recovered, the cabinet will return to the same set
temperature as before the power went off.

TEMPERATURE ALARM / DOOR A LARM

• An audible alarm sounds if the storage temperature i s not cold enough. The temperature display

restarting the unit. If you attempt to restart before this time delay, the unit will not start.

• When you use the unit for the first time or restart the unit after it has been shut off for a long
time, there could be a few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and is due to the length of the activation time.
There should not be a problem once the unit has been running for a few hours.

flashes at the same time.

10

• The cause of the temperature being too high may be:

- Warm items were placed inside

- Too much warm ambient air flowed in when rearr anging and removing contents

- Power failure for some time

- The appliance is faulty.

• The audible alarm is automatically silenced and t he temperature display stops flashing when the
temperature is sufficiently cold again.

• If the door has been left open for more than 60 seconds, the alarm will sound. Pressing the POWER
key once can switch off the audible alarm.

DOOR LOCK

Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the Instruction Manual. Insert the key into the

lock and turn it counterclockwise to unlock the d oor. To lock the door, do the reverse operation, making
sure the metal pin is engaged completely. Remov e the key and put it in a secure place for safekeeping.

DEFROSTING

• The unit defrosts automatically during normal operating conditions.

• The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in the

drainage channel behind the rear wall of the unit, and flows through the drainage hole into th e dri p tray
by the compressor where it evaporates.

• However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or high

humidity location. If this frost pattern does not clear within 24 hours, your unit will require manual
defrosting.

11

CARE AND MAINTENANCE

CLEANING YOUR BEVERAGE MERCHANDISER

• Turn off the power, unplug the appliance, and rem ove all items, including shelves.

• Wash the inside and outside surfaces as well as the shelves with warm water and mild liquid

detergent. Rinse well and wipe dry with a clean soft cloth.

• Wring excess water out of the sponge or cloth when cleaning the area where the controls are located,
or any electrical parts.

• Do not use steel wool or a steel brush on the stainless steel.

CAUTION:
Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the prop er steps to protect the contents.

VACATION TIME

• Short vacations: Leave the appliance operating duri ng vacations of less than three weeks.

• Long vacations: If the appliance will not be used for several months, remove all items and turn off

the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
door open slightly, blocking it open if necessary.

MOVING YOUR APPLIANCE

1. Remove contents.

2. Securely tape down all loose items (shelves) inside your appliance.

3. Turn the adjustable legs up to the base to avoid damage.

4. Tape the door shut.

5. Be sure the appliance stays secure in the upright position during transportation. Also, protect the
outside of the appliance with a blanket or similar item .

ENERGY-SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat-producing
appliances and out of direct sunlight.

• Ensure that the unit is adequately ventilat ed. Never cover air vents.

• Do not keep the door open any longer than necessary.

.

12

TROUBLESHOOTING

PROBLEM

POSSIBLE CAUSE

REMEDY

fuse.

dusty.

the dust.

replace.

panel.

Switch on the light.

adjustable feet.

The rattling noise may come from the flow of the ref rigerant, which is normal. As each

cause popping and crackling noises.

adjustable feet.

The shelves are out of position.

Check the shelves and refit correctly.

You can solve many common problems easily, sav i ng you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.

Troubleshooting Guide

Appliance
does not
operate.

Appliance is
not cold
enough.

Appliance
turns itself on
and off
frequently.

• Appliance is not connected to a power
source.

• The appliance is turned off.

• Tripped circuit breaker or a blown fuse.

• The temperature is not set correctly.

• The ambient temperature could require

a higher thermostat setting.

• The door was opened too often.

• The door was not closed completely.

• Door is not hermetically-sealed.

• The condenser is too dirty.

• The ventilation opening is blocked or too

• The room temperature is higher than

average.

• A large number of bottles has been
added to the unit.

• The door is opened too often.

• The door is not closed completely.

• The door gasket does not seal properly.

• Connect the appliance.

• Switch on the appliance.

• Switch on circuit breaker or replace

• Check the set temperature.

• Raise the setting of the thermostat.

• Do not open the door more often than

necessary.

• Close door properly.

• Check the door seal and clean or

replace.

• Clean the condenser when necessary.

• Clear the obstructions and clean off

• Put the appliance in a cooler place.

• Let appliance to work for a while until

the set temperature has been
reached.

• Do not open the door more often than
necessary.

• Close door properly.

• Check the door seal and clean or

• Appliance is not connected to a power

The light does
not work.

Vibrations

The appliance
seems to
make too
much noise.

The door will
not close
properly.

supply.

• Tripped circuit breaker or a blown fuse.

• The light was switched off on the control

• The appliance is not properly level.

cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your
appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls may

• The appliance is not properly level. • Level the appliance with the

• The appliance is not properly level.

• The door was reversed and not properly

installed.

• The gasket is dirty.

•

• Connect the appliance.

• Switch on circuit breaker or replace

fuse.

•

• Level the appliance with the

• Level the appliance with the

adjustable feet.

• Check the door hinge and reassemble
correctly.

• Clean the door gasket.

•

13

Display “E0”,

“E7” indicates door switch failure.

added to the unit.

display.

instead. That is normal.

“E1”. “E2”,
“E3”, “E4”,
“E5” or “E7”.

The alarm
sounds and
the
temperature
display
flashes.

• “E0” indicates a communication error for
3 zone models.

• “E1” or “E2” indicates that the air
temperature sensor has failed.

• “E3” or “E4” indicates that the defrost
sensor in the evaporator has failed.

• “E5” indicates defrost heater failure.

•

• Has the appliance door been open for

longer than 60 seconds? If not, then the
temperature has risen higher or fallen
lower than the temperature that has
been set. This could be due to:

• The appliance door being opened too
often.

• The ventilation opening being covered
or too dusty.

• A lengthy interruption to the power
supply.

• A large number of bottles has been

• Call for service.

• If yes, close the door.

• Do not open the door more often than

necessary.

• Clear the obstructions and clean the
dust.

• Leave the appliance to work for a
while until the set temperature has
been reached.

The icon “--” is
lit up and
flashing in the
temperature

• The display temperature is out of range. • Only temperatures within the range
0~99°F/-9~37°C can be displayed. If
the temperature is not within this
range, the icon “--” will be displayed

14

LIMITED WARRANTY

FELIX STORCH, INC.

For parts and accessory ordering,

WARNING! This product may contain chemicals known to the state of California

ONE-YEAR LIMITED WARRANTY

Within the 48 conti guous United St ates, for one ye ar from the date of purchase, when this appli ance is operat ed and
maintained according to instruct ions attached to or furnished with the produ ct, warrantor will pay f or factory-specified
parts and repair labor to correct defects in m aterials or workmanship. Service must be provided by a designated
service company. Outside the 48 states, all parts are warranted for one year from manufact uring defects. Plastic
parts, shelves and cabinets are warranted to be manufactured to commercially acceptabl e standards, and are not
covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.

2. Replacement does not inclu de labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or

repair fuses or to correct wiring or plumbing.

2. Service calls to repair or repl ace appliance light bulbs or broken shelves. Consumable parts (such as filters) are

excluded from warranty coverage.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installat ion,

installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.

4. Replacement parts or repair labor costs for units operated outside the United States.

5. Repairs to parts or systems resulting from unauthorized modificat ions made to the appliance.

6. Expenses for travel and transportation for product service in remote locations.

7. The removal and reinstallat i on of your appliance if it is installed in an inaccessible location or is not installed in

accordance with published inst all ation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENT IAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

to cause cancer or birth defects or other reproductive harm. For more
information, visit: www.summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in

concentrations higher than threshold limits: NONE

770 Garrison Avenue

Bronx, NY 10474

Phone: [phone]

Fax: [phone]

www.summitappliance.com

troubleshooting and helpful hints, visit:

www.summitappliance.com/support

Printed in China

Revised August 2014
