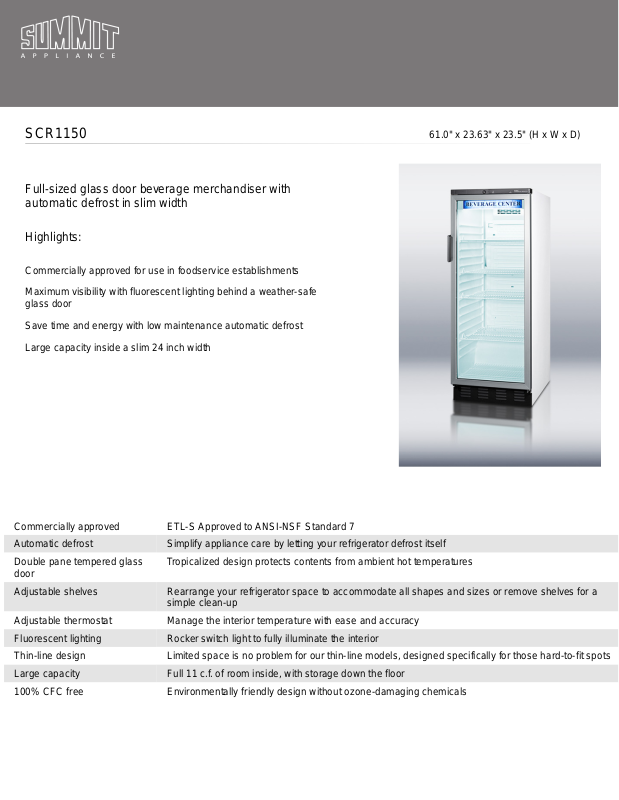

Summit SCR1150 Brochure

SCR1150 61.0" x 23.63" x 23.5" (H x W x D)

Full-sized glass door beverage merchandiser with
automatic defrost in slim width

Highlights:

Commercially approved for use in foodservice establishments
Maximum visibility with fluorescent lighting behind a weather-safe

glass door
Save time and energy with low maintenance automatic defrost
Large capacity inside a slim 24 inch width

Commercially approved ETL-S Approved to ANSI-NSF Standard 7
Automatic defrost Simplify appliance care by letting your refrigerator defrost itself
Double pane tempered glass

door
Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a

Adjustable thermostat Manage the interior temperature with ease and accuracy
Fluorescent lighting Rocker switch light to fully illuminate the interior
Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
Large capacity Full 11 c.f. of room inside, with storage down the floor
100% CFC free Environmentally friendly design without ozone-damaging chemicals

Tropicalized design protects contents from ambient hot temperatures

simple clean-up

Specifications:

Height 61.0"
Width 23.63"
Depth 23.5"
Capacity 11.0 cu.ft.
Ext Depth with Handle 25.5"
Interior Height 1 48.0"
Interior Width 1 20.5"
Interior Depth 1 17.5"
Comp Step Height 4.5"
Comp Step Width 20.5"
Comp Step Depth 5.0"
Shipping Weight 187.0 lbs.
Weight 175.0 lbs.
Amps 5.4
Voltage/Frequency 115 V AC/60 Hz
US Electrical Safety UL
Door Swing RHD
Shelf Quantity 5
Adjustable Shelf true
Shelf Type Wire
Wheel Quantity 2
Defrost Type Automatic
Depth with door at 90° 46.13"
Thermostat Type Dial
Light true
Condensor Location N/A
Level Legs Quantity 2
High Side PSI 430.0
Freon Type R134a
Low Side PSI 87.0
Freon Oz 4.1
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation UL-S
