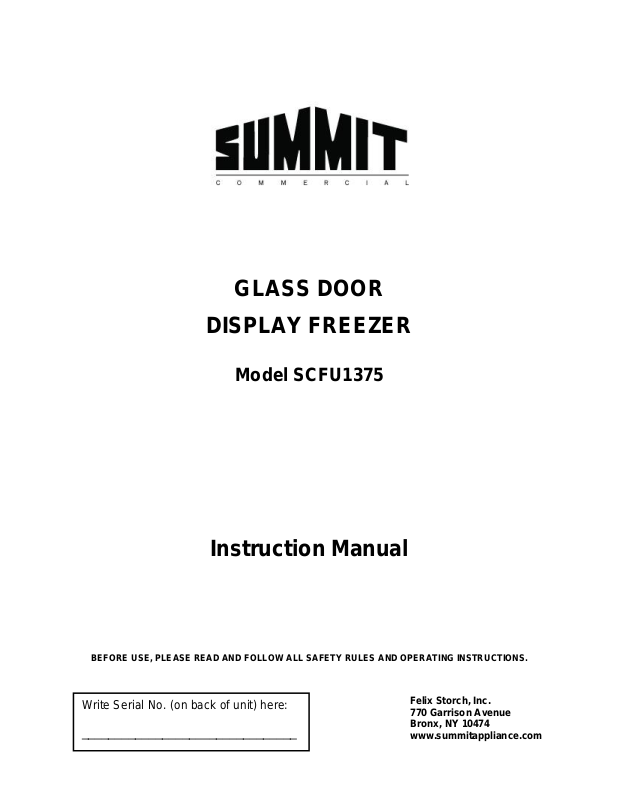

GLASS DOOR
DISPLAY FREEZER
Model SCFU1375
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial No. (on back of unit) here:
________________________________
Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
TABLE OF CONTENTS
Appliance Safety .........................................................................
Important Safeguards ................................................................
Location of Parts ........................................................................
Technical Information ................................................................
Installation Instructions .............................................................
3
3-4
5
5
6-7
Moving and Installing Your Appliance .................................... 6
Electrical Connection .............................................................. 6-7
Extension Cord ....................................................................... 7
Operating Your Appliance .........................................................
Turning On the Unit ................................................................ 7
7-8
Storing Items in the Unit ......................................................... 7
Setting and Adjusting the Temperature .................................. 7-8
Defrosting the Unit .................................................................. 8
Interior Lights .......................................................................... 8
Door Lock ............................................................................... 8
Shelves ................................................................................... 8
Normal Phenomena ................................................................ 8
Care and Maintenance ...............................................................
9-10
Cleaning Your Appliance ........................................................ 9
Bulb Replacement .................................................................. 9
Power Failure ......................................................................... 9
Vacation Time ......................................................................... 9
Moving Your Appliance .......................................................... 10
Power Cord ............................................................................. 10
Energy Saving Tips ................................................................ 10
Troubleshooting .........................................................................
Limited Warranty ........................................................................
11
12
2
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This
is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".
Danger means that failure to heed this safety
statement may result in severe personal injury or
death.
Warning means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
All safety messages will al
and let you know what can happen if the instructions are not followed.
ert you about the potential hazard, tell you how to reduce the chance of injury,
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
3
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
FOLLOW
Use two or more people to move and install the appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit
must be installed in an area protected from the elements, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 15 amperes.
It is important that the appliance be leveled in order to work properly. You may need to make several
adjustments to level it.
All installations must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched, kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
Use this appliance only for its intended purpose as described in this Instruction Manual.
Keep fingers out of the “pinch point” areas. Clearances between the doors and between the doors
and cabinet are necessarily small. Be careful closing doors when children are in the area.
WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in the garage a few days”.
Before discarding your old refrigerator:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
- SAVE THESE INSTRUCTIONS -
4
Side cover for light box
Lighted logo panel
Digital temperature control
and display
Ventilation grid
Fan
Shelves
(7 total)
Cabinet
Caster
LOCATION OF PARTS
Light switch
Door assembly
TECHNICAL INFORMATION
Model: SCFU1375
Installation: Free-standing
Capacity: 11.2 cubic feet
Electrical Input: 115V AC / 60Hz
Rated Current: 1.4A
Storage Temperature: -0.4°F (-18°C)
Refrigerant: R404A (350 g)
Unit weight: 220 lbs
Unit Dimensions: 23.6"W x 24.8"D x 74.8"H
5
INSTALLATION INSTRUCTIONS
This appliance is meant for free-standing installation; it should not be built-in.
Do not put heavy items on top of the unit.
Do not store or install the appliance outdoors.
This appliance is designed for the storage and display of frozen items
Do not use it to store medicine or other medical products.
Moving and Installing Your Appliance
When transporting, keep the unit vertical as much as possible. The angle between the vertical and the
side of the unit should never exceed 40° since this could affect the compressor and result in abnormal
operation.
After unpacking the unit, remove the packing materials and place the unit on a level and sturdy floor
near a power socket.
Leave at least 4" of space between the back of the unit and the wall for ventilation. Leave space
enough to allow the door to swing open 160°.
Keep the unit away from heat sources and avoid direct sunlight.
Never place the unit in a location with high humidity or where water can reach it.
It is recommended that you install the appliance in a place where the ambient temperature is between
72º and 78ºF (23º-26ºC). If the ambient temperature is above or below the recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in extreme
cold or hot conditions may cause interior temperatures to fluctuate.
Electrical Connection
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electrician or an authorized service center.
Never ground the unit through a gas pipe, tap water pipe or the grounded wire of a single-phase
power supply.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped
with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third (ground) prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into an exclusive, properly grounded wall outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best performance and also
prevents overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug
6
the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not
use an extension cord with this appliance. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.
OPERATING YOUR APPLIANCE
Turning On the Unit
Connect the unit to a power supply to turn it on. Be sure the door is closed. After half an hour, the
temperature inside the cabinet should have cooled down; if so, the unit is operating normally.
CAUTION
If power is disconnected, do not try to restart the unit within 5 minutes of the power disconnect.
Do not make holes through the walls of the unit in order to mount other items.
Avoid splashing water on the unit.
Do not store medical or pharmaceutical products in the unit.
Keep the keys of the door lock out of the reach of children.
Storing Items in the Unit
The shelves can be adjusted to suit your needs. (See Shelves below.)
Avoid putting a large number of items into the unit at one time. Leave some space around the items to
allow an unimpeded flow of cold air.
To lower energy consumption and prolong the life of the compressor, avoid putting warm food into the
unit. Only foods at room temperature or already frozen should be put into the freezer.
Setting and Adjusting the Temperature
The digital temperature controller is just below the lighted logo panel, toward the left. The control panel is
illustrated below:
7
The first LE
temperature, and will be off when the compressor is off. The second LED (dripping snowflake) indicates
the defrost status of the unit (see below).
To set the operating temperature of the unit
1. Press the SET button. The set temperature is displayed, in degrees Celsius.
2. Press the ▲ or ▼ button to modify and store the displayed value.
3. Press the SET button to exit the adjustment. The interior temperature will be displayed after 10
D (snowflake) will be on while the compressor is running to bring the unit down to the desired
:
seconds.
Defrosting the Unit
Defrosting is automatic in the SCFU1375, but if you wish to defrost the unit manually, press the
DEFROST button (just above SET) and hold it for 6 seconds. When defrost is completed, press the
DEFROST button again and hold for 6 seconds; this will stop the defrosting process. The DEFROST
LED will be on while defrosting is in progress, and will be off when defrosting stops.
Interior Lights
The light switch just below the logo panel controls both the lighting of the panel and the interior of the
cabinet. Pressing the switch turns both lights on and off.
Door Lock
Your unit is provided with a lock and set of keys.
The keys are located inside the plastic bag that contains the Instruction Manual. Insert the key into the
lock and turn it clockwise to unlock the door. To lock the door, do the reverse operation, making sure the
metal pin is engaged completely. Remove the key and put it in a secure place for safekeeping, out of the
reach of children.
Shelves
There are a total of seven (7) adjustable shelves. To change the position of a shelf, first remove all shelf
contents. Then tap the shelf from below at each of the four corners to free it from the brackets holding it
in place. Remove the brackets from the slotted vertical posts and reset them at the height you desire for
the new shelf position. Snap the shelf onto the four brackets and replace the shelf contents.
Normal Phenomena
You may notice the following phenomena happening with your appliance. They are normal and should
not be a cause for alarm.
You may hear a sound like water flowing. This is refrigerant flowing through the pipes.
The compressor, condenser or the region of the unit near the door feel warm, or even hot.
Under conditions of high humidity, moisture forms on the outer cabinet or door. This can be wiped
away with a clean, soft, dry cloth.
8
CARE AND MAINTENANCE
Cleaning Your Appliance
Turn off the power, unplug the appliance, and remove all items, including shelves.
Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of
baking soda to a quart of water).
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area where the controls are located,
or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a
clean soft cloth. Do not get the electrical controls below the logo panel wet.
Do not use steel wool or a steel brush on the stainless steel.
Wipe off the condenser (on the back of the unit) regularly to keep it well ventilated.
Keep the door gasket clean. The gasket can be removed and then remounted after cleaning. Putting
a little talcum powder on the magnetic surface of the gasket will prolong its service life.
CAUTION:
Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury
Bulb Replacement
.
When the bulbs behind the lighted logo panel must be replaced,
1. Remove the left side cover of the light-box. (You'll need a Phillips screwdriver.)
2. Slide out the logo panel.
3. Replace the bulb or bulbs and reinsert the logo panel.
4. Replace the left side cover.
NOTE: Replacement bulbs can be purchased directly from SUMMIT by calling us at 1-800-932-4267 or
by going to our website at www.summitappliance.com/support. Have the model number,
SCFU1375, handy.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect the contents.
Vacation Time
Short vacations: Leave the appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
door open slightly, blocking it open if necessary.
9
Moving Your Appliance
1. Remove all items from the shelves.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Tape the door shut.
4. Be sure the appliance stays secure in the upright position during transportation. Also, protect the
outside of the appliance with a blanket or similar covering.
Power Cord
If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid an electrical hazard.
Energy Saving Tips
The appliance should be located in the coolest area of the room, away from heat producing
appliances and out of direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Do not keep the door open any longer than necessary.
10
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
Troubleshooting Guide
PROBLEM POSSIBLE CAUSE SOLUTION
The unit does not operate.
Abnormal operation of the
compressor, or a buzzing
sound
Compressor is on too long
and there is no frost on the
surface of the evaporator
There is frost or ice on the
walls of the inner cabinet
and the internal
temperature is too low. The
compressor operates
continuously.
The internal temperature is
too high and the
compressor operates
continuously.
Bad plug connection
Tripped circuit breaker or blown fuse
The supplied voltage is out of the
rated range.
Refrigerant circuit has a leak or
blockage.
Thermostat does not work.
The thermostat sensor has separated
from the wall of the cabinet.
Poor heat dissipation and ventilation
of condenser
Too much warm food was put in at
one time.
Door was opened frequently or held
open too long.
Reconnect the plug to the power
source.
Reset circuit breaker or replace fuse.
Disconnect the power supply
immediately and reconnect it to an
acceptable voltage source. If the
power supply is erratic, you will need
a voltage stabilizer.
Call for a qualified service technician.
Call our service department for repair
suggestions.
Tighten the screw of the sensor
cover.
Improve the ventilation.
Take out some of the food.
Decrease frequency and length of
time of door opening.
The appliance is not level.
Pipes near the compressor are
Operation is too noisy.
If the unit develops problems that cannot be solved by referring to the chart above, do
not try to dismantle the unit yourself. This could void your warranty. Instead, refer to
an authorized service center or call SUMMIT Customer Service at 1-800-932-4267.
touching.
The unit is too close to a wall or
cabinet.
11
Level the appliance.
Carefully separate the touching pipes.
Move the unit away from the adjacent
surface.
LIMITED WARRANTY
g
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and
maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified
parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated
service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic
parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not
covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or
repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
WARNING! This product may contain chemicals known to the state of California
to cause cancer or birth defects or other reproductive harm. For more information,
visit: www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in concentrations
her than threshold limits: NONE.
hi
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (718) 842-3093
www.summitappliance.com
12
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Loading...
