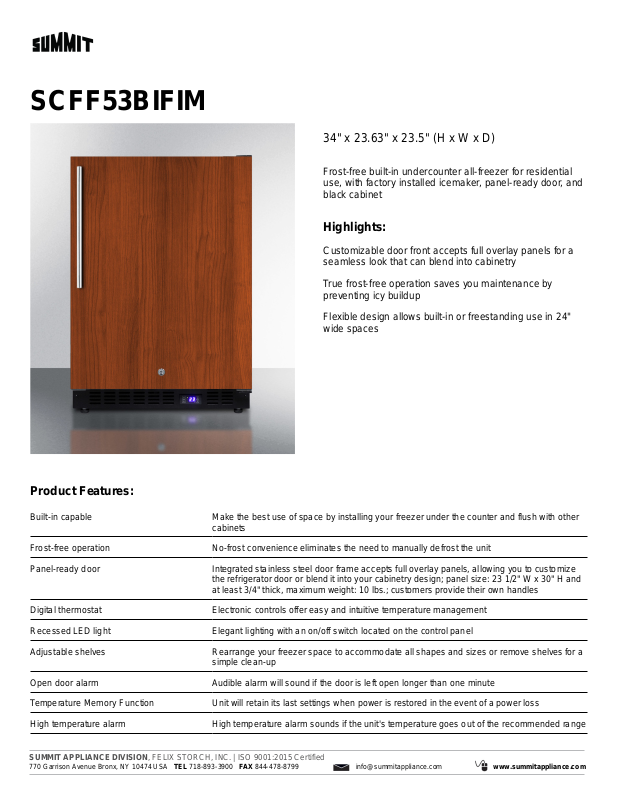

Summit SCFF53BIFIM Specification Sheet

SCFF53BIFIM

34" x 23.63" x 23.5" (H x W x D)

Frost-free built-in undercounter all-freezer for residential
use, with factory installed icemaker, panel-ready door, and
black cabinet

Highlights:

Customizable door front accepts full overlay panels for a
seamless look that can blend into cabinetry

True frost-free operation saves you maintenance by
preventing icy buildup

Flexible design allows built-in or freestanding use in 24"
wide spaces

Product Features:

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other

cabinets
Frost-free operation No-frost convenience eliminates the need to manually defrost the unit
Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize

the refrigerator door or blend it into your cabinetry design; panel size: 23 1/2" W x 30" H and

at least 3/4" thick, maximum weight: 10 lbs.; customers provide their own handles
Digital thermostat Electronic controls offer easy and intuitive temperature management
Recessed LED light Elegant lighting with an on/off switch located on the control panel
Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a

simple clean-up
Open door alarm Audible alarm will sound if the door is left open longer than one minute
Temperature Memory Function Unit will retain its last settings when power is restored in the event of a power loss
High temperature alarm High temperature alarm sounds if the unit's temperature goes out of the recommended range

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SCFF53BIFIM Specifications:

Overview

Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Energy Usage/Year 390.0kWh/year
Amps 0.9
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0

ETL-C

Exterior
