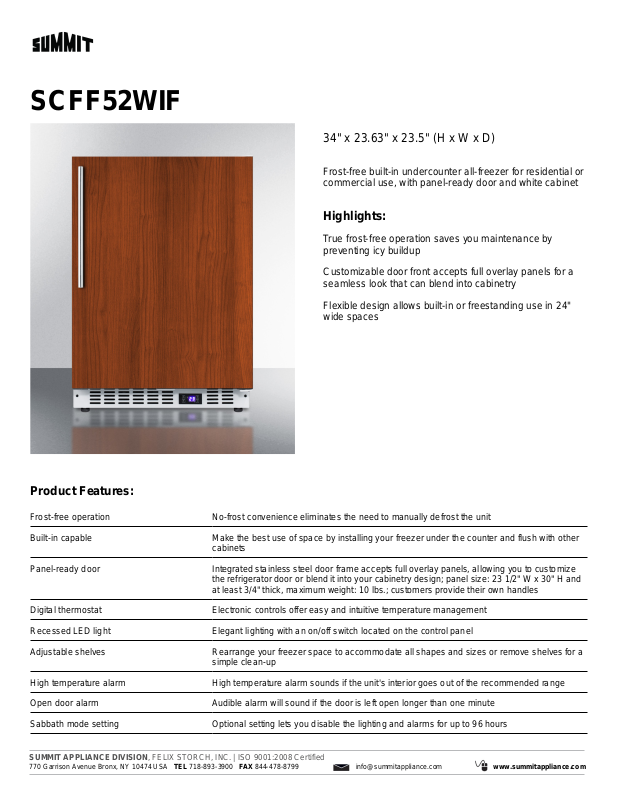

Summit SCFF52WIF Instruction Manual

SCFF52WIF
34" x 23.63" x 23.5" (H x W x D)
Frost-free built-in undercounter all-freezer for residential or commercial use, with panel-ready door and white cabinet
Highlights:
True frost-free operation saves you maintenance by preventing icy buildup
Customizable door front accepts full overlay panels for a seamless look that can blend into cabinetry
Flexible design allows built-in or freestanding use in 24" wide spaces
Product Features:
Frost-free operation No-frost convenience eliminates the need to manually defrost the unit Built-in capable Make the best use of space by installing your freezer under the counter and flush with other
cabinets
Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize
the refrigerator door or blend it into your cabinetry design; panel size: 23 1/2" W x 30" H and
at least 3/4" thick, maximum weight: 10 lbs.; customers provide their own handles Digital thermostat Electronic controls offer easy and intuitive temperature management Recessed LED light Elegant lighting with an on/off switch located on the control panel Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a
simple clean-up High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range Open door alarm Audible alarm will sound if the door is left open longer than one minute Sabbath mode setting Optional setting lets you disable the lighting and alarms for up to 96 hours
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 info@summitappliance.com www.summitappliance.com
SCFF52WIF Specifications:
Overview
Height of Cabinet 34.0" (86 cm) Width 23.63" (60 cm) Depth 23.5" (60 cm) Depth with Handle 25.35" (64 cm) Depth with door at 90° 45.63" (116 cm) Capacity 4.72 cu.ft. (134 L) Defrost Type Frost-Free Door Panel-Ready Cabinet White US Electrical Safety ETL Canadian Electrical
Safety Sanitation ETL-S Energy Usage/Year 390.0kWh/year Amps 0.8 Voltage/Frequency 115 V AC/60 Hz Weight 88.0 lbs. (40 kg) Shipping Weight 98.0 lbs. (44 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years
Freezer
Door Swing RHD Reversible Factory Reversible Interior Height 26.0" (66 cm) Interior Width 19.0" (48 cm) Interior Depth 16.0" (41 cm) Shelf Type Chrome Shelf Qty 3 Adjustable Shelves Yes Thermostat Type Digital Interior Light Yes Fan Type Interior and
Refrigerant Type R600a Refrigerant Amount 1.24 oz. High Side PSI 270.0 Low Side PSI 106.0
ETL-C
Exterior
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 info@summitappliance.com www.summitappliance.com
