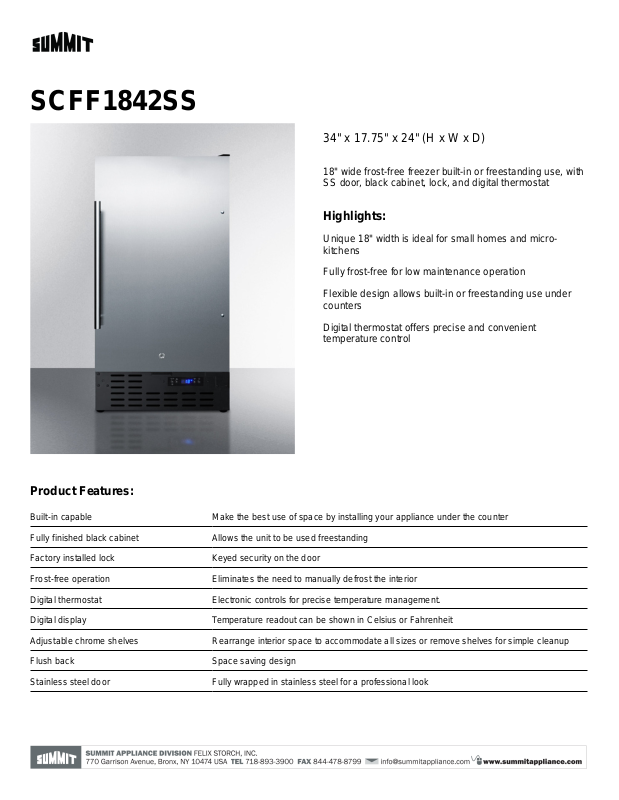

Summit SCFF1842SS Instruction Manual

SCFF1842SS

34" x 17.75" x 24" (H x W x D)

18" wide frost-free freezer built-in or freestanding use, with
SS door, black cabinet, lock, and digital thermostat

Highlights:

Unique 18" width is ideal for small homes and micro­kitchens

Fully frost-free for low maintenance operation
Flexible design allows built-in or freestanding use under

counters
Digital thermostat offers precise and convenient

temperature control

Product Features:

Built-in capable Make the best use of space by installing your appliance under the counter
Fully finished black cabinet Allows the unit to be used freestanding
Factory installed lock Keyed security on the door
Frost-free operation Eliminates the need to manually defrost the interior
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back Space saving design
Stainless steel door Fully wrapped in stainless steel for a professional look

SCFF1842SS Specifications:

Overview

Height 34.0"
Width 17.75"
Depth 24.0"
Depth with Handle 25.75"
Depth with door at 90° 40.0"
Capacity 2.7 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Energy Usage/Year 378.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs.
Shipping Weight 110.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 23.5"
Interior Width 12.75"
Interior Depth 16.75"
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and

Refrigerant Amount 3.9
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 4
Compressor Step

Height
Compressor Step Width 12.75"

ETL-C

Exterior

4.5"

Compressor Step
Depth

4.5"
