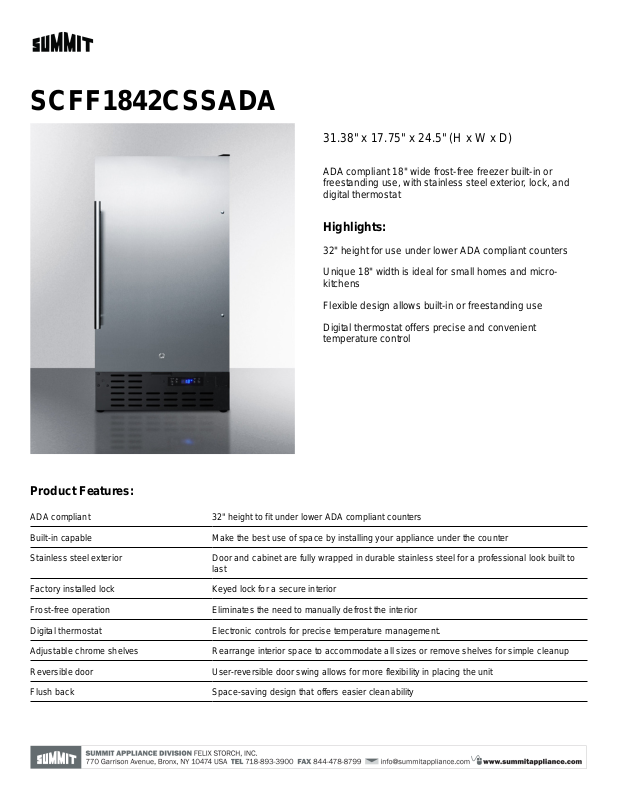

Summit SCFF1842CSSADA Instruction Manual

SCFF1842CSSADA

31.38" x 17.75" x 24.5" (H x W x D)

ADA compliant 18" wide frost-free freezer built-in or
freestanding use, with stainless steel exterior, lock, and
digital thermostat

Highlights:

32" height for use under lower ADA compliant counters
Unique 18" width is ideal for small homes and micro-

kitchens
Flexible design allows built-in or freestanding use
Digital thermostat offers precise and convenient

temperature control

Product Features:

ADA compliant 32" height to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
Stainless steel exterior Door and cabinet are fully wrapped in durable stainless steel for a professional look built to

last
Factory installed lock Keyed lock for a secure interior
Frost-free operation Eliminates the need to manually defrost the interior
Digital thermostat Electronic controls for precise temperature management.
Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Reversible door User-reversible door swing allows for more flexibility in placing the unit
Flush back Space-saving design that offers easier cleanability

SCFF1842CSSADA Specifications:

Overview

Height 31.38"
Width 17.75"
Depth 24.5"
Depth with Handle 25.75"
Depth with door at 90° 40.0"
Capacity 2.7 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Energy Usage/Year 378.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs.
Shipping Weight 110.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 23.5"
Interior Width 12.75"
Interior Depth 16.75"
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and

Refrigerant Type R134a
Refrigerant Amount 3.9
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 4
Compressor Step

Height
Compressor Step Width 12.75"

ETL-C

Exterior

4.5"

Compressor Step
Depth

4.5"
