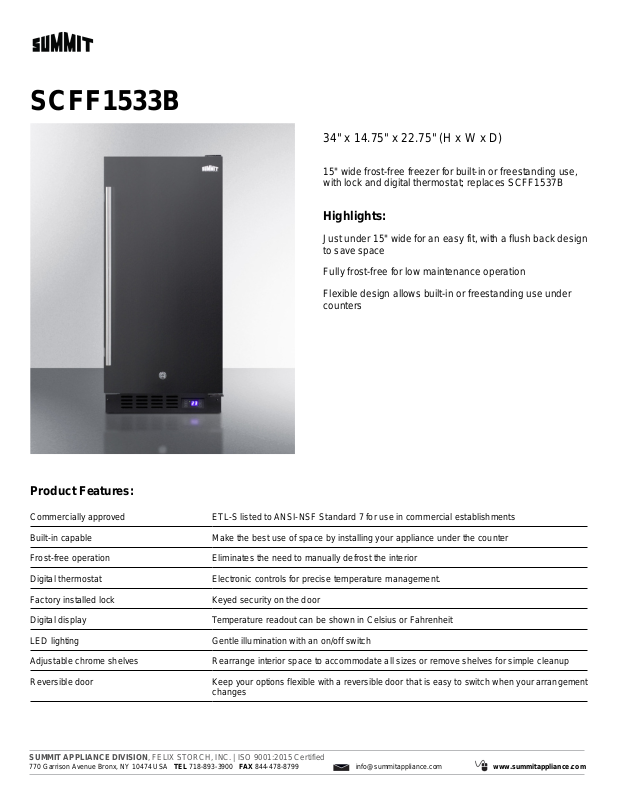

Summit SCFF1533B Specifications

SCFF1533B

34" x 14.75" x 22.75" (H x W x D)

15" wide frost-free freezer for built-in or freestanding use,
with lock and digital thermostat; replaces SCFF1537B

Highlights:

Just under 15" wide for an easy fit, with a flush back design
to save space

Fully frost-free for low maintenance operation
Flexible design allows built-in or freestanding use under

counters

Product Features:

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Built-in capable Make the best use of space by installing your appliance under the counter
Frost-free operation Eliminates the need to manually defrost the interior
Digital thermostat Electronic controls for precise temperature management.
Factory installed lock Keyed security on the door
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination with an on/off switch
Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement

changes

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SCFF1533B Specifications:

Overview

Height of Cabinet 34.0" (86 cm)
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 2.45 cu.ft. (69 L)
Defrost Type Frost-Free
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 320.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 63.0 lbs. (29 kg)
Shipping Weight 73.0 lbs. (33 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 25.25" (64 cm)
Interior Width 10.25" (26 cm)
Interior Depth 16.38" (42 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 0.88 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Compressor Step Height 3.63" (9 cm)

ETL-C

Exterior

Compressor Step Width 10.25" (26 cm)
Compressor Step Depth 4.63" (12 cm)
Temperature Range -11°F to 11°F
