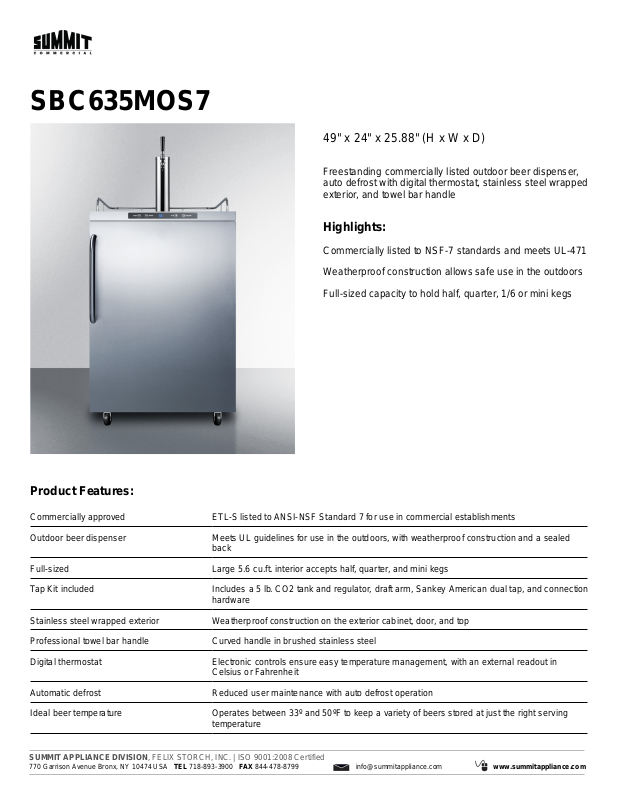

Summit SBC635MOS7 Instruction Manual

SBC635MOS7

49" x 24" x 25.88" (H x W x D)

Freestanding commercially listed outdoor beer dispenser,
auto defrost with digital thermostat, stainless steel wrapped
exterior, and towel bar handle

Highlights:

Commercially listed to NSF-7 standards and meets UL-471
Weatherproof construction allows safe use in the outdoors
Full-sized capacity to hold half, quarter, 1/6 or mini kegs

Product Features:

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Outdoor beer dispenser Meets UL guidelines for use in the outdoors, with weatherproof construction and a sealed

back
Full-sized Large 5.6 cu.ft. interior accepts half, quarter, and mini kegs
Tap Kit included Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American dual tap, and connection

hardware
Stainless steel wrapped exterior Weatherproof construction on the exterior cabinet, door, and top
Professional towel bar handle Curved handle in brushed stainless steel
Digital thermostat Electronic controls ensure easy temperature management, with an external readout in

Celsius or Fahrenheit
Automatic defrost Reduced user maintenance with auto defrost operation
Ideal beer temperature Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving

temperature

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SBC635MOS7 Specifications:

Overview

Height of Cabinet 49.0" (124 cm)
Width 24.0" (61 cm)
Width with Door Open 25.25" (64 cm)
Depth 25.88" (66 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 180.0 lbs. (82 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Beer Dispenser

Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Number of Taps 1
Thermostat Type Digital
Refrigerant R600a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0" (71 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.0" (48 cm)
Wheel Qty 4
Surface Stainless Steel
Temperature Range 33º to 50º F

ETL-C
