Summit SBC635MNCF, SBC635MCF, SBC635MCMTWIN User Manual

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Keep proof of original sales date (such as your sales slip) with this manual to establish the warranty period. Write the Model and Serial Numbers below. You’ll find them on a plate located either on the back of the appliance or on an interior wall.

__________________________________________________

COFFEE DISPENSERS

Models:

SBC635MCF

SBC635MNCF

SBC635MCMTWIN

SBC635M7CF

SBC635M7NCF

SBC635M7CMTWIN

Use and Care Guide

SBC635MBICF

SBC635MBINCF

SBC635MBICMTWIN

SBC635MBI7CF

SBC635MBI7NCF

SBC635MBI7CMTWIN

TABLE OF CONTENTS

Important Safeguards .................................................................................. 2 – 4

Note on Model Number Suffixes ........................................................................ 4

Location of Parts ................................................................................................ 5

Before Using for the First Time ........................................................................ 5

Coffee Dispenser Accessories ......................................................................... 6

Coffee Dispenser Assembly ....................................................................... 7 – 9

Caster assembly ....................................................................................... 7

Guardrail installation .................................................................................. 7

Coffee tap installation ................................................................................ 7

N2 regulator installation ....................................................................... 8 – 9

Placement and Installation ...................................................................... 10 – 14

Choosing the right place ......................................................................... 10

Installation ............................................................................................... 10

Applications ................................................................ ............................. 10

Connecting to power supply .................................................................... 10

Reversing the door swing ........................................................................ 11

Installation of accessories ............................................................... 12 – 14

Operation .................................................................................................. 15 – 17

Control panel ........................................................................................... 15

Setting the temperature ........................................................................... 15

Switching between Celsius and Fahrenheit ............................................ 15

‘Rapid cooling’ function ........................................................................... 15

Automatic defrosting ............................................................................... 16

Error prompts .......................................................................................... 16

Normal functioning .................................................................................. 16

Dispensing coffee ............................................................................ 16 – 17

Maintenance of the Coffee Dispenser ............................................................ 17

Cleaning .................................................................................................. 17

Out of service .......................................................................................... 17

Transporting the unit ............................................................................... 17

Troubleshooting ............................................................................................... 18

Limited Warranty .............................................................................................. 19

IMPORTANT SAFEGUARDS

WARNING!

To reduce the risk of fire, electric shock or injury when using this appliance, follow these basic precautions:

1. Read all instructions before using the appliance.

2. The appliance must be correctly connected to the power supply.

3. Immediately replace worn power cords, loose plugs and faulty power outlets.

4. Do not operate your appliance in the presence of explosive fumes.

5. Disconnect the appliance from the power supply before cleaning or repairing it. Only a qualified technician should repair it.

6. Never stand on top of or inside this appliance, or swing on the door. Avoid putting weight on top of the appliance.

7. To reduce likelihood of injury, do not let children play with this appliance.

8. Do not operate the valve control unless the cylinder is completely installed and connected.

9. Do not attempt to repair or replace any part unless this is recommended in this Use and Care Guide. Leave other service matters to qualified technical personnel.

10. Keep packing materials away from children as they could become a choking hazard.

11. Do not spray or flush the coffee dispenser with water, and avoid keeping it in a damp place since this could damage the electrical insulation.

DANGER! Risk of child entrapment! Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will "just sit at the curb for a few days."

Before discarding your old appliance:

 Take off the door.  Leave the shelves in place so that children may not easily climb

inside.

 This appliance is CFC- and HFC-free and contains small quantities of

Isobutane (R600a) which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. Care must be taken during transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.

In the event of any damage:

- Avoid open flames and anything that creates a spark,

- Disconnect from the electrical power line,

- Air the room in which the appliance is located for several minutes, and

- Contact the Service Department for advice.

 The more coolant there is in an appliance, the larger the room it should be

installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in the appliance is stated on the data plate on the back of the appliance. It is hazardous for anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance.

 Take serious care when handling, moving, and using the appliance to avoid

either damaging the refrigerant tubing or increasing the risk of a leak.

 Replacing component parts and servicing shall be done by factory authorized

service personnel so as to minimize the risk of possible ignition due to incorrect parts or improper service.

SAFETY PRECAUTIONS REGARDING ELECTRICAL MATTERS

1. Do not pull on the power cord when unplugging the machine. Grasp the plug firmly and pull it straight out of the socket. Do not pull the plug with wet hands.

2. Keep the power cord at the back of the appliance to avoid tripping accidents or damage to the cord.

3. If the power cord is damaged or frayed, it must be replaced by a qualified service professional.

4. Use only a standard three-hole grounded power socket rated above 10A. The socket should not be shared with other appliances.

5. Be sure the plug fits firmly into the socket and that the socket is grounded.

6. The use of an extension cord is NOT recommended.

7. The coffee dispenser requires an AC power supply of 110~120V/60Hz. The fuse or circuit breaker should be rated at 15A.

8. If the leakage of a combustible gas is detected, turn off the gas valve and open the doors and windows. To reduce the risk of fire caused by a spark, do not pull out the plug of the coffee dispenser or of any other electrical device.

LOCATION RECOMMENDATIONS

1. INDOOR USE ONLY. DO NOT ATTEMPT TO USE OUTDOORS.

2. UNLESS THE MODEL NUMBER OF YOUR COFFEE DISPENSER

CONTAINS THE LETTERS “BI” (BUILT-IN), THIS APPLIANCE IS INTENDED FOR UPRIGHT, FREE-STANDING USE ONLY. Do not install in cabinet or enclosed space.

3. Get the most out of your coffee dispenser! To maximize efficiency and long

life, use near a proper electrical outlet and ensure that there is adequate ventilation and clearance around the unit. If your model is not intended for built-in installation (“BI”), allow at least 4 inches clearance around all sides of the coffee dispenser.

4. Avoid locations where this unit will be in contact with heating elements or

Tips to save energy and maintain optimum performance:

When positioning this unit: If used freestanding, allow 4 inches of clearance on top, at the sides and in the rear for sufficient airflow.

Do not use under a bar or counter unless your model is intended for built-in installation (“BI” in model number).

direct sunlight.

NITROGEN (N2) SAFETY PRECAUTIONS, WARNINGS & DANGER NOTICES

1. DANGER! Nitrogen is a potentially dangerous gas. Canisters or cylinders

are under pressure and proper handling is essential for safety. Familiarize yourself with canister installation and replacement before operating this unit. HANDLE WITH CARE. Never jostle, toss or treat cylinders roughly. If you experience headache or difficulty breathing, a leak may be occurring; open windows and doors to ventilate the area and leave immediately.

2. INTENDED FOR UPRIGHT, FREE-STANDING USE ONLY. Do not install in

cabinet or enclosed spaces.

3. Store N

cylinders away from heat or explosive gases. Keep in a cool, dry

space (lower than 70°F) and chain canisters upright to avoid tipping or knocking. Always wear gloves and safety glasses when around chemicals.

4. Review and follow instructions for changing N

cylinders. NEVER CONNECT

A NITROGEN CANISTER DIRECTLY TO THE UNIT. To avoid potential explosion that could result in grave injury or even death, ALWAYS CONNECT THE CANISTER TO THE N2 REGULATOR. There are two safety valves, located separately. One is in the regulator and one on the N2 canister. DO NOT REMOVE VALVES, AND DO NOT EXCEED 50 PSI.

DO NOT ATTEMPT TO REFILL N2 CANISTERS! Refills are available where most canisters are sold (see page 8 for more information).

SAVE THESE INSTRUCTIONS

NOTE on Model Number suffixes:

NCF: for nitro-infused cold brew coffee CF: for “flat” cold brew coffee CMTWIN: for both types 7: Commercially listed to NSF-7 standards BI: for built-in installation

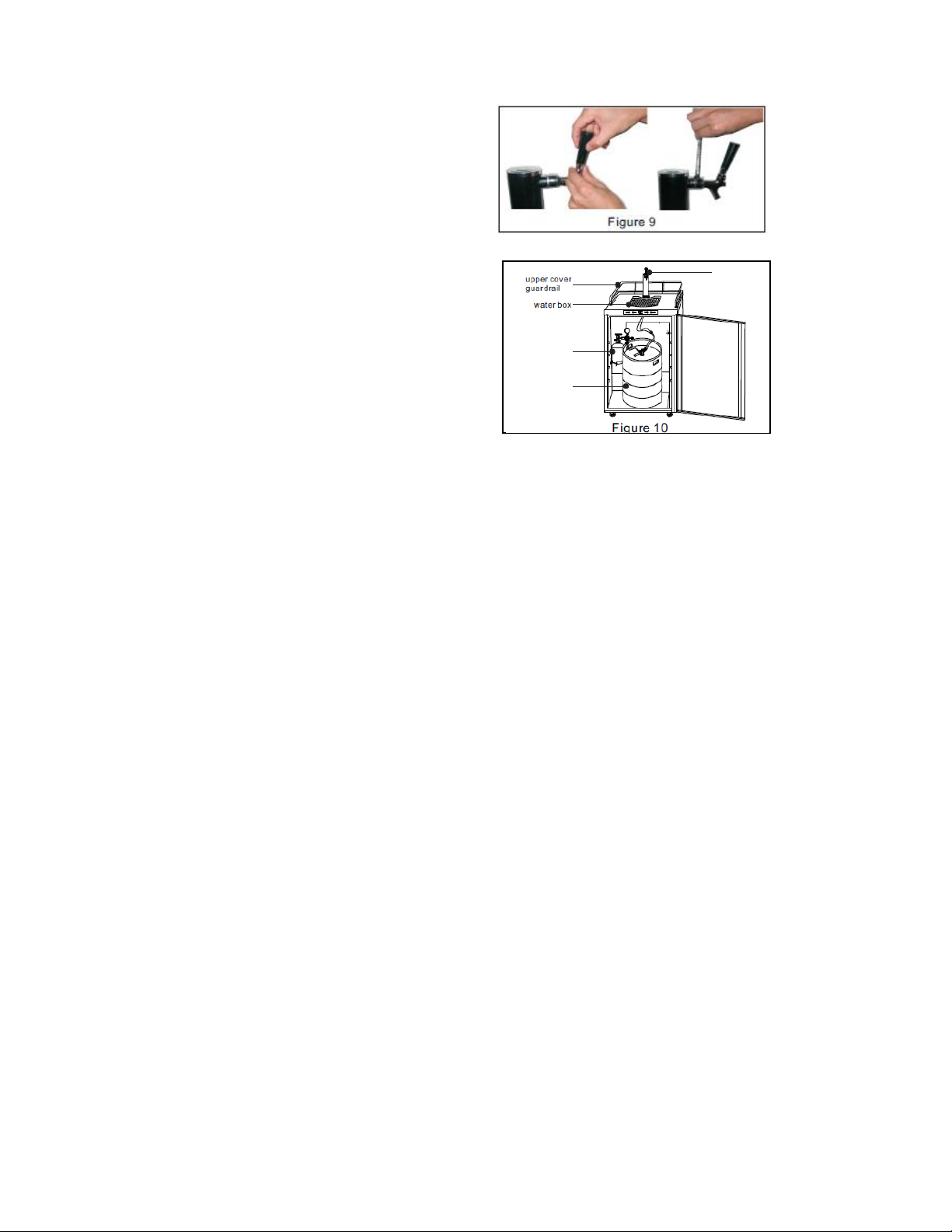

LOCATION OF PARTS

Coffee tower assembly

Upper cover guardrail

Drip tray

Display and control panel

Evaporator

Ball valve

Coffee keg

Door

Bottom pad

Caster

Top cover

Cabinet

N2 regulator valve

N2 gas cylinder

N2 tank supporter

Control board device

Compressor

chamber cover

BEFORE USING FOR THE FIRST TIME

These models are designed for dispensing coffee only, and are not recommended for storing perishable foods such as meats or dairy products.

After casters are attached and before connecting the appliance to the power supply, leave it standing for at least 8 to 10 hours. This allows the refrigerant to drain back into the compressor and reduces the risk of malfunctions in the cooling system caused by shipping.

Clean the appliance thoroughly, especially the interior. (See Maintenance of the Coffee Dispenser.) Proper grounding must be ensured to reduce the risk of shock and fire. Do not cut or remove the grounding plug!

TIPS FOR SAVING ENERGY

Try not to open the door too often, especially when the weather is hot and humid. Once you open the door, close it as soon as possible.

If possible, disconnect the power before changing a keg of coffee. Keep the unit out of direct sunlight. Periodically, check that the coffee dispenser seals well and that none of the

contents prevent the door from closing.
